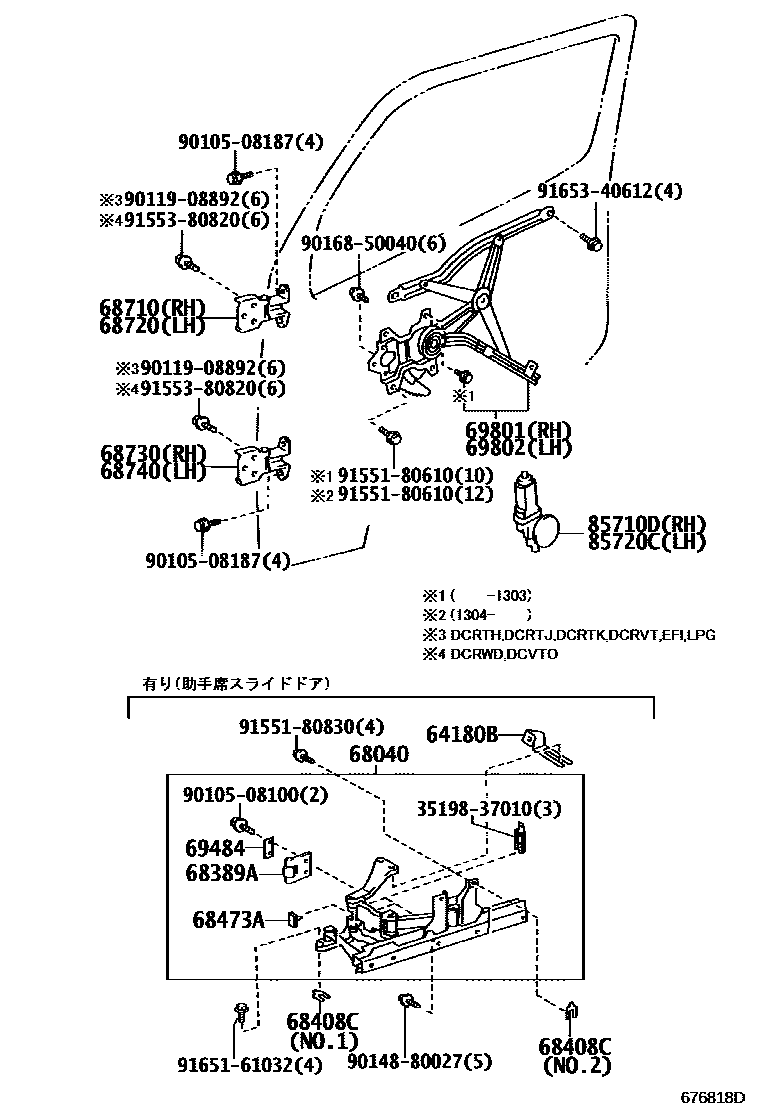

FRONT DOOR WINDOW REGULATOR & HINGE

64180BBRACKET ASSY, REAR MOUNTING, LH

68040GUIDE ASSY, FRONT SLIDE DOOR

main68040-37010

main68040-37011

68389ASPRING, SLIDE DOOR CATCH, LH

68408CSHIM

68473ASTOPPER, FRONT SLIDE DOOR ARM

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-37020iXZU600..IV5201107-201705

main68710-37020iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201605

main68710-37031iXZU605..IV5201905

main68710-37031iXZU600..IV5201107-201705

main68710-37031iBZU600..IV5201107

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-37010iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV4,IV6,IV7)201107-201705

main68730-37031iXZU605..IV5201905

main68730-37031iXZU600..IV5201107-201705

main68730-37031iBZU600..IV5201107

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37010iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV4,IV6,IV7)201107-201705

main68730-37010iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201605

main68730-37031iXZU600..IV5201107-201705

main68730-37031iBZU600..IV5201107

main68730-37031iXZU605..IV5201905

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-37020iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201705

main68710-37031iBZU600..IV5201107

main68710-37031iXZC605..T5..6FC..IV3;XZU600,650,685..MTM..IV6;XZU600,650..T4..20T..IV3;XZU605..T4..5F..30T..IV3;XZU600..6FC..(20T,30T)..IV6;XZU655..SCB..T4..DCRTJ..IV3;XZU655,675..201107-201705

main68710-37031iXZU605..IV5201905

69484BASE, SLIDE DOOR OPEN CATCH, LH

main69484-37010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37062iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201303

sub69801-37063

main69801-37063iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201304-201705

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37062iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201303

sub69802-37063

main69802-37063iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201304-201705

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37080iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-201705

main85710-37090iBZU600201107-201605

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37110iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-201705

main85720-37120iBZU600201107-201605

3519837010CLAMP, TRANSAXLE APPLY TUBE, NO.4

main35198-37010

9010508100

main90105-08100

9010508187

main90105-08187

9011908892

main90119-08892

9014880027

main90148-80027

9016850040

main90168-50040

9155180610

main91551-80610

9155180830

main91551-80830

9155380820

main91553-80820

9165161032

main91651-61032

9165340612

main91653-40612

25 parts on this diagram · 1 diagram in section
