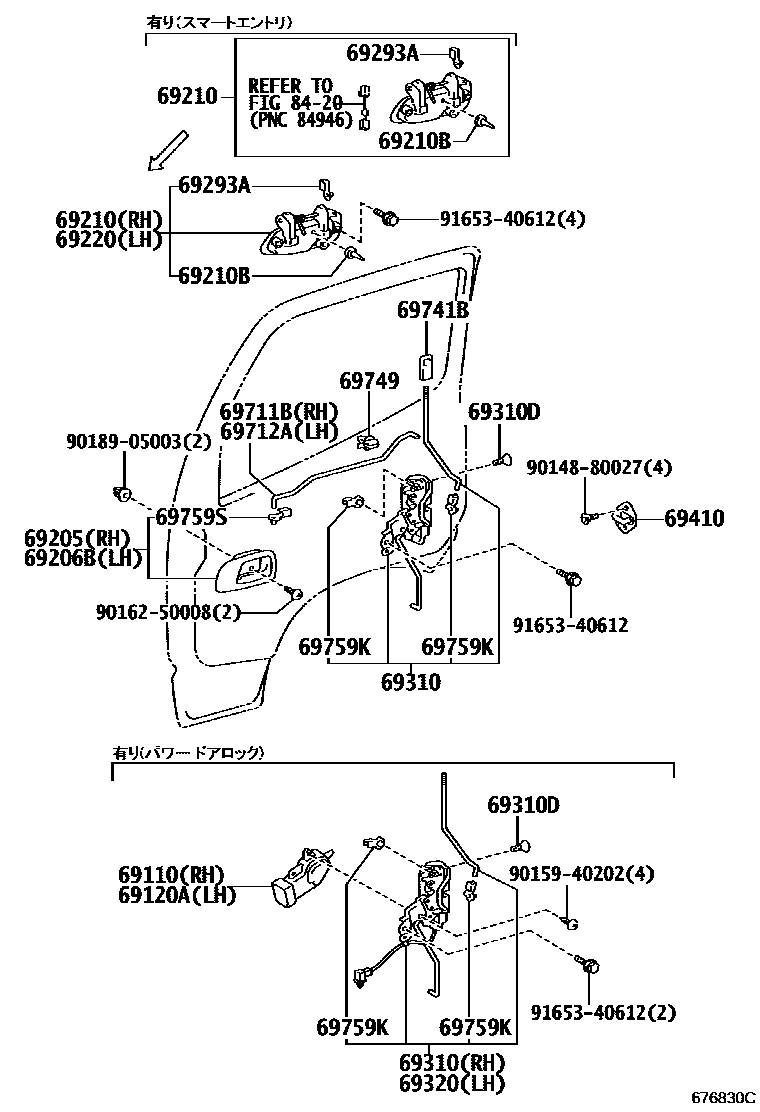

FRONT DOOR LOCK & HANDLE

0001 1 0002 1������� ����������

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-37050iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3201107-201505

main69110-37060iXZU675..T4..DCRTK..IV3;XZU605..T4..5F..30T..IV3;XZU605..SCB..T4..6FC..20T..IV3;XZU600..6FC..(20T,30T)..(IV5,IV6);XZU60#,640,650,685..MTM..(IV5,IV6)201107-201705

main69110-37110iXZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..DCRWD..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3201905

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-37050iBZU600201107

main69120-37060iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705

main69120-37110iXZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..DCRWD..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3201905

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-37010-B1iBZU600201107

GRAY,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-37010-B1iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201605

GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-37020iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201605

main69210-37030iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)201605-201705

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04015×4iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201505

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-37020iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,6201107-201705

main69220-37030iXZU605..IV5201905

main69240-37010iXZC605,XZU605,655,685,695..(DCB,VAN)..20T201605-201705

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201505

main69293-12060iBZU600201107

69310LOCK ASSY, FRONT DOOR, RH

main69310-37090iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201605

main69310-37070iXZU600,605,640,655,685,695..DCB201905

main69310-37080supersedes 69310-37090iXZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ)..(CBU,IV3)201705

69310DSCREW, DOOR LOCK

main90148-60049×6iBZU600,XZU600..IV5201107-201904

main90148-60082×6iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

69320LOCK ASSY, FRONT DOOR, LH

main69320-37060iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201505

main69320-37090iBZU600..IV5201107

main69320-37110iXZU650..20T;XZC600..5F..ST;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..W201107-201605

main69320-37160iXZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..DCRWD..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3201905

main69320-37190iXZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ)..(CBU,IV3)201605-201705

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iXZU600..IV5201107-201705

main69410-37020iXZU600..IV5201705

69711LINK, FRONT SLIDE DOOR KEY CYLINDER

main69711-37030iXZU605..IV5201905

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-37010iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201605

main69710-37010iXZU605..IV5201905

main69712-37041iXZU600..IV5201107-201705

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-12040-C0×2iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705

BLACK,TRIM1#

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070×2iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-20040iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705

main69759-20050iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,6201107-201705

main69759-24010iBZU600201107

main69759-24020iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201705

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-22040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

main69759-22050iBZU600201107

8420

9014880027

main90148-80027

9015940202

main90159-40202

9016250008

main90162-50008

9018905003

main90189-05003

9165340612

main91653-40612

25 parts on this diagram · 2 diagrams in section
