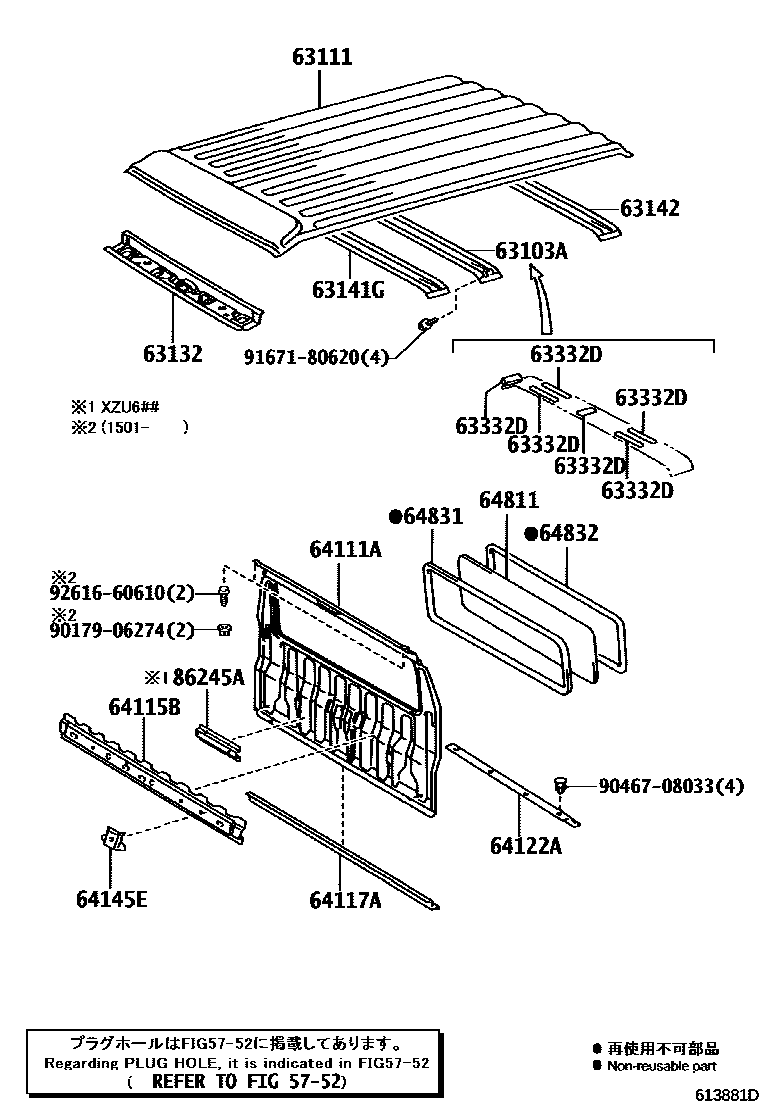

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1������������ 0005 1��������� 0006 1

5752

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-37030iXZC605..VAN201107-201403

sub63103-37031

main63103-37031iXZC605..03S201404-201705

main63103-37040iXZC605..03S201107-201705

main63103-37040iXZC605..03S201705

main63103-37040iXZC605..03S201107-201705

main63123-37010iTRC600,XZU605,655,685,695..DCB..20T201107-201403

sub63123-37011

main63123-37011iXZU605,655,685,695..DCB..20T201404-202004

63111PANEL, ROOF

main63111-37120iXZC600..5F..ST;XZU600..20T..IV3;XZU600..5F..20T..CBU;XZU600,640,650,685..MTM..IV6;XZU600..6FC..(20T,30T)..(CBU,IV6);XZC60#,610,630,675,XZU605,610,620,630,675..SCB..201107-201705

main63111-37131iXZU600,650..IV6;XZU60#,675..SCB..(T2,T4,T5)..(IV3,IV6);XZC60#,675,XZU640..(T2,T3,T4,T5)..(20T,40T)..WT..(IV3,IV6)201107-201111

sub63111-37132

main63111-37132iXZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU650..(20T,35T)..(CBU,IV3);XZU600..(DM6,T3)..(CBU,IV3,IV5,IV7);XZC645201112-201705

main63111-37132iTRC600..SCB..T4;TRU600..T4..IV3201112-201605

main63111-37140iXZU605,655,685,695..DCB..20T201107-201705

main63111-37150iXZU600,640,685..IV4201107-201705

main63111-37150iXZU600,640,685..DCRTK..IV4201705

main63111-37160iXZC605..06S201107-201705

main63111-37170iXZC605..03S201107-201705

main63111-37240iXZU600,640,685..IV4201107-201705

main63111-37311iXZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..IV3201107-201111

sub63111-37312

main63111-37311iXZU600..30T..IV3;BZU600,TRC600,TRU600,XZC645,655,XZU64#,65#,685,695..SCB..(T2,T3,T4)..IV3201107-201111

sub63111-37312

main63111-37312iXZC60#,675,XZU600,605,675..SCB..(T2,T4,T5)..WT..(DCRTH,DCRTJ,DCRTK)..IV3201112-201705

main63111-37312iXZU650..30T..IV3;XZU640..T4..6FC..IV3;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3201112-201705

main63111-37312iXZU650..30T..IV3;XZU640..T4..6FC..IV3;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3201209-201705

main63111-37312iXZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..IV3201209-201705

63132PANEL, WINDSHIELD HEADER, INNER

main63132-37071iTRC600..DM5;XZU600,640,650,685..IV6;TRC600,XZU655,685,695..DCB..20T;XZC60#,610,630,675,XZU60#,610,620,630,675..DM3,DM5,DM7,T2,T4,T5201107-201412

main63132-37072iXZU600..(DM6,T3)..(IV3,IV5,IV7);BZU600,TRC600,TRU600,XZC645,655,XZU64#,65#,685,695..SCB..(DM6,T2,T3,T4)..(IV3,IV5)201412-201604

sub63132-37073

main63132-37073iXZU600,640,685..DCRTK..IV4201708-201811

sub63132-37074

main63132-37073iXZU655,685,695..DCB..DCRTJ;XZU600..20T..DCRTJ..(CBU,IV3);XZU600,640,650,652,685..(DCRTK,DCRVT)..IV6;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCB,SCB)..(D201605-201811

sub63132-37074

main63132-37073iXZU600,640,650,685..IV6;XZU655,685,695..DCB..DCRTJ;XZC60#,610,630,675,XZU60#,610,620,630,675..DM3,DM5,DM7,T2,T4,T5201605-201705

sub63132-37074

main63132-37074iXZC605..03S201812

sub63109-37050

main63132-37074iXZC605..03S201812

sub63109-37050

main63132-37082iXZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..IV3201209-201412

main63132-37082iXZU600,650..IV6;XZU60#,675..SCB..(T2,T4,T5)..(IV3,IV6);XZC60#,675,XZU640..(T2,T3,T4,T5)..(20T,40T)..WT..(IV3,IV6)201107-201412

main63132-37082iXZU600..(DM6,T3)..(CBU,IV3,IV5,IV7);BZU600,TRC600,TRU600,XZC645,655,XZU64#,65#,685,695..SCB..(DM6,T2,T3,T4)..(CBU,IV3,IV5)201107-201412

main63132-37083iXZU600,650..IV6;XZU60#,675..SCB..(T2,T4,T5)..(IV3,IV6);XZC60#,675,XZU640..(T2,T3,T4,T5)..(20T,40T)..WT..(IV3,IV6)201412-201604

sub63132-37084

main63132-37083iXZU600..(DM6,T3)..(CBU,IV3,IV5,IV7);BZU600,TRC600,TRU600,XZC645,655,XZU64#,65#,685,695..SCB..(DM6,T2,T3,T4)..(CBU,IV3,IV5)201412-201604

sub63132-37084

main63132-37083iXZU600..(DM6,T3)..(CBU,IV3,IV5,IV7);BZU600,TRC600,TRU600,XZC645,655,XZU64#,65#,685,695..SCB..(DM6,T2,T3,T4)..(CBU,IV3,IV5)201412-201604

sub63132-37084

main63132-37084iXZU600..(DM6,T3)..(CBU,IV3,IV5,IV7);BZU600,XZC645,655,XZU640,645,650,655,685,695..SCB..(CBU,IV3,IV5)201605-201811

sub63132-37085

main63132-37084iXZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..IV3201605-201811

sub63132-37085

main63132-37084iXZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..IV3201605-201811

sub63132-37085

main63132-37084iXZU600..(DM6,T3)..(DCRTJ,DCRTK)..(CBU,IV3,IV5,IV7);XZC645,655,XZU640,645,65#,685,695..SCB..(DCRTJ,DCRTK)..(CBU,IV3)201605-201811

sub63132-37085

main63132-37085iXZC605,675,XZU605,675..SCB..(T2,T4,T5)..IV3201812-202108

sub63132-37086

main63132-37085iBZU600201812-202108

sub63132-37086

main63132-37085iXZU600,652..(DCRTK,DCRVT)..IV6;XZC605,675,XZU600,605,675..SCB..(T2,T4,T5)..(DCRTH,DCRTJ,DCRTK)..(IV3,IV6);XZC600,XZU602,640,642,650..(20T,35T,40T)..WT..(DCRTH,DCRTK201812-202108

sub63132-37086

main63132-37085iXZU600,652..(DCRTK,DCRVT)..IV6;XZC605,675,XZU600,605,675..SCB..(T2,T4,T5)..(DCRTH,DCRTJ,DCRTK)..(IV3,IV6);XZC600,XZU602,640,642,650..(20T,35T,40T)..WT..(DCRTH,DCRTK201812-202108

sub63132-37086

main63132-37091iXZU600,640,685..IV4201107-201412

main63132-37092iXZU600,640,685..IV4201412-201604

sub63132-37093

main63132-37093iXZU600,640,685..IV4201605-201708

main63132-37131iXZC605..VAN201107-201412

main63132-37132iXZC605..VAN201412-201604

sub63132-37133

main63132-37133iXZC605..03S201605-201811

sub63132-37134

main63132-37134iXZC605..03S201812

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63105-95901iXZC605..03S201107-201705

main63105-95901iXZC605..03S201107-201705

main63105-95901iXZC605..03S201705

main63141-26900iXZC605..03S201107-201705

main63141-37060iTRC600,TRU600..SCB..T4..IV3201107-201901

main63141-37060iXZU605,655,685,695..DCB..(DCRTH,DCRTJ)201705-201811

main63141-37061iBZU600..IV3,IV5201902

main63141-37061iXZU605,655,685,695..DCB..(DCRTH,DCRTJ)201812

main63141-37070iXZU600,650,652..IV6;XZU605,675..SCB..(T2,T4,T5)..(IV3,IV6);XZC605,675,XZU602,640,642..(T2,T3,T4,T5)..(20T,40T)..(IV3,IV6)201209-201705

main63141-37070iXZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3201107-201705

main63141-37070iTRC600..SCB..T4;TRU600..T4..IV3201107-201605

main63141-37070iXZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU650..(20T,35T)..(CBU,IV3);XZU600..(DM6,T3)..(CBU,IV3,IV5,IV7);XZC645201107-201705

main63141-37080iXZC605..06S201107-201705

main63141-37080iXZC605..03S201705

main63143-37040iXZU600,640,685..IV4201107-201705

63142REINFORCEMENT, ROOF PANEL, NO.2

main63105-37020iXZC605..03S201107-201705

main63105-37020iXZC605..03S201107-201705

main63105-37020iXZC605..03S201705

main63141-37140iXZU605,655,685,695..DCB..(DCRTH,DCRTJ)201107-201811

sub63141-37141

main63141-37141iXZU605,655,685,695..DCB..20T201812

main63142-26900iXZC605..06S201107-201705

63332DPAD, SUN ROOF HEADLINING

main63332-37010iTRC600..DCB201107-201705

main63332-37020iXZU605,655,685,695..DCB..20T201107-201705

main63332-37040iXZU605,655,685,695..DCB..20T201107-201705

64111APANEL, BACK

main64111-37374iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB201107-201410

main64111-37375iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB201410-201501

sub64111-37376

main64111-37376iBZU600,TRC600..SCB;TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK,EFI)201501-202104

main64111-37512iTRC600,XZU605,655,685,695..DCB..20T201107-201410

main64111-37513iTRC600,XZU605,655,685,695..DCB..20T201410-201501

sub64111-37514

main64111-37514iTRC600,XZU605,655,685,695..DCB..20T201501-201705

main64111-37522iXZU600,640,685..IV4201107-201410

sub64111-37523

main64111-37523iXZU600,640,685..IV4201410-201705

main64111-37540iXZU600,640,685..IV4201107-201705

main64111-37540iXZU600,640,685..IV4201107-201705

main64111-37540iXZU600,640,685..IV4201107-201705

main64111-37540iXZU600,640,685..IV4201107-201705

64115BREINFORCEMENT, BACK PANEL

main64115-25040iXZU600,605,640,655,685,695..DCB201607-202104

main64115-37124iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCB,SCB201107-201607

sub64115-25040

main64115-37150iXZU600,640,685..IV4201107-201705

main64115-37150iXZU600,640,685..IV4201107-201705

main64115-37150iXZU600,640,685..IV4201107-201705

main64115-37150iXZU600,640,685..IV4201107-201705

64117AREINFORCEMENT, CAB BACK, LOWER

main64117-37030iTRC600..DCB201107-201705

64122ABAFFLE, DUST REAR BODY

main64122-25020iXZU600,640,685..IV4201107-202103

main64122-25020iTRC600..DCB201107-201605

main64122-25020iXZU60#,640,655,685,695..DCB201107-202103

main64122-25020iXZU60#,640,655,685,695..DCB201107-202103

main64122-25020iXZU60#,640,655,685,695..DCB201107-202103

64145EBRACKET, REAR SEATBACK SET

main64145-37020iTRC600..DCB201107-201705

64811GLASS, BACK WINDOW

main64811-25050iXZU600,640,685..IV4201905-202103

main64811-25050iXZU605,655,685,695..DCB..CBU201905

main64811-25050iXZU600,640,685..IV4201905-202103

main64811-25050iXZU600,640,685..IV4201905-202103

main64811-25050iXZU600,640,685..IV4201905-202103

main64811-37120iXZU675..DM5..CBU;XZC600,630,XZU600,602,630,642..SCB;XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(IV3,IV5,IV6)201905

main64811-37120iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

main64811-37120iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK,DCRVT)201705

main64811-37140iXZU600,640,685..IV4201107-201201

sub64811-37200

main64811-37140iXZU600,640,685..IV4201107-201201

sub64811-37200

main64811-37140iXZU600,640,685..IV4201107-201201

sub64811-37200

main64811-37140iXZU600,640,685..IV4201107-201201

sub64811-37200

main64811-37140iXZU600,640,685..IV4201107-201201

sub64811-37200

main64811-37200iXZU600,640,685..IV4201202-201705

main64811-37200iXZU600,640,685..IV4201705-201905

main64811-37200iXZU600,640,685..IV4201705-201905

main64811-37200iXZU600,640,685..IV4201705-201905

main64811-37200iXZU600,640,685..IV4201705-201905

main64811-37200iXZU600,605,640,655,685,695..DCB..(DCRTH,DCRTJ,DCRTK)201705

main64811-37200iXZU600,640,685..IV4201202-201705

main64811-37200iTRC600..DCB201202-201705

main64811-37200iXZU60#,640,655,685,695..DCB201202-201705

main64811-37200iXZU60#,640,655,685,695..DCB201202-201705

main64811-37210iXZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..CBU201905

main64811-37220iXZU605,655,685,695..DCB..CBU201905

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37041iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

main64831-37050iXZU600,640,685..IV4201107-201201

sub64831-37051

main64831-37050iXZU600,640,685..IV4201107-201201

sub64831-37051

main64831-37050iXZU600,640,685..IV4201107-201201

sub64831-37051

main64831-37050iXZU600,640,685..IV4201107-201201

sub64831-37051

main64831-37051iXZU600,640,685..IV4201202-202103

main64831-37051iTRC600..DCB201202-201605

main64831-37051iXZU60#,640,655,685,695..DCB201202-202103

main64831-37051iXZU60#,640,655,685,695..DCB201202-202103

main64831-37051iXZU60#,640,655,685,695..DCB201202-202103

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-37040iXZU600,640,685..IV4201107-202103

main64832-37040iXZU60#,640,655,685,695..DCB201107-202103

main64832-37040iXZU60#,640,655,685,695..DCB201107-202103

main64832-37040iXZU60#,640,655,685,695..DCB201107-202103

main64832-37040iTRC600..DCB201107-201605

86245ABRACKET, VOLTAGE CONVERTER

main86245-37030iXZU605,655,685,695..DCB..(DCRTH,DCRTJ)201107-201705

9017906274

main90179-06274

9046708033

main90467-08033

9167180620

main91671-80620

9261660610

main92616-60610

20 parts on this diagram · 6 diagrams in section
