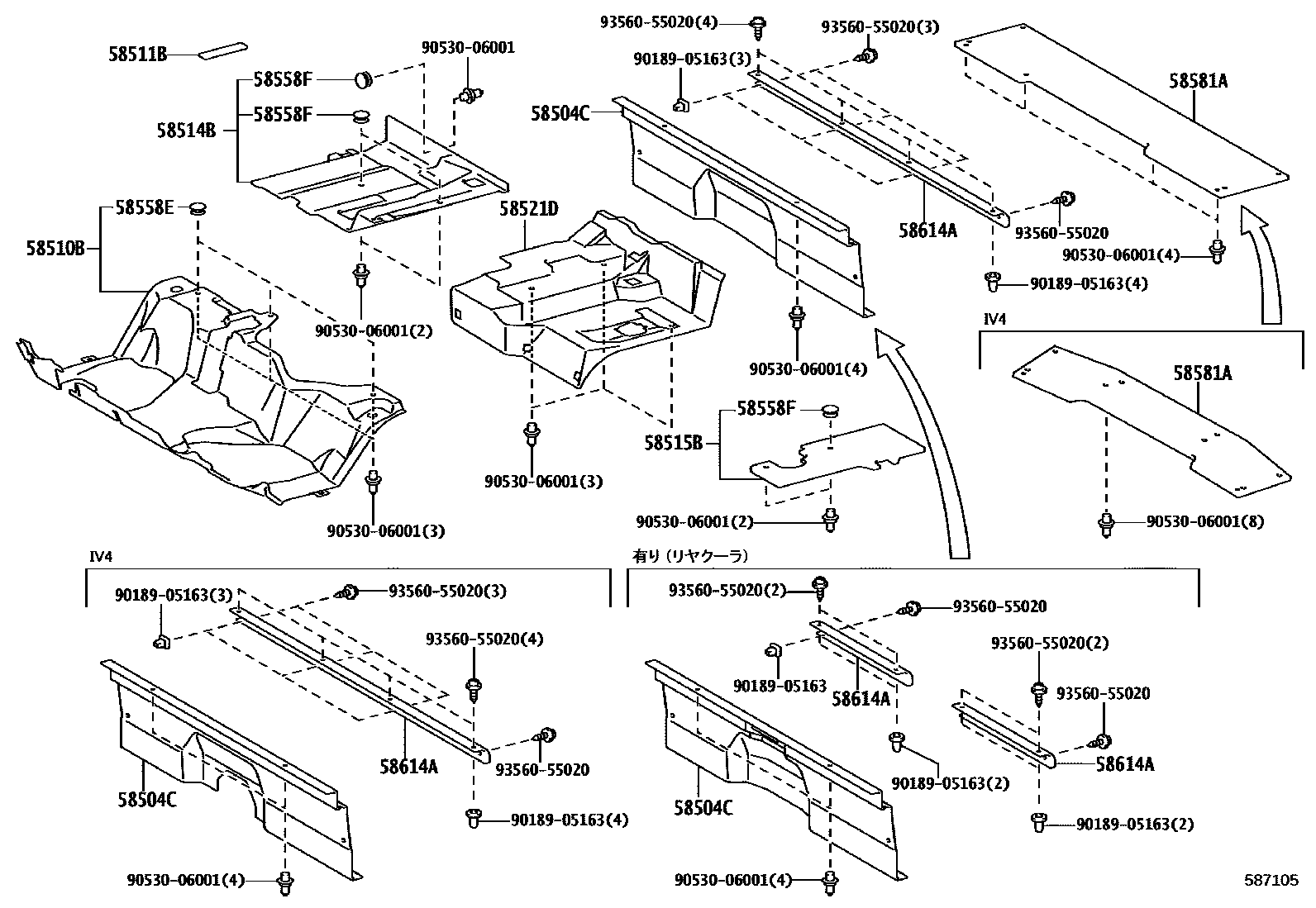

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

58504CMAT SUB-ASSY, HEADER

main58504-37300-B1iXZU605,655,685,695..DCB..20T201905-202007

GRAY,TRIM1#

main58504-37301-B1iXZU605,655,685,695..DCB..20T202008

GRAY,TRIM1#

main58504-37310-B1iXZU605,655..DCB..(DCRTH,DCRTJ)201705

main58504-37330-B1supersedes 58504-37341-B1iXZU600,640,685..IV4201905-202007

main58504-37331-B1supersedes 58504-37341-B1iXZU600,640,685..IV4202008

main58504-37360-B1supersedes 58504-37350-B1iXZC605..03S201107-201705

sub58504-37361

58510BMAT, FRONT FLOOR, FRONT

main58510-37L80-B1iBZU600201107-201509

GRAY,TRIM1#

main58510-37L81-B1iBZU600201510-201609

GRAY,TRIM1#

main58510-37L82-B1iBZU600201610

GRAY,TRIM1#

main58510-37M00-B1iXZU600..6FC..40T;TRC600,TRU600,XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..SCB..(CBU,IV3,IV7)201107-201509

GRAY,TRIM1#

main58510-37M01-B1iXZU600..20T..IV6201510-201609

main58510-37M02-B1iXZU602,642,652..DCRTK..IV6201705

main58510-37M60-B1iXZC605,XZU600,605,640,655,685,695..(DCB,VAN)..(DCRTH,DCRTJ,DCRTK)201705

GRAY,TRIM1#

main58510-37M70-B1iTRC600..DCB201107-201605

GRAY,TRIM1#

main58510-37Q40-B0iXZU60#,640,650..MTM..(IV5,IV6)201305-201509

GRAY,TRIM1#

main58510-37Q41-B0iXZC610,630,XZU610,620..6FC;XZC60#,645,655,XZU600,605,640,645,650,655..SCB..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV7)201705

GRAY,TRIM1#

main58510-37L90-B1iBZU600..IV5201107-201509

main58510-37L91-B1iBZU600..IV5201510

main58510-37M10-B1iXZU600..6FC..IV5201107-201505

main58510-37M20-B1iBZU600..CBU,IV3201107-201509

main58510-37M21-B1iBZU600..CBU,IV3201510

main58510-37M30-B1iXZU600..6FC..30T..IV6201505-201509

main58510-37M31supersedes 58510-37M01iTRC600,TRU600..SCB201510-201605

main58510-37M31-B1iXZC60#,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3)201510-201609

main58510-37M32-B1iXZU600..20T..IV6201610-201705

main58510-37M50-B1supersedes 58510-37Q70-B0iXZU685..IV6201405-201705

main58510-37M80-B0iXZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..SCB..(CBU,IV3)201107-201601

main58510-37M81-B0iXZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..SCB..(CBU,IV3)201602-201609

main58510-37M82-B0iXZC60#,610,630,645,655,XZU600,605,610,620,630,640,645,65#..SCB..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3)201705

main58510-37M90-B0supersedes 58510-37M40-B1iXZC675,XZU675,685,695..SCB..(CBU,IV3)201107-201108

main58510-37M91-B0supersedes 58510-37M40-B1iXZC675,XZU675,685,695..SCB..(CBU,IV3)201108-201601

main58510-37M92-B0supersedes 58510-37M40-B1iXZC675,XZU675,685,695..SCB..(CBU,IV3)201602-201705

main58510-37Q50-B0iXZU600..5F..IV5201305-201509

main58510-37Q51-B0iXZU600..IV5201510-201705

main58510-37Q60-B0iXZU650..35T..(CBU,IV3)201305-201509

main58510-37Q61-B0iXZU650..DCRTK..(CBU,IV3)201510-201705

main58510-37Q80-B0supersedes 58510-37Q70-B0iXZC675..DM5201505-201705

main58510-37Q90-B0iXZU650..35T..(CBU,IV3)201305-201601

main58510-37Q91-B0iXZC610,630,XZU610,620..6FC;XZC60#,645,655,XZU600,605,640,645,650,655..SCB..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3)201705

main58510-37R00-B0iXZC675,XZU675,685,695..SCB..(T3,T4)..(CBU,IV3)201305-201601

main58510-37R01-B0supersedes 58510-37M40-B1iXZC675,XZU675,685,695..SCB..(CBU,IV3)201905

58511BMAT, FLOOR, FRONT SIDE

main58515-37080-C0iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

BLACK,TRIM1#

main58515-37110iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201505

58514BMAT, FLOOR, REAR RH

main58514-37140-B1iTRC600..DCB201107-201605

GRAY,TRIM1#

main58514-37150-B1iXZC605..03S201705

GRAY,TRIM1#

58515BMAT, FLOOR, REAR LH

main58515-37100-B1iXZU600,605,640,655,685,695..DCB201905

GRAY,TRIM1#

58521DMAT, ENGINE SERVICE HOLE COVER

main58521-37310-B1iXZU60#,640,655,685,695..DCB201107-201705

GRAY,TRIM1#

main58521-37320-B1iXZC605..06S201107-201605

GRAY,TRIM1#

58558EFASTENER, PILE

main90530-04005×6iTRC600,TRU600..SCB201510-201605

main90530-04005-S6×3iXZC675,XZU675,685,695;TRC600,XZC605,XZU60#,640,655..DCB,VAN201107-201705

GRAY,TRIM1#

main90530-04005-S3×6iXZC675,XZU675,685,695..SCB..(T3,T4)..(CBU,IV3)201305-201705

58558FFASTENER, PILE, UPR

main90530-04005-S6×5iXZC675,XZU675,685,695;XZC605,XZU60#,640,655..(DCB,VAN)..(03S,T3,T4)201107-201705

GRAY,TRIM1#

58581AMAT, REAR FLOOR

main58581-37520-B1supersedes 58581-37540-B1iTRC600..DCB201107-201605

GRAY,TRIM1#

main58581-37550-B1iXZU600,640,685..DCRTK..IV4201705

GRAY,TRIM1#

main58581-37530-B1iXZU605,655..DCB..(DCRTH,DCRTJ)201705

main58581-37570-B1supersedes 58581-37560-B1iXZC605..03S201107-201705

main58581-37580-B1supersedes 58581-37600-B1iXZC605..06S201107-201605

main58581-37590-B1supersedes 58581-37600-B1iXZC605..06S201107-201605

main58581-37610-B1supersedes 58581-37600-B1iXZC605..06S201107-201605

58614APLATE, MAT SET, NO.4

main58614-25021-B1supersedes 58614-37080-B1iXZU600,640,685..IV4201107-201207

GRAY,TRIM1#

main58614-37090-B0iXZU600,640,685..IV4201208-201505

GRAY,TRIM1#

main58614-37021-B1iXZU605,655..DCB201505-201705

main58614-37031-B1iXZU605,655..DCB..(DCRTH,DCRTJ)201705

main58614-37100-B0iXZU605,655..DCB201208-201505

main58614-37110-B0iXZU605,655..DCB201208-201505

9018905163

main90189-05163

9053006001

main90530-06001

9356055020

main93560-55020
