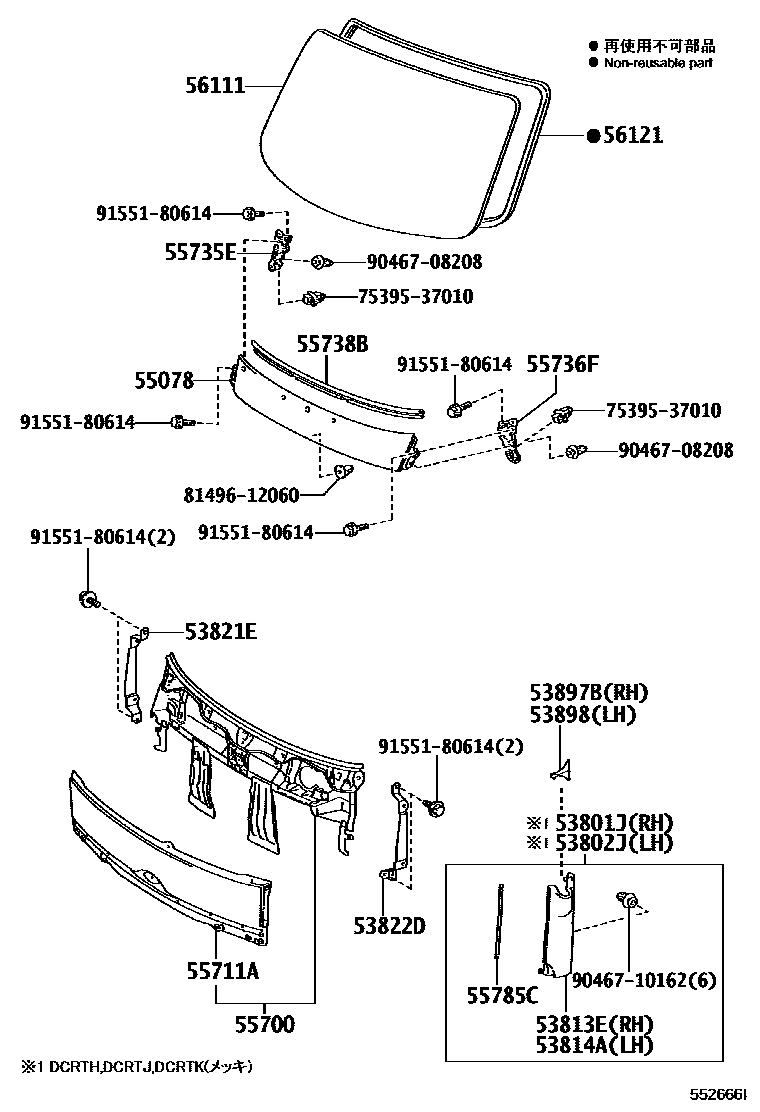

FRONT PANEL & WINDSHIELD GLASS

0001 1���������� ����=�������������0002 1���������� ����=��������� 0004 1���������� ����=��������� 0006 1��(�����������)

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-37100iXZU600..IV5201107-201705

main53801-37100iXZU600..IV5201605-201705

main53801-37120iXZU650..20T;XZC600..5F..ST;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,63201107-201605

main53801-37120iXZU650..20T;XZC600..5F..ST;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,63201107-201605

main53801-37120iXZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK)201605-201705

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-37100iXZU640,650..(DCRTK,DCRVT)..(IV4,IV6);XZU600,605,655,685..DCB..(DCRTH,DCRTJ,DCRTK);XZC605,XZU600,602,642,652,695..(03S,T3)..(20T,35T,40T)..(DCRTH,DCRTJ,DCRTK,DCRVT)201605-201705

main53802-37100iXZU600..IV5201107-201705

main53802-37120iXZC600..6FC..ST;XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU201107-201605

main53802-37120iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

main53802-37120iXZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK)201605-201705

53813EPANEL, FRONT SIDE, RH

main53813-37100-A0iXZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T201107-201705

WHITE,058

sub53813-37190

main53813-37100-A0iXZU605..IV5201605-201705

sub53813-37190

main53813-37100-B0iXZU645..5F..20T..IV3;XZU655..T4..6FC..20T..IV3;XZC605..T4..5F..DCRTH..IV3;BZU600,XZC600,675,XZU600,650,675,685,695..T4..20T..(DCRTH,DCRTJ,LPG)..IV3201107-201605

JORSEY CREAM,9A7

sub53813-37190

main53813-37100-B1iXZU600,602,640,642,650,652..T3..(35T,40T)201107-201705

SILVER ME.,199

sub53813-37190

main53813-37100-D0iXZU655..30T..DCRTK..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..5F..20T..DCRTJ..IV3201107-201705

RED,3L5

sub53813-37190

main53813-37100-H0iXZU605,655,685,695..DCB..20T;XZU600,602,640,642,650,652..35T,40T201605-201705

sub53813-37190

main53813-37100-H0iXZU650..DCRVT;XZU605,655..DCB..(DCRTH,DCRTJ);XZC605,XZU600,602,640,642,652,685,695..(03S,T3)..(20T,35T,40T)..(DCRTH,DCRTJ,DCRTK,DCRVT)201107-201705

TURQUOISE,766

sub53813-37190

main53813-37100-J0iXZU600..IV5201107-201705

BLUE,8P0

sub53813-37190

main53813-37100-J0iXZU605..IV5201605-201705

sub53813-37190

main53813-37100-K0iXZU650..30T..DCRTK..IV3201107-201605

ONLYJAPANESE,9E2

sub53813-37190

main53813-37110iXZU605..IV5201107-201705

main53813-37110iXZU605..IV5201605-201705

main53813-37120-A0iXZU650..20T;XZC600..5F..ST;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,63201107-201605

sub53813-37180

main53813-37120-A0iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(20T,30T)201605-201705

WHITE,058

sub53813-37180

main53813-37120-A0iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

sub53813-37180

main53813-37120-B0iXZU645..5F..20T..IV3;XZU655..T4..6FC..20T..IV3;XZC605..T4..5F..DCRTH..IV3;BZU600,XZC600,675,XZU600,650,675,685,695..T4..20T..(DCRTH,DCRTJ,LPG)..IV3201605-201705

JORSEY CREAM,9A7

sub53813-37180

main53813-37120-B0iXZU645..5F..20T..IV3;XZU655..T4..6FC..20T..IV3;XZC605..T4..5F..DCRTH..IV3;XZC600,675,XZU600,650,675,685,695..T4..20T..(DCRTH,DCRTJ)..IV3201107-201605

sub53813-37180

main53813-37120-B0iXZU645..5F..20T..IV3;XZU655..T4..6FC..20T..IV3;XZC605..T4..5F..DCRTH..IV3;XZC600,675,XZU600,650,675,685,695..T4..20T..(DCRTH,DCRTJ)..IV3201107-201605

sub53813-37180

main53813-37120-B1iXZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;BZU600,TRC600,XZC60#,645,655,675,XZU6201107-201605

sub53813-37180

main53813-37120-B1iXZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;BZU600,TRC600,XZC60#,645,655,675,XZU6201107-201605

sub53813-37180

main53813-37120-B1iBZU600..CBU,IV3201605-201705

SILVER ME.,199

sub53813-37180

main53813-37120-D0iXZU650..30T..DCRTK..IV3201107-201605

sub53813-37180

main53813-37120-D0iXZU655..30T..DCRTK..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..5F..20T..DCRTJ..IV3201605-201705

RED,3L5

sub53813-37180

main53813-37120-D0iXZU655..30T..DCRTK..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..5F..20T..DCRTJ..IV3201107-201605

sub53813-37180

main53813-37120-H0iXZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK)201605-201705

TURQUOISE,766

sub53813-37180

main53813-37120-H0iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

sub53813-37180

main53813-37120-H0iXZU650..20T;XZC600..5F..ST;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,63201107-201605

sub53813-37180

main53813-37120-J0iXZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;TRC600,XZU640..SCB..(T3,T4)..5F..(DCRTK,EFI);BZU600,XZC60#,61201107-201605

sub53813-37180

main53813-37120-J0iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD201605-201705

BLUE,8P0

sub53813-37180

main53813-37120-J0iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

sub53813-37180

main53813-37120-K0iXZU650..30T..DCRTK..IV3201107-201605

sub53813-37180

main53813-37120-K0iXZU650..30T..DCRTK..IV3201107-201605

sub53813-37180

main53813-37120-K0iXZU655..6F..30T..IV3;XZU655..T3..6FC..30T..IV3;XZC655,XZU605..(T3,T5)..6FC..20T..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..6F..20T..IV3201605-201705

ONLYJAPANESE,9E2

sub53813-37180

main53813-37130iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

main53813-37130iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

main53813-37130iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD201605-201705

53814APANEL, FRONT SIDE, LH

main53814-37100-A0iXZU640,650..(DCRTK,DCRVT)..(IV4,IV6);XZU600,605,655,685..DCB..(DCRTH,DCRTJ,DCRTK);XZC605,XZU600,602,642,652,695..(03S,T3)..(20T,35T,40T)..(DCRTH,DCRTJ,DCRTK,DCRVT)201107-201705

WHITE,058

sub53814-37190

main53814-37100-A0iXZU605..IV5201605-201705

sub53814-37190

main53814-37100-B0iXZU645..5F..20T..IV3;XZU655..T4..6FC..20T..IV3;XZC605..T4..5F..DCRTH..IV3;BZU600,XZC600,675,XZU600,650,675,685,695..T4..20T..(DCRTH,DCRTJ,LPG)..IV3201107-201605

JORSEY CREAM,9A7

sub53814-37190

main53814-37100-B1iXZU600,602,640,642,650,652..T3..(35T,40T)201107-201705

SILVER ME.,199

sub53814-37190

main53814-37100-D0iXZU650..30T..DCRTK..IV3201107-201705

RED,3L5

sub53814-37190

main53814-37100-H0iXZU650..DCRVT;XZU605,655..DCB..(DCRTH,DCRTJ);XZC605,XZU600,602,640,642,652,685,695..(03S,T3)..(20T,35T,40T)..(DCRTH,DCRTJ,DCRTK,DCRVT)201605-201705

sub53814-37190

main53814-37100-H0iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

TURQUOISE,766

sub53814-37190

main53814-37100-J0iXZU605..IV5201107-201705

BLUE,8P0

sub53814-37190

main53814-37100-J0iXZU600..IV5201605-201705

sub53814-37190

main53814-37100-K0iXZU655..30T..DCRTK..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..5F..20T..DCRTJ..IV3201107-201605

ONLYJAPANESE,9E2

sub53814-37190

main53814-37110iXZU600..IV5201107-201705

main53814-37110iXZU600..IV5201605-201705

main53814-37120-A0iXZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;TRC600,XZU640..SCB..(T3,T4)..5F..(DCRTK,EFI);BZU600,XZC60#,61201107-201605

sub53814-37180

main53814-37120-A0iXZU650..20T;XZC600..5F..ST;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,63201107-201605

sub53814-37180

main53814-37120-A0iXZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK)201605-201705

WHITE,058

sub53814-37180

main53814-37120-B0iXZU655..T4..6FC..20T..IV3;XZU645,650..T4..6F..20T..IV3;XZC605,675,XZU605,675,695..SCB..T4..20T..IV3201605-201705

JORSEY CREAM,9A7

sub53814-37180

main53814-37120-B0iXZU645..5F..20T..IV3;XZU655..T4..6FC..20T..IV3;XZC605..T4..5F..DCRTH..IV3;BZU600,XZC600,675,XZU600,650,675,685,695..T4..20T..(DCRTH,DCRTJ,LPG)..IV3201107-201605

sub53814-37180

main53814-37120-B0iXZU645..5F..20T..IV3;XZU655..T4..6FC..20T..IV3;XZC605..T4..5F..DCRTH..IV3;XZC600,675,XZU600,650,675,685,695..T4..20T..(DCRTH,DCRTJ)..IV3201107-201605

sub53814-37180

main53814-37120-B1iXZC605,645,655,675,XZU600,605,640,645,650,655,675,685,695..SCB..(T2,T3,T4,T5)..DCRWD201605-201705

SILVER ME.,199

sub53814-37180

main53814-37120-B1iXZU650..20T;XZC600..5F..ST;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,69201107-201605

sub53814-37180

main53814-37120-B1iXZU650..20T;XZC600..5F..ST;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,69201107-201605

sub53814-37180

main53814-37120-D0iXZU650..30T..DCRTK..IV3201107-201605

sub53814-37180

main53814-37120-D0iXZU655..30T..DCRTK..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..5F..20T..DCRTJ..IV3201605-201705

RED,3L5

sub53814-37180

main53814-37120-D0iXZU650..30T..DCRTK..IV3201107-201605

sub53814-37180

main53814-37120-H0iXZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;TRC600,XZU640..SCB..(T3,T4)..5F..(DCRTK,EFI);BZU600,XZC60#,61201107-201605

sub53814-37180

main53814-37120-H0iXZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;TRC600,XZU640..SCB..(T3,T4)..5F..(DCRTK,EFI);BZU600,XZC60#,61201107-201605

sub53814-37180

main53814-37120-H0iBZU600201605-201705

TURQUOISE,766

sub53814-37180

main53814-37120-J0iXZU650..20T;XZC600..5F..ST;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,63201107-201605

sub53814-37180

main53814-37120-J0iXZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK)201605-201705

BLUE,8P0

sub53814-37180

main53814-37120-J0iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

sub53814-37180

main53814-37120-K0iXZU655..30T..DCRTK..IV3;XZC605,XZU650..(T3,T5)..5F..IV3;XZC655,XZU605..SCB..(T3,T4,T5)..5F..20T..DCRTJ..IV3201605-201705

ONLYJAPANESE,9E2

sub53814-37180

main53814-37120-K0iXZU650..30T..DCRTK..IV3201107-201605

sub53814-37180

main53814-37120-K0iXZU650..30T..DCRTK..IV3201107-201605

sub53814-37180

main53814-37130iXZC600..6FC..ST;XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU201107-201605

main53814-37130iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD201605-201705

main53814-37130iXZC600..6FC..ST;XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU201107-201605

53821EBRACKET, FRONT FENDER, REAR RH

main53821-37100iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,6201107-201705

53822DBRACKET, FRONT FENDER, REAR LH

main53822-37060iBZU600201107-201705

53897BPLATE, FRONT PILLAR TO FRONT SIDE SEAL, RH

main53897-37010iXZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T201605-201705

main53897-37010iXZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;BZU600,XZC610,675,XZU605,610,620,655,201107-201705

main53897-37010iXZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T201605-201705

main53897-37020iXZC600..6FC..ST;XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU201107-201605

main53897-37020iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

main53897-37020iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

main53897-37020iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

main53897-37020iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(20T,30T)201605-201705

53898PLATE, FRONT PILLAR TO FRONT SIDE SEAL, LH

main53898-37010iBZU600..IV5201605-201705

main53898-37010iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

main53898-37010iXZU600..IV5201605-201705

main53898-37020iXZC600..6FC..ST;XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU201107-201605

main53898-37020iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

main53898-37020iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

main53898-37020iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

main53898-37020iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD201605-201705

55078COVER SUB-ASSY, FRONT PANEL

main55078-37110iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-201705

55700PANEL ASSY, FRONT

main55700-37350iBZU600201408-201705

main55700-37370iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201408

sub55700-37430

sub90950-01398

main55700-37460iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

55711APANEL, FRONT, LOWER

main55711-37110iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

55735EREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-37020iBZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI201107-202001

sub55735-37021

main55735-37021iBZU600202002

55736FREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-37020iBZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI201107-202001

sub55736-37021

main55736-37021iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202002

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-37080iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

55785CPAD, FRONT PANEL COVER

main55785-37050iBZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI201107-202102

main55785-37070iBZU600202103

56111GLASS, WINDSHIELD

main56101-37030iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(20T,30T)..(CBU,IV3)201209-201605

main56101-37050iXZU650,652..(35T,40T)..CBU;XZU605,655,685,695..DCB..CBU201905

main56101-37060iXZU650,652..(35T,40T)..CBU;XZU605,655,685,695..DCB..CBU201905

main56101-37070iXZC60#,645,655..SCB..WT201605-201705

sub56102-37020

sub75531-89112

sub75533-89113

sub75534-89111

sub75535-89106

main56101-37080iXZU650..DCRVT;XZU605,655..DCB..(DCRTH,DCRTJ);XZC605,XZU600,602,640,642,652,685,695..(03S,T3)..(20T,35T,40T)..(DCRTH,DCRTJ,DCRTK,DCRVT)201705

sub56101-37120

main56101-37120iXZU650,652..(35T,40T)..CBU;XZU605,655,685,695..DCB..CBU201905

main56101-37120iXZU605,655,685,695..DCB..IV3;XZU600,602,640,642,650,652..(35T,40T)..(IV3,IV6)201905

main56101-89101iXZC600..ST;BZU600,XZC610,630,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..SCB..(20T,30T)..(DCRTJ,DCRTK,LPG)201605-202006

main56101-89101iXZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK)201705

main56101-89101iXZC60#,645,655..SCB..WT201605-201705

main56101-89101iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(20T,30T)201107-201605

main56101-89102iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(20T,30T)..(CBU,IV3)201107-201209

main56102-37010iXZC605,645,655,675,XZU605,640,645,650,655,675,685,695..SCB..(T2,T3,T4,T5)..DCRWD..CBU201905-202104

main56102-37020iXZC605,645,655,675,XZU605,640,645,650,655,675,685,695..SCB..(T2,T3,T4,T5)..DCRWD..CBU201905-202104

main56102-37030iXZC605,645,655,675,XZU605,640,645,650,655,675,685,695..SCB..(T2,T3,T4,T5)..DCRWD..CBU201905-202104

main56102-37040iXZU675..DM5..CBU;XZC600,630,XZU600,630..SCB..DCRWD;XZC605,645,655,675,XZU605,640,645,650,655,675,685,695..SCB..DCRWD..(IV3,IV5,IV6)201905-202104

main56102-37040iXZU675..DM5..CBU;XZC600,630,XZU600,630..SCB..DCRWD;XZC605,645,655,675,XZU605,640,645,650,655,675,685,695..SCB..DCRWD..(IV3,IV5,IV6)201905-202104

main56102-37040iBZU600..IV5202006-202103

main56102-37040iBZU600202006-202104

main56111-25050iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(CBU,IV3)201209-201605

main56111-37120iXZU605,655,685,695..DCB..IV3;XZU600,602,640,642,650,652..(35T,40T)..(IV3,IV6)201705

main56111-37120iXZU650,652..(35T,40T)..CBU;XZU605,655,685,695..DCB..CBU201905

main56111-37120iXZU650,652..(35T,40T)..CBU;XZU605,655,685,695..DCB..CBU201705

main56111-37120iXZU650..20T;XZC600..5F..ST;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;BZU600,XZC60#,610,630,645,655,675,XZU60#,610201107-201705

main56111-37120iBZU600,XZU600..IV5201605

main56111-37130iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(CBU,IV3)201107-201208

56121WEATHERSTRIP, WINDSHIELD

main56121-25040iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

main56121-25040iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201605

main56121-25040iXZU600,650..6F;XZU640..IV4,IV6;XZC605,XZU60#,655,685,695..(DCB,VAN)..(03S,T3,T4)201107-201705

main56121-25040iXZU600..IV5201605-201705

7539537010CLIP, BACK DOOR MOULDING, NO.1

main75395-37010

8149612060GUIDE, REAR COMBINATION LAMP

main81496-12060

9046708208

main90467-08208

9046710162

main90467-10162

9155180614

main91551-80614

22 parts on this diagram · 4 diagrams in section
