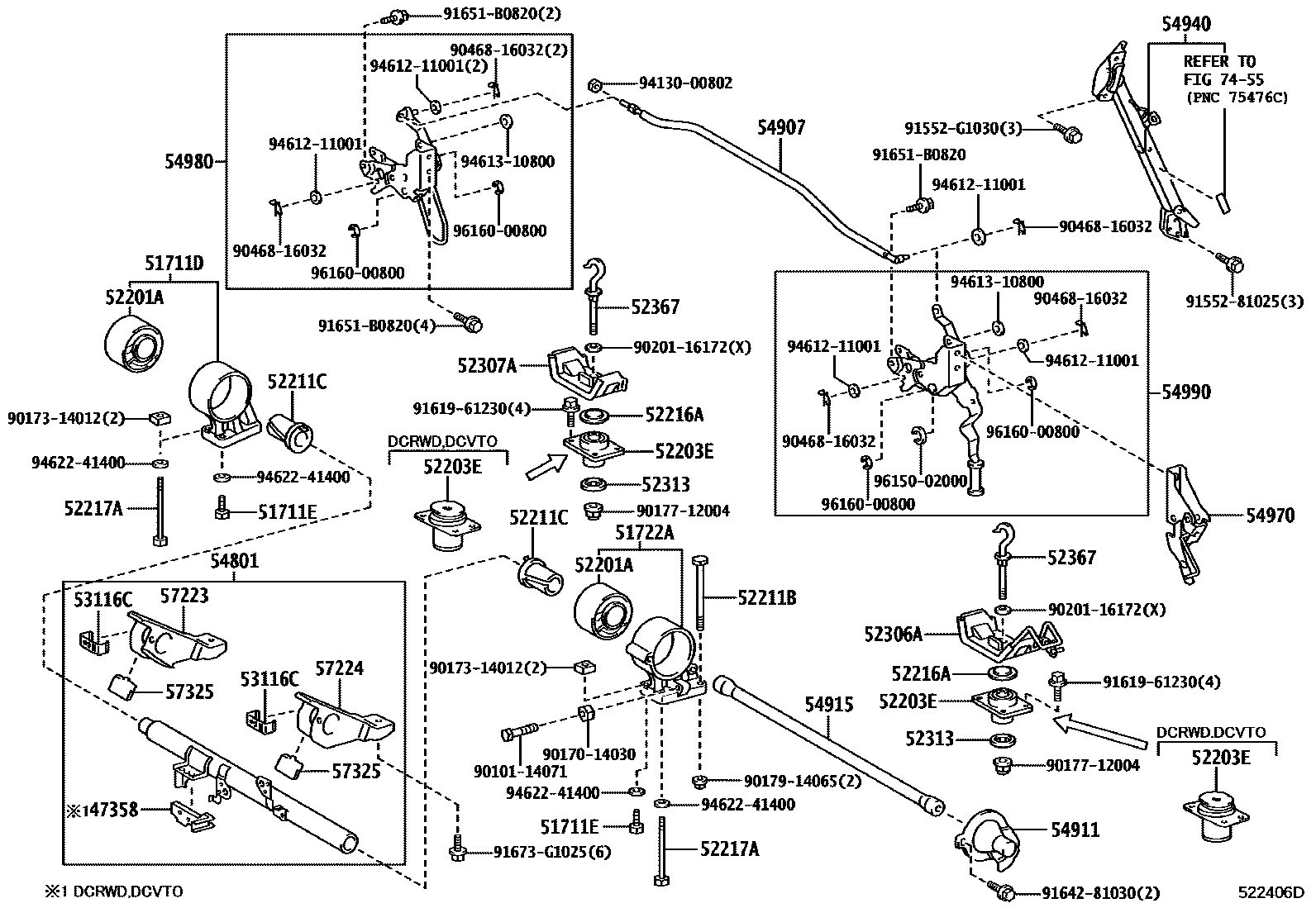

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1������������������ 0004 1������������������ 0005 1�������������� 0006 1 0007 1������������� 0008 1������������� 0009 1������������

47358TUBE, BOOSTER TO RESERVOIR, NO.2

main47358-37010iTRC600,XZC605..(DCB,VAN)..(06S,T4)201107-201705

51711DBRACKET, CAB FRONT MOUNTING

main51701-37110iXZU685,695..DCB..(DCRTJ,DCRTK)201107-201705

main51701-37360iBZU600201107-201705

51711EBOLT, HEXAGON(FOR CAB MOUNTING BARACKET)

main90101-14041iXZU685,695..DCB..(DCRTJ,DCRTK)201107-201705

main90101-14073iXZC610,630,XZU610,620,630..DCRTJ,DCRTK201107-201705

main90101-14075iXZU685,695..SCB..(DCRTJ,DCRTK);XZC60#,645,655,675,XZU60#,64#,65#,675..DCRTH,DCRTJ,DCRTK,DCRVT201107-201705

51722ABRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main51702-37050iTRC600,XZC605..(DCB,VAN)..(06S,T4)201401-201705

main51702-37050iXZU605,655..DCB201905

main51702-37100iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

main51702-37100iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK,DCRVT)201705

main51702-37110iXZU685,695..DCB201107-201401

main51702-37350iXZU685,695..DCB..(DCRTJ,DCRTK)201705

main51702-37350iXZU685,695..DCB201401-201705

52201ACUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-37050iBZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI201107-201905

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-37030iBZU600201107-201705

main52203-37050iXZC605,XZU605,655,685,695..(DCB,VAN)..(03S,T3,T4)..20T201107-201705

main52203-37090iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB201905

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90109-14013iBZU600201107-201705

main90109-14014iXZU600,640,685,695..DCB201107-201705

52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)

main52211-37010iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201705

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-37030iXZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,201107-201705

main52216-92601iXZU600,640,685..IV4201107-201705

52217BOLT, BODY MOUNTING

main52217-37030iXZC605,XZU605,655,685,695..(DCB,VAN)..(DCRTH,DCRTJ)201107-201705

52217ABOLT, BODY MOUNTING

main90101-14072iBZU600201107-201705

main90101-14072iXZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7201905

main90101-14072iXZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7201905

main90101-14073iXZU650..40T201905

main90101-14078iXZU685,695..DCB201107-201207

main90101-14080iXZU685,695..DCB..(DCRTJ,DCRTK)201208-201705

52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1

main52306-37023iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB201107-201705

main52306-37040iXZU600,640,685..DCRTK..IV4201107-201705

52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2

main52307-37010iXZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,201107-201705

52313STOPPER, CAB REAR MOUNTING REBOUND

main52313-37030iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

main52313-37040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB201905

52367HOOK, CAB REAR MOUNTING

main52367-37020iTRC600..SCB..T4;TRU600..T4..IV3201107-201705

main52367-37030iXZU600,640,685..IV4201107-201705

sub52367-37070

main52367-37060iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB201905

main52367-37070iXZU600,640,685..IV4201905

53116CBRACKET, RADIATOR GRILLE, NO.2

main53116-37030iBZU600,TRC600..SCB;TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK,EFI)201107

54801TUBE SUB-ASSY, TILT CAB, NO.1

main54801-37210iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK,DCRVT)201107-201909

sub54801-37211

main54801-37211iBZU600201910

main54801-37220iTRC600,XZC605,XZU60#,640,655,685,695..DCB,VAN201107-201909

sub54801-37221

main54801-37221iXZU600,605,640,655,685,695..DCB201910

main54801-37240iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB201905

54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING

main54907-37050iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

54911ARM, TILT CAB SPRING SUPPORT, NO.1

main54911-37030iBZU600,TRC600..SCB;TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK,EFI)201107-201905

sub54911-37160

main54911-37160iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB201905

54915SPRING, TILT CAB, NO.1

main54915-37090iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB201107-201905

sub54915-37230

main54915-37140iXZU600,640,685..IV4201107-201705

main54915-37230iBZU600201905

54940STAY ASSY, TILT CAB

main54940-37060iXZU600,640,685..IV4201107-201901

sub54940-37340

main54940-37250iXZC600,610,630,675,XZU600,602,610,620,630,640,642,650,652,675,685,695..SCB201107-201904

sub54940-37310

main54940-37260iXZC605,645,655,XZU605,645,655..SCB201107-201904

sub54940-37320

main54940-37310iBZU600201905-201910

sub54940-37311

main54940-37311iBZU600201911

main54940-37320iXZC605,645,655,XZU605,645,655..SCB201905-201910

sub54940-37321

main54940-37321iXZC605,645,655,XZU605,645,655..SCB201911

main54940-37340iXZU600,640,685..IV4201902

54970LATCH ASSY, TILT CAB STOPPER

main54970-37014iXZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,201107-201705

main54970-37020iXZU600,640,685..IV4201107-201705

54980LOCK ASSY, TILT CAB MOUNTING, RH

main54980-37011iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK,DCRVT)201107-202102

sub54980-37012

main54980-37012iBZU600202103

main54980-37030iXZU600,640,685..DCRTK..IV4201107-201705

54990LOCK ASSY, TILT CAB MOUNTING, LH

main54990-37023iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB201107-202102

sub54990-37024

main54990-37024iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB202103

main54990-37030iXZU600,640,685..DCRTK..IV4201107-201705

main54990-37090iXZU600,640,685..IV4201905

57223BRACKET, FRONT MOUNTING, RH

main57223-37011iBZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI201107

57224BRACKET, FRONT MOUNTING, LH

main57224-37011iBZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI201107

57325REINFORCEMENT, FRONT MOUNTING

main57325-37010iBZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI201107

7455

9010114071

main90101-14071

9017014030

main90170-14030

9017314012

main90173-14012

9017712004

main90177-12004

9017914065

main90179-14065

9020116172

main90201-16172

9046816032

main90468-16032

9155281025

main91552-81025

91552G1030

main91552-G1030

9161961230

main91619-61230

9164281030

main91642-81030

91651B0820

main91651-B0820

91673G1025

main91673-G1025

9413000802

main94130-00802

9461211001

main94612-11001

9461310800

main94613-10800

9462241400

main94622-41400

9615002000

main96150-02000

9616000800

main96160-00800

47 parts on this diagram · 9 diagrams in section
