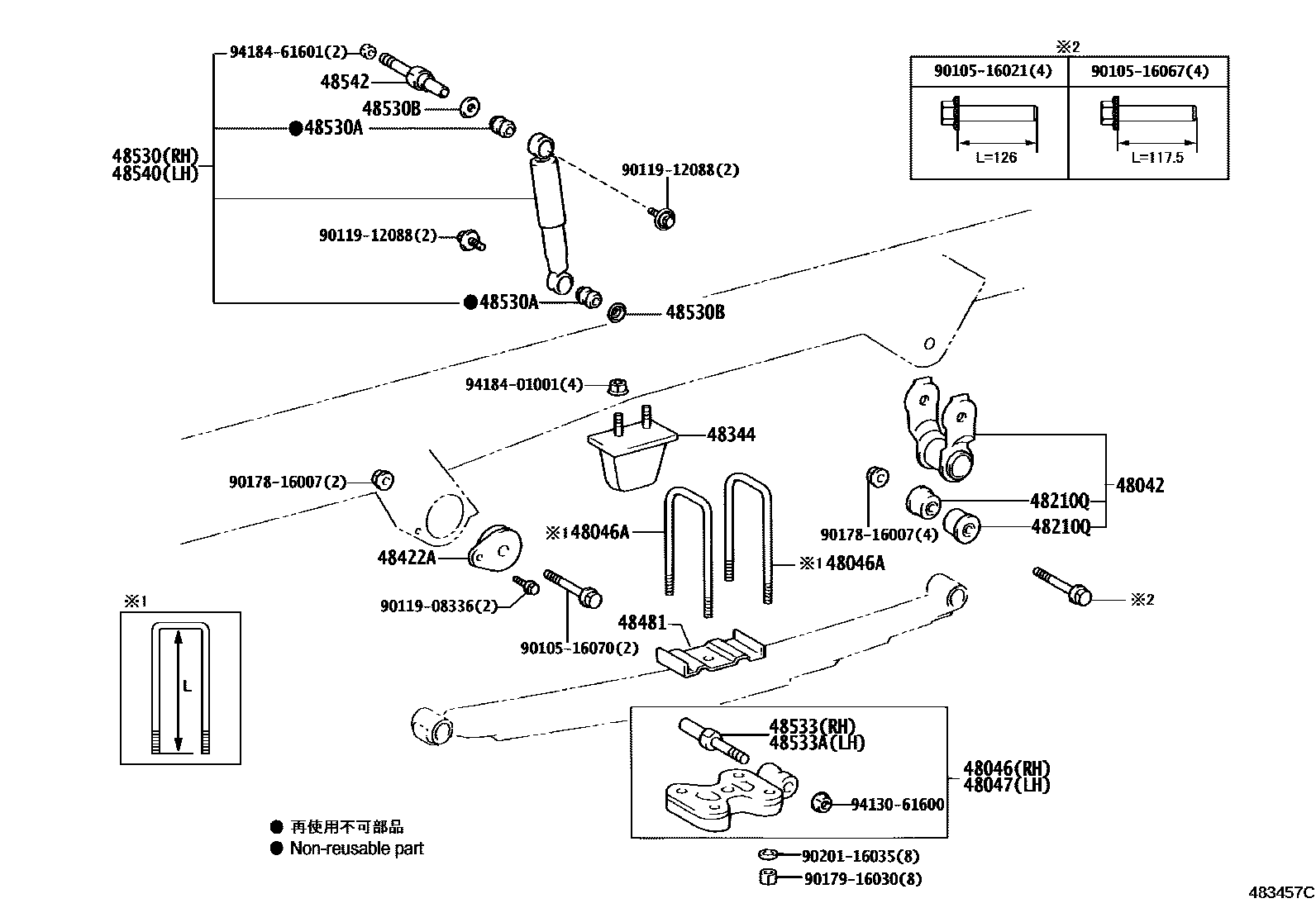

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0009 1�������� 0010 1MAIN 2+HELPER 2-LEAF 0011 1MAIN 2+HELPER 2-LEAF 0012 13-LEAF 0013 13-LEAF 0014 13-LEAF 0015 13-LEAF 0016 13-LEAF 0017 13-LEAF 0018 13-LEAF 0019 13-LEAF 0020 13-LEAF 0021 13-LEAF 0022 1MAIN 3+HELPER 2-LEAF 0023 1MAIN 3+HELPER 2-LEAF 0024 1MAIN 4+HELPER 1-LEAF 0025 1MAIN 4+HELPER 1-LEAF 0026 1MAIN 5+HELPER 3-LEAF 0027 16-LEAF 0029 16-LEAF 0032 16-LEAF 0033 1MAIN 6+HELPER 7-LEAF 0034 1MAIN 6+HELPER 8-LEAF 0035 1MAIN 2+HELPER 1-LEAF,TYPE A 0036 1MAIN 2+HELPER 1-LEAF,TYPE B 0037 1MAIN 2+HELPER 1-LEAF,TYPE C 0038 1MAIN 2+HELPER 1-LEAF,TYPE D 0039 1MAIN 2+HELPER 1-LEAF,TYPE F 0040 1MAIN 2+HELPER 2-LEAF,TYPE A 0041 1MAIN 2+HELPER 2-LEAF,TYPE B 0042 1MAIN 2+HELPER 2-LEAF,TYPE C 0043 1MAIN 2+HELPER 2-LEAF,TYPE D 0044 1MAIN 2+HELPER 2-LEAF,TYPE E 0045 1MAIN 2+HELPER 2-LEAF,TYPE F 0046 1MAIN 2+HELPER 2-LEAF,TYPE G 0047 1MAIN 2+HELPER 3-LEAF,TYPE A 0048 1MAIN 2+HELPER 3-LEAF,TYPE B 0049 13-LEAF,TYPE A 0050 13-LEAF,TYPE C 0051 13-LEAF,TYPE D 0052 1MAIN 3+HELPER 2-LEAF,TYPE A 0053 1MAIN 3+HELPER 2-LEAF,TYPE B 0054 16-LEAF

48042SHACKLE SUB-ASSY, REAR SPRING, NO.2

main48042-37020iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..DCRWD201107-201705

main48042-37041iXZU600,602,640,642,650,652..(35T,40T)..(DCRTK,DCRVT)201107-201705

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-37080iXZU675..T4;XZU605..T4..30T;XZU605..T4..DCRTK;XZU60#..DM3,DM6,T5;XZC675,XZU645..T4..20T201107-201705

main48046-37080iXZU600..6FC..IV4201705

main48046-37090iBZU600..T4..20T201107-201705

main48046-37110iXZC600..6FC..ST201107-201705

main48046-37120iXZC605..T5201107-201705

main48046-37131iXZC675,XZU610,620,675..DM5..(DCRTJ,DCRTK)201107-201705

main48046-37140iXZU630..DCRTJ201107-201705

main48046-37150iXZC630201107-201705

main48046-37160iXZC600201107-201705

main48473-37170iXZC655..DCRTJ;XZU655..T2..DCRTJ201107-201705

main48473-37180iXZU600,645..(30T,40T)..(DCRTJ,DCRTK,DCRVT);XZU602,640,642,65#,685,695..(T3,T4)..(DCRTJ,DCRTK,DCRVT)201107-201705

main48473-37180iXZU655..T4..30T201905

48046ABOLT, U(FOR REAR SPRING)

main90117-16011iXZC60#..DM5,T5201107-201705

main90117-16011iXZC605,645..T4201905

main90117-16014iXZC605..T5201107-201705

main90117-16018iXZU630,640,645,65#,695..30T,35T;XZU600,685..T3..30T..(CBU,IV3,IV4,IV7)201905

main90117-16018iXZU685,695..30T201107-201705

main90117-16018iXZU630,640,645,65#,695..30T,35T;XZU600,685..T3..30T..(CBU,IV3,IV4,IV7)201905

main90117-16021iXZC655;XZU655..T2201905

main90117-16022iXZU650,655,685,695..(T3,T4)..20T201905

main90117-16022iXZU650,655,685,695..(T3,T4)..20T..(DCRTJ,DCRTK)201107-201705

main90117-16024iXZU642..IV3201905

main90117-16024iXZU630..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU201107-201705

main90117-16028iTRC600..DM5201107-201505

main90117-16040iXZU642..IV3201107-201705

main90117-16057iXZU600..6FC..40T201107-201705

main90117-16060iXZU640,642..(DCRTK,DCRVT)..IV6201107-201705

main90117-16060iXZU640,642..(DCRTK,DCRVT)..IV6201705

main90117-16067iXZU605,675..30T..(DCRTJ,DCRTK);XZC675,XZU600,620,675..(DM3,DM5,DM6)..(DCRTJ,DCRTK)201705

main90117-16067iXZU605..T4..DCRTK..IV3201107-201705

main90117-16067iXZU605..T4..DCRTK..IV3201107-201705

main90117-16067iXZU605..T4..DCRTK..IV3201705

main90117-16067iXZU605..SCB..T4..20T..IV3201905

main90117-16068iXZU675..30T;XZC675,XZU675..DM5..20T201905

main90117-16069iXZC675,XZU675..T4..20T201107-201705

main90117-16069iXZU60#..T5..20T201107-201705

main90117-16077iXZU605..T4..DCRTK;XZU645..20T..DCRTJ;XZU600,605,610..(DM5,T5)..20T..(DCRTJ,DCRTK)201107-201705

main90117-16142iXZC655;XZU655..T2;XZC600..5F..ST201107-201705

main90117-16142iXZU650,655,685,695..(T3,T4)..20T201905

main90117-16144iXZC630..DCRTJ201107-201705

main90117-16158iXZU605..T2;XZC605,645..T2,T4201905

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-37110iXZC600..ST201107-201705

main48047-37070iXZC610201107-201705

main48047-37080iTRU600..T4..IV3201107-201705

main48047-37080iXZU605..T4..DCRTK;XZU605..T4..30T..DCRTJ;XZU675..T4..(DCRTJ,DCRTK);XZC675,XZU645..T4..20T..DCRTJ;XZU600,605..(DM3,DM6,T5)..(DCRTJ,DCRTK)201705

main48047-37090iBZU600..T4..20T201107-201705

main48047-37120iXZC605..T5201107-201705

main48047-37131iXZC675,XZU610,620,675..DM5..(DCRTJ,DCRTK)201107-201705

main48047-37140iXZU630201107-201705

main48047-37150iXZC630201107-201705

main48473-37170iXZC655;XZU655..T2201107-201705

main48473-37180iTRU600..T3;XZU650..T4..30T;XZU600..6FC..40T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU201107-201705

main48473-37180iXZU655..T4..30T201905

48210SPRING ASSY, REAR RH

main48210-37380iXZC655,XZU65#..(T3,T4)..20T201107-201510

sub48210-37381

main48210-37381iXZC655,XZU650,655..(T3,T4)..20T..(DCRTJ,DCRTK)201511-201705

main48210-37561iXZU650,652..DCRTK,DCRVT201107-201705

main48210-37621iXZC605..VAN201107-201504

sub48210-37622

main48210-37622iXZC605..06S201505-201705

main48210-37630iXZU605..T4..DCRTK;BZU600,TRC600,XZC600,XZU600,645..T4..20T201107-201502

sub48210-37631

main48210-37630iXZU605..T4..DCRTK;BZU600,TRC600,XZC600,XZU600,645..T4..20T201107-201502

sub48210-37631

main48210-37631iXZU605..T4..DCRTK;XZC600,XZU600,645..T4..20T..(DCRTH,DCRTJ)201503-201705

main48210-37631iXZU605..T4..DCRTK;XZC600,XZU600,645..T4..20T201503-201705

main48210-37640iXZU600..DM3;BZU600,TRU600,XZU605..T4..30T201107-201503

sub48210-37641

main48210-37640iXZU600..DM3;BZU600,TRU600,XZU605..T4..30T201107-201502

sub48210-37641

main48210-37641iXZU605..T4..DCRTK..IV3201705

main48210-37641iXZU605..T4..DCRTK..IV3201503-201705

main48210-37641iXZU600..DM3;XZU605..T4..30T201503-201705

main48210-37710iXZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU201107-201705

main48210-37840iXZU655..T2201107-201510

sub48210-37841

main48210-37841iXZU655..T2..DCRTJ201511-201705

main48210-37850iXZC600..6FC..ST201107-201510

sub48210-37851

main48210-37851iXZC600..ST201511-201705

main48210-37A10iXZC675,XZU675..T4..20T201107-201502

sub48210-37A11

main48210-37A11iXZC675,XZU675..T4..20T201503-201705

main48210-37A20iXZU675..30T201107-201504

sub48210-37A21

main48210-37A21iXZU675..30T..(DCRTJ,DCRTK)201505-201705

main48210-37A30iXZU685,695..20T201107-201510

sub48210-37A31

main48210-37A31iXZU685,695..20T201511-201705

main48210-37A40iXZU685,695..30T201107-201705

main48210-37A50iXZC675,XZU675..DM5201107-201502

sub48210-37A51

main48210-37A51iXZC675,XZU675..DM5..(DCRTJ,DCRTK)201503-201705

main48210-37B10iXZU600,602,640,642..40T..(DCRTK,DCRVT)201107-201705

main48210-37B70iXZU610201107-201504

sub48210-37B71

main48210-37B71iXZU610201505-201705

main48210-37B80iXZC610201107-201504

sub48210-37B81

main48210-37B81iXZC610201505-201705

main48210-37B90iXZU620201107-201502

sub48210-37B91

main48210-37B91iXZU620201503-201705

main48210-37C00iXZC630201107-201510

sub48210-37C01

main48210-37C01iXZC630..DCRTJ201511-201705

main48210-37C10iXZU630..20T201107-201510

sub48210-37C11

main48210-37C11iXZU630..20T..DCRTJ201511-201705

main48210-37E50iXZC605..T5201107-201504

sub48210-37E51

main48210-37E51iXZC605..T5201505-201705

main48210-37F00iXZC605,645,XZU605,645..T4..20T201107-201502

sub48210-37F01

main48210-37F01iXZC605,645,XZU605,645..T4..20T..(DCRTH,DCRTJ,DCRTK)201503-201705

main48210-37J10iXZC605,XZU605..T2201107-201504

sub48210-37J11

main48210-37J11iXZC605,XZU605..T2201505-201705

main48210-37Q40iXZC655,XZU650,655..(T3,T4)..20T201905

main48210-37Q50iXZU685,695..20T201905

main48210-37Q60iXZU655..T2..6F201905

main48210-37Q60iXZU655..T2..6F201905

main48210-37Q70iXZU600,640,645,650,655..(T3,T4)..30T..(CBU,IV3,IV7)201905

main48210-37Q80iXZU685,695..30T..(CBU,IV3)201905

main48210-37Q90iXZU600,640..IV4201905

main48210-37R00iXZU685..IV4201905

main48210-37R10iXZU600..30T..IV6201905

main48210-37R20iXZU685..IV6201905

main48210-37R30iXZU650,652..35T201905

main48210-37R40iXZU642..6FC;XZU642..IV3;XZU602,640..IV6;XZU600..6F..DCVTO201905

main48210-37R40iXZU650..40T201905

main48210-37R50iXZU600,602,640,642..40T..IV6201905

main48210-37R60iXZC630201905

main48210-37R70iXZU630..20T201905

main48210-37R80iXZU630..30T201905

main48210-37R90iXZU642..IV3201905

main48210-37S50iXZC605,645,XZU605,645..SCB..T4..20T201905

main48210-37S60iXZC605,XZU605..T2201905

main48210-37S80iXZU605..DCB201905

main48210-37S90iXZC675,XZU675..T4..20T201905

main48210-37T00iXZC605..T5201905

main48210-37T10iXZU605..T5..20T201905

main48210-37T10iXZU605..T5..20T201905

main48210-37T20iXZC600201905

main48210-37T30iXZU600..DM5..20T201905

main48210-37T40iXZC675,XZU675..DM5..20T201905

main48210-37T50iXZU600..DM3;XZU605..30T..(CBU,IV3)201905

main48210-37T80iXZU675..T4..30T201905

main48210-37T90iXZU600..DM5..30T201905

main48210-37U00iXZU675..DM5..30T201905

main48210-37U20iXZU605..30T..IV5201905

main48210-3V010iBZU600,TRC600,XZC600,XZU600..T4..20T201107-201502

sub48210-3V011

main48210-3V010iBZU600,TRC600,XZC600,XZU600..T4..20T201107-201502

sub48210-3V011

main48210-3V011iXZC600,XZU600..T4201503-201705

main48210-3V011iXZC600,XZU600..T4201503-201705

main48210-3V360iBZU600..T3201107

main48210-3V400iXZU605..T5..30T201107-201502

sub48210-3V401

main48210-3V401iXZU600..6FC..DCRTK..IV4201503-201705

main48210-3V401iXZU605..T5..5F..30T201705

main48210-3V420iXZU630..30T201107-201510

sub48210-3V421

main48210-3V421iXZU630..30T..DCRTJ201511-201705

main48210-3V600iBZU600,XZU600..DM6201107-201510

sub48210-3V601

main48210-3V601iXZU600..DM6..(DCRTJ,DCRTK)201511-201705

main48210-3V601iXZU600,605..DM6..20T201905

48210QBUSH(FOR REAR SPRING SHACKLE)

main90384-28009iXZU600,640,650..6F201107-201705

main90389-16026iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201705

48344STOPPER, BUMPER, REAR

main48344-37050iTRU600..T4..IV3201107-201705

main48344-37050iXZU605..30T..(DCRTJ,DCRTK);XZU600..(DM3,DM6)..(DCRTJ,DCRTK)201705

main48344-37090iXZU685,695;XZC655,XZU65#..(T3,T4)..20T201107-201705

main48344-37100iXZU675..30T201107-201705

main48344-37110iXZC675,XZU610,675..DM5201107-201705

main48344-37140iXZU642..6FC;XZU642..IV3;XZU602,640..IV6;XZU600..6F..DCVTO201905

main48344-37140iXZU655..T2;XZU600,640,650..6F201107-201705

main48344-37170iXZU605..T4..DCRTK;XZU645..20T..DCRTJ;XZC605,XZU600,605..T5..20T..(DCRTJ,DCRTK)201107-201705

main48344-37190iXZC600..ST201107-201705

main48344-37200iXZU600,640,645,650,655..30T..(DCRTJ,DCRTK)201107-201705

main48344-37230iXZC630,XZU630201107-201705

main48344-37250iXZC610,XZU620201107-201705

main48344-37370iTRC600..T4201107-201705

main48344-37380iXZC605..06S201107-201705

main48344-37390iXZC605,XZU605..T2..(DCRTH,DCRTJ)201107-201705

main48344-37400iXZU600,602,640,642..40T201905

main48344-37420iXZU630..30T201905

main48344-37450iXZU600..DM3;XZU605..30T..(CBU,IV3)201905

main48344-37460iXZU675..T4..30T201905

48422ASUPPORT, REAR SPRING PIN

main48422-36090iXZU600..6FC..IV4201705

main48422-36090iXZU645..20T..DCRTJ;BZU600,TRC600,TRU600..DM5,DM6,T4;XZC60#,610,630,645,675,XZU600,605,610,620,630,675..(03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK)201107

main48422-37010iXZU645..30T;BZU600,TRU600,XZU600..T3..30T;XZC655,XZU640,650,655,685,695..20T,30T201107-201905

48481SEAT, REAR SPRING, UPPER

main48481-37060iXZU630201107-201705

main48481-37071iXZC655;XZC600,XZU655..T2,T5201107-201705

main48481-37081iXZU655..T4..30T201905-202102

sub48481-37082

main48481-37081iXZU600,645..(30T,40T)..(DCRTJ,DCRTK,DCRVT);XZU602,640,642,65#,685,695..(T3,T4)..(DCRTJ,DCRTK,DCRVT)201107-202102

sub48481-37082

main48481-37082iXZU650,655,685,695..T3,T4;XZU600,602,64#,652..(DM7,T3,T4)..(30T,35T,40T)202103

main48481-37110iXZC630..DCRTJ201107-201705

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80673iXZU645..30T;BZU600,TRU600,XZU600..T3..30T;XZC655,XZU640,65#,685,695..20T,30T201107-201507

sub48531-80796

main48531-80684iXZC605..VAN201107-201507

sub48531-80799

main48531-80744iXZC605,645,XZU605,645..(T2,T4)..20T201107-201507

sub48531-80800

main48531-80745iXZC600..ST201107-201507

sub48531-80794

main48531-80746iXZC630,XZU630201107-201507

sub48531-80797

main48531-80751iXZC610201107-201507

sub48531-80801

main48531-80770iXZU605..T4..30T;XZC605,XZU605..T5;BZU600,TRC600,TRU600,XZC600,675,XZU600,610,620,675..(DM3,DM5,DM6,T4,T5)..WT201107-201507

sub48531-80795

main48531-80780iXZU600,640,650..35T,40T201107-201507

sub48531-80798

main48531-80794iXZC600..ST201507-201705

main48531-80795iXZU605..T4..30T..DCRTJ;XZC605,XZU605..T5..(DCRTJ,DCRTK);XZC600,675,XZU600,610,620,675..(DM3,DM5,DM6,T4,T5)..WT..(DCRTH,DCRTJ,DCRTK)201507-202104

main48531-80795iXZU605..30T;XZC675,XZU675;XZC605,XZU600,605..(DM5,DM6,T5)..20T201705-202104

main48531-80796iXZU600,645..30T..(DCRTJ,DCRTK);XZC655,XZU640,650,655,685,695..DCRTJ,DCRTK201507-201909

sub48531-80833

main48531-80797iXZC630,XZU630201507-202104

main48531-80798iXZU600,602,640,642,650,652..(35T,40T)..(DCRTK,DCRVT)201507-201705

main48531-80799iXZC605..03S201507-201705

main48531-80800iXZC605,645,XZU605,645..(T2,T4)..20T..(DCRTH,DCRTJ,DCRTK)201507-202104

main48531-80801iXZC600201507-202104

main48531-80825iXZU630..30T;XZU600,602,640,642,650,652..35T,40T201905-202104

main48531-80826iXZU600..DM3;XZU600..DM5..30T201905-202104

main48531-80833iBZU600..T3201909-202104

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19011iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201107-201705

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011iBZU600201107-201705

48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH

main48522-37030iXZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT201107-201705

main48522-37030iXZU645..20T..DCRTJ;XZC60#,610,630,645,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK)201705

48533APIN, REAR SHOCK ABSORBER LOWER PIVOT, LH

main48522-37030iXZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT201107-201705

main48522-37030iXZU645..20T..DCRTJ;XZC60#,610,630,645,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK)201705

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80673iXZU645..30T;BZU600,TRU600,XZU600..T3..30T;XZC655,XZU640,65#,685,695..20T,30T201107-201507

sub48531-80796

main48531-80684iXZC605..VAN201107-201507

sub48531-80799

main48531-80744iXZC605,645,XZU605,645..(T2,T4)..20T201107-201507

sub48531-80800

main48531-80745iXZC600..ST201107-201507

sub48531-80794

main48531-80746iXZC630,XZU630201107-201507

sub48531-80797

main48531-80751iXZC610201107-201507

sub48531-80801

main48531-80770iXZU605..T4..30T;XZC605,XZU605..T5;BZU600,TRC600,TRU600,XZC600,675,XZU600,610,620,675..(DM3,DM5,DM6,T4,T5)..WT201107-201507

sub48531-80795

main48531-80780iXZU600,640,650..35T,40T201107-201507

sub48531-80798

main48531-80794iXZC600..ST201507-201705

main48531-80795iXZU605..30T;XZC675,XZU675;XZC605,XZU600,605..(DM5,DM6,T5)..20T201507-202104

main48531-80795iXZU605..T4..30T..DCRTJ;XZC605,XZU605..T5..(DCRTJ,DCRTK);XZC600,675,XZU600,610,620,675..(DM3,DM5,DM6,T4,T5)..WT..(DCRTH,DCRTJ,DCRTK)201705-202104

main48531-80796iXZU645..30T;XZC655,XZU600,640,650,655,685,695..(T2,T3,T4)..DCRWD201507-201909

sub48531-80833

main48531-80797iXZC630,XZU630..DCRTJ201507-202104

main48531-80798iXZU600,640,650..6F201507-201705

main48531-80799iXZC605..03S201507-201705

main48531-80800iXZC605,645,XZU605,645..(T2,T4)..20T..(DCRTH,DCRTJ,DCRTK)201507-202104

main48531-80801iXZC610201507-202104

main48531-80825iXZU630..30T;XZU600,602,640,642,650,652..35T,40T201905-202104

main48531-80826iXZU600..DM3;XZU600..DM5..30T201905-202104

main48531-80833iXZU645..30T;XZC655,XZU600,640,650,655,685,695..(T2,T3,T4)..DCRWD201909-202104

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-37010iXZC600..6FC..ST201107-201705

9010516021

main90105-16021

9010516067

main90105-16067

9010516070

main90105-16070

9011908336

main90119-08336

9011912088

main90119-12088

9017816007

main90178-16007

9017916030

main90179-16030

9020116035

main90201-16035

9413061600

main94130-61600

9418401001

main94184-01001

9418461601

main94184-61601

27 parts on this diagram · 49 diagrams in section
