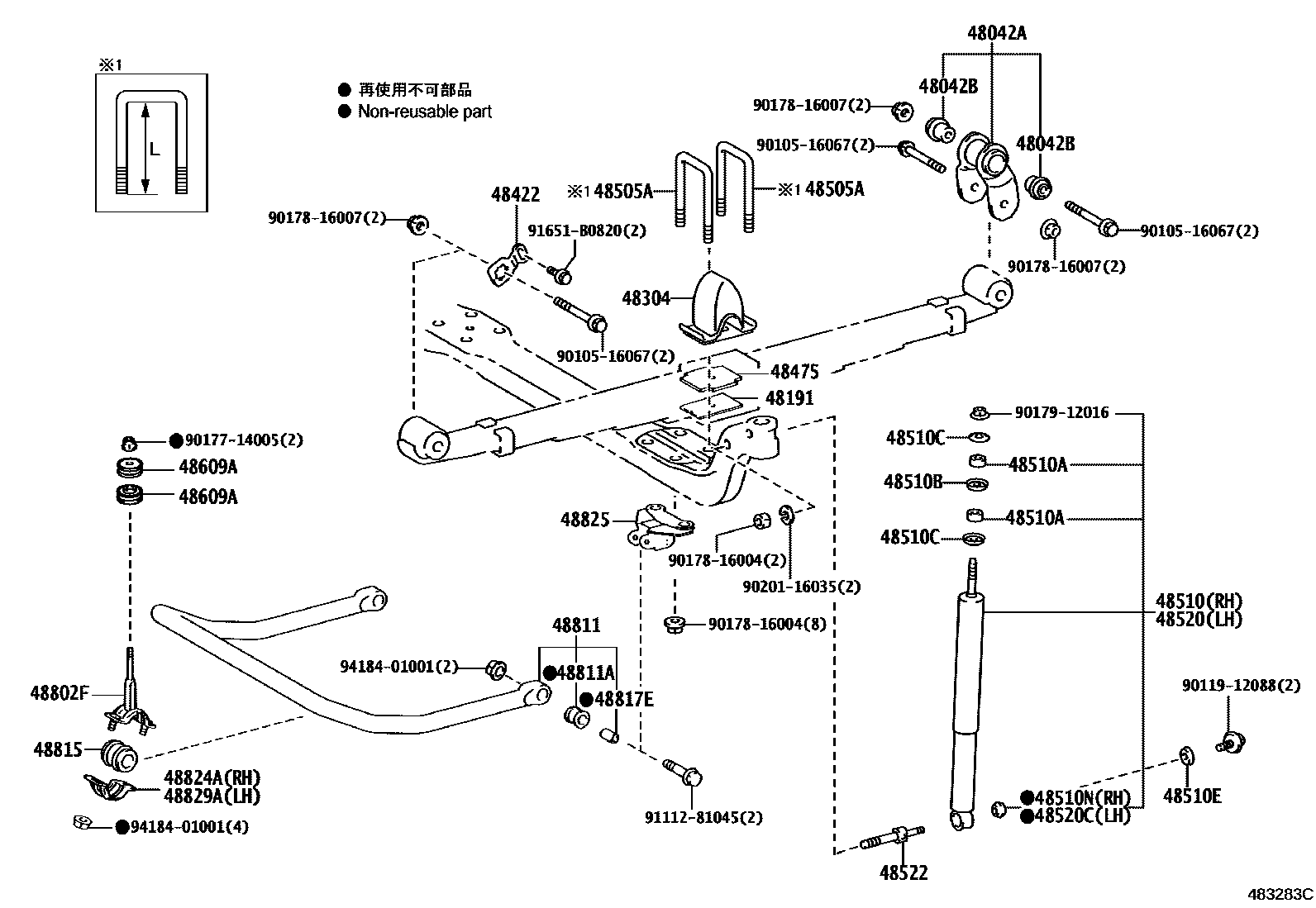

FRONT SPRING & SHOCK ABSORBER

0001 1��(��������) 0002 1��(��������) 0003 1 0004 1 0005 12-LEAF 0006 12-LEAF 0007 12-LEAF 0008 12-LEAF 0009 12-LEAF 0010 12-LEAF(�������) 0011 12-LEAF 0012 12-LEAF 0013 12-LEAF(�������) 0014 12-LEAF 0015 12-LEAF(�������) 0016 12-LEAF 0017 12-LEAF(�������) 0018 12-LEAF 0019 12-LEAF(�������) 0020 12-LEAF 0021 13-LEAF 0022 13-LEAF 0023 13-LEAF 0024 13-LEAF 0025 13-LEAF 0026 13-LEAF 0028 13-LEAF 0029 13-LEAF 0030 13-LEAF 0031 13-LEAF 0032 13-LEAF 0033 13-LEAF 0034 14-LEAF 0035 14-LEAF

48042ASHACKLE SUB-ASSY, FRONT SPRING, NO.2

main48042-37020iTRC600..T4;TRU600..T4..IV3201107-201705

48042BBUSH, FRONT SPRING NO.2 SHACKLE

main90389-16026iXZC600,610,630,XZU600,602,610,620,630,640,642,650,652..DCRTH,DCRTJ,DCRTK,DCRVT201705

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-37060iXZU652..DCRTK..(CBU,IV3);XZC600,610,630,XZU600,610,620,630,640,650..DCRTH,DCRTJ,DCRTK201107-201705

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-37040iTRC600..T4;TRU600..T4..IV3201107-201705

main48304-37050iXZU620,630..5F..30T201107-201705

48422SUPPORT, FRONT SPRING PIN

main48422-37010iTRC600..T4;TRU600..T4..IV3201107-201705

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iBZU600201107-201705

48505ABOLT, U(FOR FRONT SPRING)

main90117-16065iXZU600..IV5,IV7;XZU600..20T..IV6201107-201705

main90117-16065iBZU600..IV5201301

main90117-16065iXZU600..20T..IV6201905

main90117-16066iXZC610,630,XZU610,630..20T..(DCRTJ,DCRTK)201107-201705

main90117-16066iXZC610,630,XZU610,630..20T..(DCRTJ,DCRTK)201705

main90117-16066iXZU630..30T..DCRTJ201107-201907

main90117-16066iXZU630..30T..DCRTJ201705

main90117-16066iXZU630..30T201107-201705

main90117-16066iXZU630..30T201107-201705

main90117-16066iXZU650..20T201905-201906

main90117-16073iXZU650..35T..(CBU,IV3)201107-201705

main90117-16075iXZU650..35T..(CBU,IV3)201107-201705

main90117-16080iXZC600,610,630,XZU610,630..(DM5,DM7,T5)..20T..(DCRTH,DCRTJ,DCRTK)201705

main90117-16080iBZU600..30T201107-201907

main90117-16080iXZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3)201705

main90117-16080iXZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3201107-201705

main90117-16080iXZU630..30T201107-201705

main90117-16080iXZU630..30T201107-201705

main90117-16081iXZU600,602,640,642,650,652..(35T,40T)..(DCRTK,DCRVT)..IV6201107-201705

main90117-16082iXZU600..20T..DCRTK;XZU600..(DCRTJ,DCRTK)..(IV5,IV7)201705

main90117-16082iBZU600..30T201107-201705

main90117-16082iXZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3201107-201705

main90117-16082iXZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3201107-201705

main90117-16082iXZU650..20T..DCRTJ;XZC600,XZU600,620,640..(DM5,T3,T4,T5)..WT..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV6)201705

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80349iXZC675,XZU675,685,695201107-201412

sub48510-80768

main48510-80358iXZC605,645,655,XZU605,645,655201107-201601

sub48510-80839

main48510-80768iXZC675,XZU675,685,695201412-201705

main48510-80839iXZC605..06S201601-201705

main48511-80118iXZC600..ST201107-201705

main48511-80120iXZU600..6FC..40T201107-201705

main48511-80121iTRC600..DM5;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)201107-201705

main48511-80177iXZU600..DM3;XZU600..DM5..30T201905

main48511-80178iXZU630..30T;XZU600,602,640,642,650,652..35T,40T201905

48510ACUSHION, FRONT SHOCK ABSORBER

main48507-37010iXZC605,645,655,XZU605,645,655..DCRTH,DCRTJ,DCRTK201107-201705

main90948-01059iXZC675,XZU675,685,695201107-201705

main90948-01071iXZC600,630,XZU600,602,630,640,642,650,652201107-201705

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02054iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

main90948-02077iXZC675,XZU675,685,695201107-201705

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90560-12076iXZC675,XZU675,685,695..DCRTJ,DCRTK201107-201705

main90948-02009iXZC600,630,XZU600,602,630,640,642,650,652201107-201705

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03011iXZC600,610,630,XZU600,602,610,620,630,640,642,650,652..DCRTH,DCRTJ,DCRTK,DCRVT201107-201705

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90385-19011iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

main90389-14055iXZC675,XZU675,685,695201107-201705

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-80349iXZC675,XZU675,685,695201107-201412

sub48510-80768

main48510-80358iXZC605,645,655,XZU605,645,655201107-201601

sub48510-80839

main48510-80768iXZC675,XZU675,685,695..DCRTJ,DCRTK201412-201705

main48510-80839iXZC605..06S201601-201705

main48511-80118iXZC600..6FC..ST201107-201705

main48511-80120iXZU650..IV6;XZU600..T4..6FC;XZU600..(DM3,T3,T4,T5)..MTM..(20T,40T);XZC600,610,630,XZU610,630,640,650..(20T,40T)..WT201107-201705

main48511-80121iBZU600..30T;BZU600..IV5201107-201705

main48511-80177iXZU600..DM3;XZU600..DM5..30T201905

main48511-80178iXZU630..30T;XZU600,602,640,642,650,652..35T,40T201905

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90385-19011iTRC600..T4;TRU600..T4..IV3201107-201705

main90389-14055iXZC675,XZU675,685,695..DCRTJ,DCRTK201107-201705

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-37030iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU60201107-201705

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-37020iXZC605..06S201107-201705

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-37020iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201505

main48609-37020iTRC600..T4;TRU600..T4..IV3201107-201705

main48609-37020iTRC600..T4;TRU600..T4..IV3201107-201705

48802FLINK SUB-ASSY, FRONT STABILIZER

main48802-37080iXZC605,645,655,XZU605,645,655..IV3,IV6201107-201304

sub48802-37081

main48802-37080iXZC605,645,655,XZU605,645,655..IV3,IV6201107-201304

sub48802-37081

main48802-37081iXZU655..SCB..(DCRTJ,DCRTK)..CBU;XZC605,645,655,XZU605,645..(DCRTH,DCRTJ,DCRTK)..CBU201305-201705

main48802-37081iXZC605,645,655,XZU605,645,655..IV3,IV6201305-201705

main48802-37090iBZU600..IV5;XZU600..SCB..(DM6,T3);BZU600,TRU600,XZU640,650..SCB..(30T,35T,40T)201107-201304

sub48802-37091

main48802-37091iBZU600..30T;BZU600..IV5201305-201705

main48802-37110iBZU600,TRC600,XZC600,XZU600,650..20T..(CBU,IV3)201107-201304

sub48802-37111

main48802-37111iTRC600..DM5;XZC600..6FC..ST201305-201705

48811BAR, STABILIZER, FRONT

main48804-37050iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

main48811-37090iXZC605,645,655,XZU605,645,655..(03S,T2,T3,T4,T5)..CBU201107-201705

main48811-37090iXZC605,645,655,XZU605,645,655..IV3,IV6201107-201705

main48811-37100iXZC605,645,655,XZU605,645,655..IV3,IV5,IV6201905

main48811-37100iXZC605,645,655,XZU605,645,655..IV3,IV5,IV6201905

48811ABUSH(FOR FRONT STABILIZER BAR)

main90385-13009iXZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)201107-201705

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-37070iXZC605,645,655,XZU605,645,655..(DCRTH,DCRTJ,DCRTK)..CBU201107-201705

main48815-37070iXZC605,645,655,XZU605,645,655..(DCRTH,DCRTJ,DCRTK)..CBU201107-201705

main48815-37080iXZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)201107-201705

main48815-37110iXZC605,645,655,XZU605,645,655..CBU201905

main48815-37110iXZC605,645,655,XZU605,645,655..IV3,IV5,IV6201905

48817ESPACER(FOR STABILIZER BAR)

main90560-10044iXZC600,XZU600,602,640,642,650,652..SCB..(DCRTH,DCRTJ,DCRTK,DCRVT)201107-201705

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-37060iXZC605,645,655,XZU605,645,655..IV3,IV6;BZU600,TRC600,TRU600,XZC600,XZU600,640,650..CBU,IV3,IV5,IV6,IV7201107-201304

main48824-37060iXZC605,645,655,XZU605,645,655..IV3,IV6;BZU600,TRC600,TRU600,XZC600,XZU600,640,650..CBU,IV3,IV5,IV6,IV7201107-201304

main48824-37061iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201305-201505

main48824-37061iTRC600..T4;TRU600..T4..IV3201305-201705

main48824-37061iTRC600..T4;TRU600..T4..IV3201305-201705

48825BRACKET, STABILIZER, NO.2

main48825-37060iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-37060iXZC605,645,655,XZU605,645,655..IV3,IV6;BZU600,TRC600,TRU600,XZC600,XZU600,640,650..CBU,IV3,IV5,IV6,IV7201107-201304

main48824-37060iXZC605,645,655,XZU605,645,655..IV3,IV6;BZU600,TRC600,TRU600,XZC600,XZU600,640,650..CBU,IV3,IV5,IV6,IV7201107-201304

main48824-37061iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201305-201505

main48824-37061iTRC600..T4;TRU600..T4..IV3201305-201705

main48824-37061iTRC600..T4;TRU600..T4..IV3201305-201705

9010516067

main90105-16067

9011912088

main90119-12088

9017714005

main90177-14005

9017816004

main90178-16004

9017816007

main90178-16007

9017912016

main90179-12016

9020116035

main90201-16035

9111281045

main91112-81045

91651B0820

main91651-B0820

9418401001

main94184-01001

36 parts on this diagram · 34 diagrams in section
