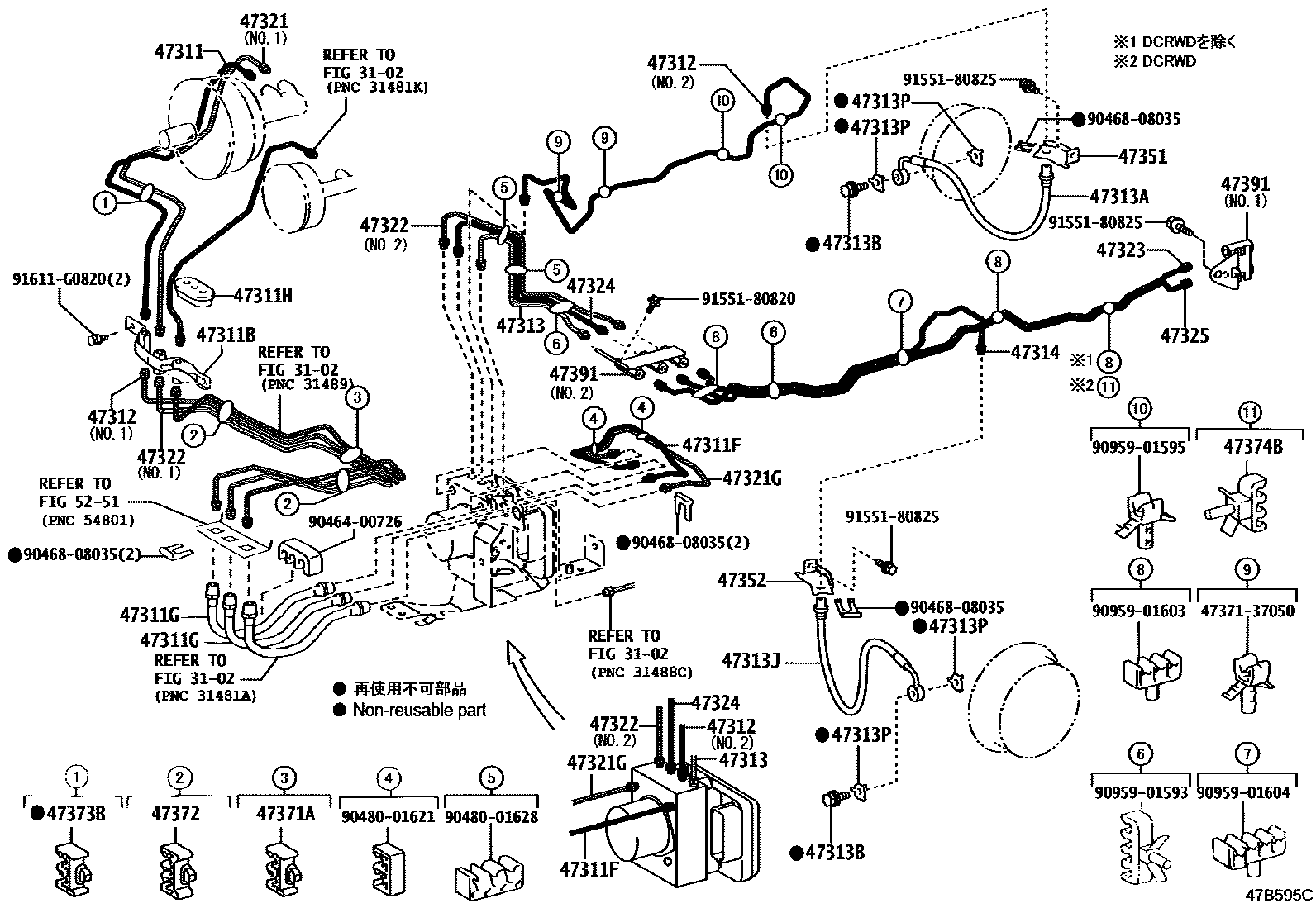

BRAKE TUBE & CLAMP

0001 1 0003 1 0006 1 0008 1 0011 1 0012 1��(��������) 0017 1��(��������) 0019 1 0020 1 0022 1 0023 1 0024 1 0025 1 0026 1 0027 1 0028 1 0029 1 0030 1 0031 1 0032 1 0033 1 0034 1 0035 1 0036 1 0037 1 0038 1 0039 1 0040 1 0042 1 0047 1 0049 1 0054 1 0059 1 0060 1 0061 1 0063 1 0064 1 0066 1 0070 1 0073 1

3102

47311TUBE, FRONT BRAKE, NO.1

main47311-37590iXZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU60#,610,620,630,64#,65#,675,685,695201107-201204

main47311-37591iXZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU60#,610,620,630,64#,65#,675,685,695201204-201205

sub47311-37592

main47311-37592iBZU600201205-201808

sub47311-37760

main47311-37600iXZC60#,610,630,645,655..WT201107-201204

main47311-37601iXZC60#,610,630,645,655..WT201204-201205

sub47311-37602

main47311-37602iXZC605..06S201205-201808

sub47311-37750

main47311-37750iXZC60#,630,645,655201809

sub47311-37751

main47311-37760iBZU600201809

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-37460iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201705

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-37611iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02F90iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201905

main90947-02J57iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

47311HGROMMET(FOR BRAKE TUBE)

main47256-37020iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK,DCRVT)201408-201705

main47256-37030iXZC60#,610,630,645,655,XZU600,605,610,620,64#,650,655..6FC..(DCRTH,DCRTJ,DCRTK,DCRVT)201408-201705

main90480-01311iXZC60#,610,630,645,655,XZU60#,610,64#,65#..6FC201107-201408

47312TUBE, FRONT BRAKE, NO.2

main47312-37A70iXZU600..IV7;XZC60#,610,630,645,655,XZU60#,610,64#,65#..6FC201107-201205

sub47312-37A71

main47312-37A70iXZU600..IV7;XZC60#,610,630,645,655,XZU60#,610,64#,65#..6FC201107-201205

sub47312-37A71

main47312-37A71iXZU600..DCRTK..IV7;XZC60#,610,630,645,655,XZU600,605,610,620,64#,650,655..6FC..(DCRTH,DCRTJ,DCRTK,DCRVT)201205-201705

main47312-37A71iXZU640,650..T4..6FC;XZU640..T3..6FC..CBU;XZU650..6FC..DCRTK..CBU;XZU650..T3..6FC..30T..IV3;XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201205-201705

main47312-37A80iTRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3201107-201705

main47312-37A91iTRC600..T4;TRU600..T4..IV3201107-201705

main47312-37B00iXZU600,640,650..6F201107-201705

main47312-37B10iXZC605,645,655,XZU605,645,655..DCRTH,DCRTJ,DCRTK201107-201705

main47312-37B20iXZC610,630,XZU610,620,630201107-201705

main47312-37B30iXZC675,XZU675,685,695201107-201705

main47312-37F70iXZU600..IV7201905

main47312-37F70iXZU600..IV7201905

main47312-37F80iXZC600,630,XZU600,630,640,650..DCRWD201905

main47312-37F90iXZU600,602,640,642,650,652..35T,40T201905

main47312-37G00iXZC605,645,655,XZU605,645,655201905

main47312-37G10iXZC675,XZU675,685,695201905

47313TUBE, FRONT BRAKE, NO.3

main47313-37560iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A72iTRC600..T4;TRU600..T4..IV3201107-201705

main90947-02D54iXZC675,XZU675,685,695201107-201705

main90947-02D99iXZU600,602,640,642,650,652..(35T,40T)..(DCRTK,DCRVT)201107-201705

main90947-02E92iXZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5201107-201705

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201705

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02B27iTRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3.201107-201705

main90947-02D98iXZC675,XZU675,685,695..DCRTJ,DCRTK201107-201705

main90947-02E00iXZU600,640,650..6F201107-201705

main90947-02E93iXZC605..06S201107-201705

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201107-201705

47314TUBE, FRONT BRAKE, NO.4

main47314-37760iXZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC600,XZU600..(20T,30T)..WT201107-201705

main47314-37770iXZU600,602,640,642,650,652..(35T,40T)..(DCRTK,DCRVT)201107-201705

main47314-37780iXZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5201107-201705

main47314-37790iBZU600201107

main47314-37800iXZC610,630,XZU610,620,630..DCRTJ,DCRTK201107-201705

main47314-37810iXZC675,XZU675,685,695201107-201705

main47314-37A50iXZC675,XZU675,685,695201905

main47314-37A60iXZC600,630,XZU600,630,640,650..DCRWD201905

main47314-37A70iXZU600,602,640,642,650,652..35T,40T201905

main47314-37A80iXZC605,645,655,XZU605,645,655201905

47321TUBE, REAR BRAKE, NO.1

main47321-37560iXZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU60#,610,620,630,64#,65#,675,685,695201107-201204

main47321-37561iXZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU60#,610,620,630,64#,65#,675,685,695201204-201205

sub47321-37562

main47321-37562iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,62201205-201808

sub47321-37750

main47321-37570iXZC60#,610,630,645,655..WT201107-201204

main47321-37571iXZC60#,610,630,645,655..WT201204-201205

sub47321-37572

main47321-37572iXZC60#,610,630,645,655..WT..(DCRTH,DCRTJ)201205-201808

sub47321-37740

main47321-37740iXZC60#,610,630,645,655..WT..(DCRTH,DCRTJ)201809

main47321-37750iXZC675,XZU600,605,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT;XZC600,XZU602,610,620,630,642,652..(DM5,DM7,T3,T5)..(DCRTH,DCRTJ,DCRTK,DCRVT)201809

sub47321-37751

47321GTUBE, REAR BRAKE, FRAME NO.1

main47321-37580iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

47322TUBE, REAR BRAKE, NO.2

main47322-37A80iXZU600..IV7;XZC60#,610,630,645,655,XZU60#,610,64#,65#..6FC201107-201205

sub47322-37A81

main47322-37A80iXZU600..IV7;XZC60#,610,630,645,655,XZU60#,610,64#,65#..6FC201107-201205

sub47322-37A81

main47322-37A81iXZU600..DCRTK..IV7;XZC60#,610,630,645,655,XZU600,605,610,620,64#,650,655..6FC..(DCRTH,DCRTJ,DCRTK,DCRVT)201205-201705

main47322-37A81iXZU675..30T..DCRTK..IV3;XZU602,605,642,650,652,685..MTM..(DCRTJ,DCRTK,DCRVT)..IV6;XZU600,640,645..(DM6,T3)..MTM..(DCRTJ,DCRTK,DCRVT)..(IV3,IV5,IV6)201205-201705

main47322-37A90iXZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;BZU600,XZC600,610,630,645,655..5F;XZC605,675,XZU60#,610,620,630,645,65201107-201609

sub47322-37A91

main47322-37A91iBZU600201609-201705

sub47322-37A92

main47322-37B00iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201107-201705

main47322-37G90iXZU600..IV7201905

main47322-37G90iXZU652..6F..IV6;XZU675..T4..30T..IV3;XZU602,605,650,685..IV5,IV6;XZU600,64#..(DM6,DM7,T3)..6F..(IV3,IV6)201905

47323TUBE, REAR BRAKE, NO.3

main47323-37680iXZC605..06S201107-201705

main47323-37690iXZU650..35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..(DM3,DM6,T3)..MTM;XZU640..T3..(6F,6FC)..(IV3,IV6);XZU600..SCB..(DM6,T3)..6FC..(20T,30T)201107-201705

main47323-37710iTRU600..CBU;TRU600..T3..IV3201107-201605

main47323-37730iXZC675,XZU675,685,695201107-201705

main47323-37760iXZC610,630,XZU610,620,630..DCRTJ,DCRTK201107-201705

main47323-37A00iXZU600,640..IV4201107-201705

main47323-37B70iXZC60#,645,655,XZU60#,64#,65#..CBU,IV3,IV5,IV6,IV7201905

main47323-37B81iXZC675,XZU675,685,695201905

main47323-37B91iXZC630,XZU630201905

main47323-37C00iXZU600,640..IV4201905

47324TUBE, REAR BRAKE, NO.4

main47324-37380iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201107-201705

47325TUBE, REAR BRAKE, NO.5

main47325-37410iXZU605,645,650,655..DCRTH,DCRTJ,DCRTK;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..(DCRTH,DCRTJ)201107-201705

main47325-37420iXZU602,642,650,652..DCRTK,DCRVT;XZU640..SCB..(DCRTJ,DCRTK,DCRVT);XZU600..SCB..(DM3,DM6,T3)..(DCRTJ,DCRTK,DCRVT)201107-201705

main47325-37440iTRU600..CBU;TRU600..T3..IV3201107-201605

main47325-37460iXZC675,XZU675,685,695..DCRTJ,DCRTK201107-201705

main47325-37480iXZC610,630,XZU610,620,630..DCRTJ,DCRTK201107-201705

main47325-37580iXZU600,640..IV4201107-201705

main47325-37640iXZC60#,645,655,XZU60#,64#,65#..CBU,IV3,IV5,IV6,IV7201905

main47325-37651iXZC675,XZU675,685,695201905

main47325-37661iXZC630,XZU630201905

main47325-37670iXZU600,640..IV4201905

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-37130iTRC600..T4;TRU600..T4..IV3201107-201705

main47351-37230iXZU600,602,640,642,650,652..35T,40T201107-201705

main47351-37330iXZC675,XZU675,685,695..DCRTJ,DCRTK201107-201705

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-37050iXZC600,630,XZU600,630,640,650..DCRWD201107-201705

main47352-37140iXZU600,602,640,642,650,652..35T,40T201107-201705

main47352-37200iXZC675,XZU675,685,695201107-201705

47371ACLAMP, BRAKE TUBE, NO.1

main47371-37110iXZU600..IV7;XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6F201204-201705

main47371-37110iXZC605..06S..6FC201204-201605

main47371-37140iXZU600..IV7;XZC60#,610,630,645,655,XZU60#,610,64#,65#..6FC201107-201204

main47371-37150iXZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..5F..30T..DCRTJ..CBU;XZC600,610,630,645,655,XZU650..MTM..(20T,35T);XZC605,675,XZU60#,610,620,630,645,655,675,685,6201107-201705

47372CLAMP, BRAKE TUBE, NO.2

main47371-37160iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6201905

main47371-37160iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

47373BCLAMP, BRAKE TUBE, NO.3

main47371-37110iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201204-201705

main47371-37360iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201204

47374BCLAMP, BRAKE TUBE, NO.4

main47371-37240iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

47391WAY, BRAKE TUBE

main47391-37280iXZC600..6FC..ST;XZU650..T4..30T;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU201107-201705

main47391-37300iXZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU640..T3..5F..DCRTJ..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)201107-201705

main47391-37300iTRU600..CBU;TRU600..T3..IV3201107-201705

main47391-37310iXZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU640..T3..5F..DCRTJ..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)201107-201705

main47391-37310iXZU600..6FC..IV5;XZU652..DCRTK..IV6;XZU602,640,642,650..MTM..(DCRTK,DCRVT)..(IV3,IV6);XZU600..(DM6,T3)..MTM..(DCRTJ,DCRTK,DCRVT)..(IV3,IV5,IV6)201107-201705

main47391-37310iXZU600..6FC..IV5;XZU652..DCRTK..IV6;XZU602,640,642,650..MTM..(DCRTK,DCRVT)..(IV3,IV6);XZU600..(DM6,T3)..MTM..(DCRTJ,DCRTK,DCRVT)..(IV3,IV5,IV6)201107-201705

main47391-37400iXZU600..IV7201107-201705

main47391-37400iXZU600..6FC..IV5;XZU605,650,685..IV6;XZU640..DCRTK..(IV3,IV6);XZU600,645..(DM6,T3)..MTM..(IV3,IV5,IV6)201107-201705

main47391-37670iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

5251

4737137050BRACKET, CONNECTOR

main47371-37050

9046400726

main90464-00726

9046808035

main90468-08035

9048001621

main90480-01621

9048001628

main90480-01628

9095901593

main90959-01593

9095901595

main90959-01595

9095901603

main90959-01603

9095901604

main90959-01604

9155180820

main91551-80820

9155180825

main91551-80825

91611G0820

main91611-G0820

39 parts on this diagram · 40 diagrams in section
