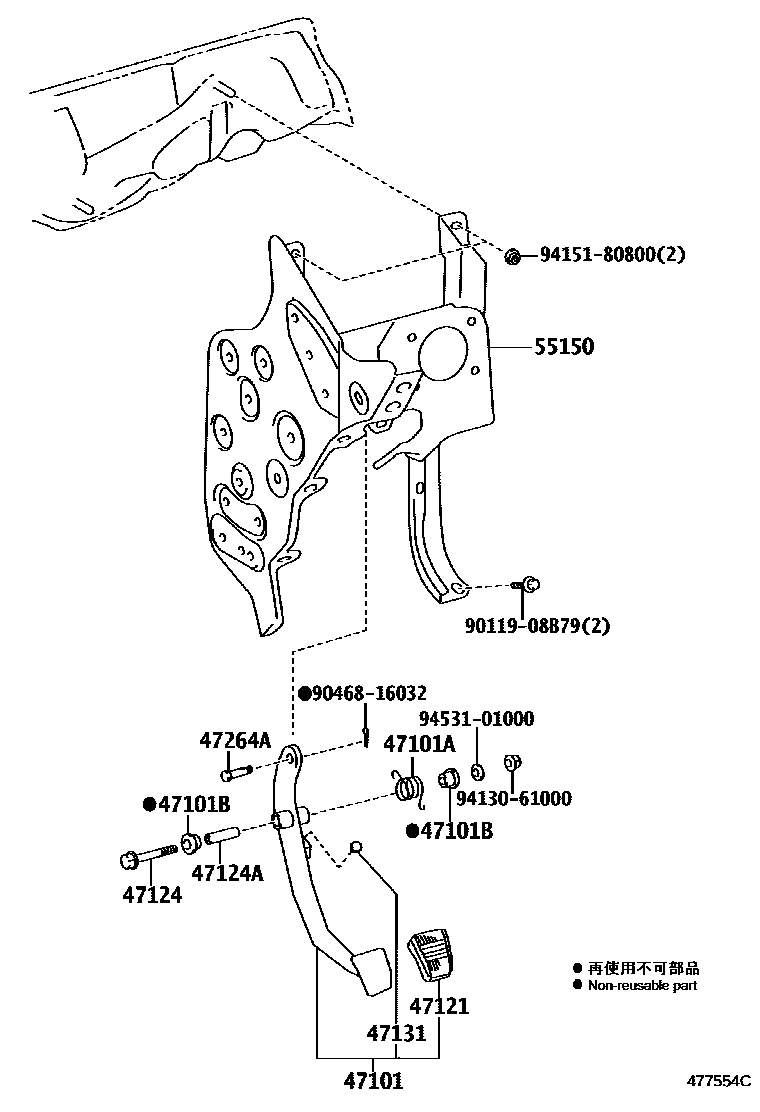

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-37120iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);BZU600,XZC675,XZU60#201107-201704

sub47101-37121

main47101-37121iXZC675,XZU600,605,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT;XZC600,XZU602,610,620,630,642,652..(DM5,DM7,T3,T5)..(DCRTH,DCRTJ,DCRTK,DCRVT)201705

main47101-37130iXZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT201107-201705

sub47101-37131

main47101-37131iXZC60#,630,645,655201705

main47101-37150iXZC675,XZU60#,630,64#,65#,675,685,695201905

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35039iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201110-201705

main90508-35324iBZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201109

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201705

47121PAD, BRAKE PEDAL

main31321-14020iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201705

main31321-52020iBZU600201705

47124SHAFT, BRAKE PEDAL

main91112-61070iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,6201107-201705

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iTRC600..T4;XZC605..06S;TRU600..T4..IV3201107-201705

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iXZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,201107-201705

47264APIN(FOR PUSH ROD)

main90240-10037iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201107-201705

55150BRACKET ASSY, PEDAL

main55150-37240iXZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU60#,610,620,630,64#,65#,675,685,695201107-201209

sub55150-37241

main55150-37241iXZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU60#,610,620,630,64#,65#,675,685,695201210-201408

main55150-37250iXZC60#,610,630,645,655..WT201107-201209

sub55150-37251

main55150-37251iXZC60#,610,630,645,655..WT201210-201408

main55150-37310iXZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,62201408-201705

main55150-37320iXZC60#,610,630,645,655..WT..(DCRTH,DCRTJ)201408-201705

main55150-37450iXZC675,XZU60#,630,64#,65#,675,685,695201905

sub55150-37451

main55150-37460iXZC60#,630,645,655201905

sub55150-37461

9011908B79

main90119-08B79

9046816032

main90468-16032

9413061000

main94130-61000

9415180800

main94151-80800

9453101000

main94531-01000

14 parts on this diagram · 2 diagrams in section
