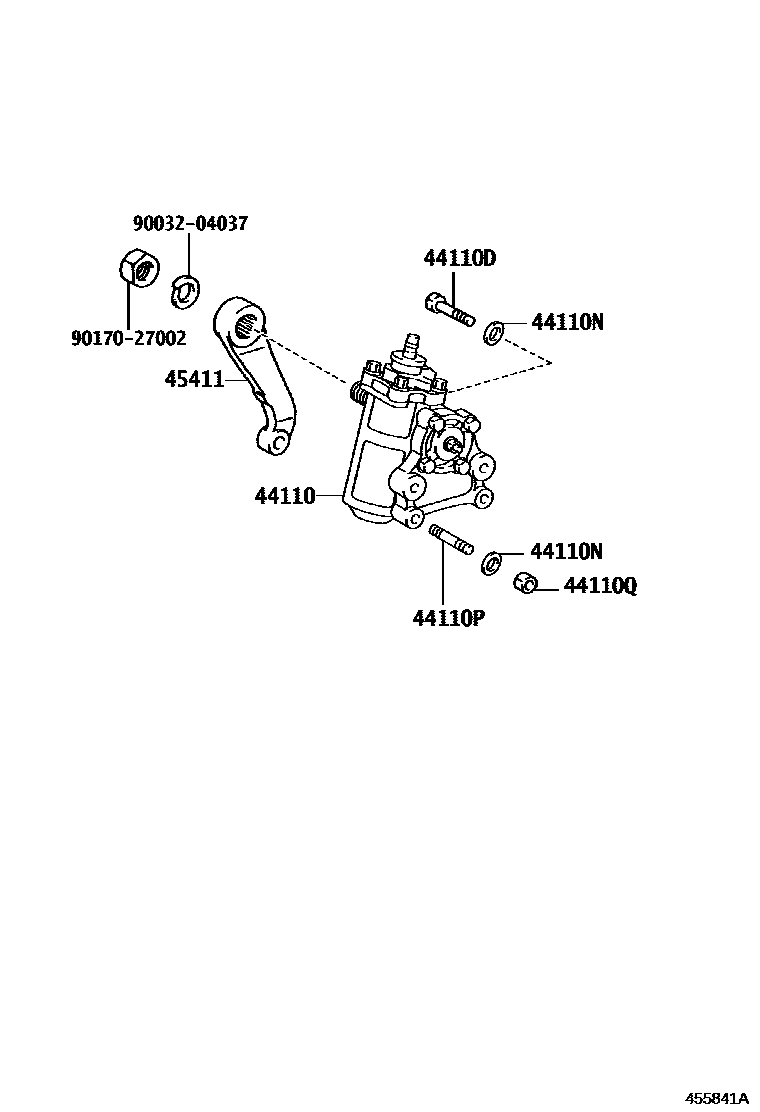

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

44110GEAR ASSY, POWER STEERING

main44110-37270iXZU600,640,650..6F;XZC610,630,XZU610,620,630201107-201705

main44110-37271iBZU600201711

44110DBOLT(FOR POWER STEERING GEAR)

main90101-14021×2iXZC610,630,XZU610,620,630..DCRTJ,DCRTK201705

main91554-L1475×2iTRC600..T4;TRU600..T4..IV3201107-201605

44110NWASHER, PLAIN(FOR POWER STEERING GEAR)

main94622-51400×2iXZC610,630,XZU610,620,630201107-201705

44110PBOLT, STUD(FOR POWER STEERING GEAR)

main90116-14020×2iBZU600201107

main90116-14022×2iXZC610,630,XZU610,620,630201107-201705

44110QNUT, FLANGE(FOR POWER STEERING GEAR)

main90178-14008×2iBZU600201107

45411ARM, PITMAN

main45411-37261iXZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC600,610,630,XZU600,610,620,630..(20T,30T)201107-201705

main45411-37271iXZU600,640,650..6F201107-201705

9003204037

main90032-04037

9017027002

main90170-27002

8 parts on this diagram · 4 diagrams in section
