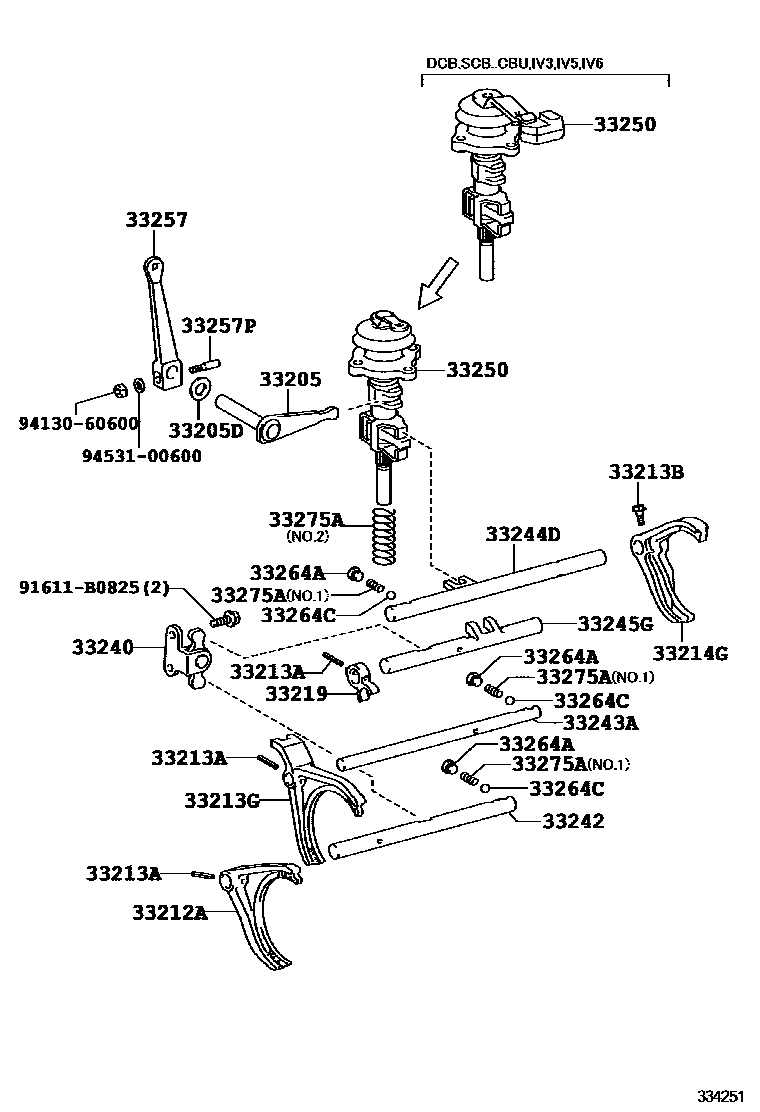

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1M550 0002 1H351 0003 1M153 0004 1MYY5A 0005 1MYY5A 0006 1MYY6S 0007 1RE60,RE62 0008 1RE50F

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-37040iXZU650..T4..5F..30T;XZU640..5F..DCRTJ..CBU;XZU650..T3..5F..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..5F..DCRTK..CBU¥1,260201107-201705

main33262-36050iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3¥1,740201107-201605

main33262-37020iBZU600¥1,960201107

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iXZC60#,645,655,XZU600,605,640,645,650,655..5F¥110201107-201705

mainSU00200357iXZC610,630,675,XZU602,610,620,630,642,652,675,685,695..MTM..(DCRTJ,DCRTK)201107-201705

33212AFORK, GEAR SHIFT, NO.1

main33210-37020iXZU650..5F..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..5F¥6,200201107-201705

main33212-36031iTRC600..T4;TRU600..T4..IV3¥3,450201107-201605

main33212-60050iBZU600¥3,090201107

mainSU00200240iXZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F201107-201705

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05002iXZC605..06S..5F¥90201107-201705

main90254-07003iXZU600,640,650..DCRVT¥200201705

33213BBOLT(FOR SHIFT FORK SET)

main90105-07001iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3¥90201107-201605

main90105-08211iXZU650..5F..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..5F¥90201107-201705

33213GFORK, GEAR SHIFT, NO.2

main33213-36041iTRC600..T4;TRU600..T4..IV3¥3,640201107-201605

main33213-60060iBZU600¥3,790201107

main33220-37020iXZU650..5F..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..5F¥6,600201107-201705

mainSU00200322iXZC610,630,XZU610,620,630..5F201107-201705

subSU002-00865¥10,900

mainSU00200517iXZC675,XZU675,685,695201107-201112

subSU002-01056¥8,400

mainSU00200939iXZU600,640,650..6F201107-201111

subSU002-01056¥8,400

mainSU00201056iXZC675,XZU602,642,652,675,685,695..DCRTJ,DCRTK201111-201707

subSU002-01090

mainSU00201090iXZC675,XZU602,642,652,675,685,695..DCRTJ,DCRTK201707

33214GFORK, GEAR SHIFT, NO.3

main33214-36060iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3¥3,110201107-201605

main33214-36070iXZU650..T4..5F..30T;XZU640..5F..DCRTJ..CBU;XZU650..T3..5F..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..5F..DCRTK..CBU¥4,160201309-201608

sub33214-37040¥2,410

main33214-37020iXZC60#,645,655,XZU60#,64#,65#..5F¥4,150201107-201309

sub33214-36070¥4,160

main33214-37040iXZC60#,645,655,XZU600,605,640,645,650,655..5F¥2,410201608-201705

mainSU00200245iXZC610,630,675,XZU610,620,630,675,685,695..5F..(DCRTJ,DCRTK)201107-201705

mainSU00200708iXZU600,640,650..6F201107-201705

33219PLATE, SHIFT FORK LOCK

main33219-37010iXZU650..T4..5F..30T;XZU640..5F..DCRTJ..CBU;XZU650..T3..5F..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..5F..DCRTK..CBU¥410201107-201705

33240BRACKET ASSY, REVERSE SHIFT ARM

main33240-37010iXZC60#,645,655,XZU60#,64#,65#..5F¥5,800201107-201301

sub33240-37011¥3,610

main33240-37011iXZU650..T4..5F..30T;XZU640..5F..DCRTJ..CBU;XZU650..T3..5F..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..5F..DCRTK..CBU¥3,610201301-201705

main33240-37020iXZC675,XZU675,685,695201905

main33240-37030iXZU600,640,650..DCRVT¥8,600201705

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-37050iXZU650..5F..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..5F¥2,660201107-201705

main33242-37060iXZU600,640,650..DCRVT201705-201903

sub33242-37061¥3,000

main33242-37061iXZU600,640,650..DCRVT¥3,000201903

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-37010iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3¥3,460201107-201605

main33243-37060iXZU650..T4..5F..30T;XZU640..5F..DCRTJ..CBU;XZU650..T3..5F..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..5F..DCRTK..CBU¥4,910201107-201511

sub33243-37061¥2,860

main33243-37061iXZC60#,645,655,XZU60#,64#,65#..(03S,DM3,DM6,T2,T3,T4,T5)..5F¥2,860201511-201705

main33243-37070iXZU600,640,650..DCRVT¥2,100201705

main33244-37040iBZU600¥4,190201107

mainSU00200323iXZC610,630,XZU610,620,630..5F201107-201705

mainSU00200519iXZC675,XZU675,685,695..DCRTJ,DCRTK201107-201705

mainSU00200709iXZU600,640,650..6F201107-201705

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-37020iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3¥2,240201107-201605

main33244-37070iXZC605..06S..5F¥3,090201107-201705

main33244-37080iXZC675,XZU675,685,695201905

main33244-37090iXZU600,640,650..DCRVT¥2,550201705

33245GSHAFT, GEAR SHIFT FORK, NO.4

main33242-37040iBZU600¥3,750201107

main33245-37030iXZC605..06S..5F¥2,270201107-201705

main33245-37040iXZC675,XZU675,685,695201905

main33245-37050iXZU600,640,650..DCRVT¥2,700201705

mainSU00201033iXZU602,642,652..DCRTK201107-201705

33250SHAFT ASSY, SHIFT & SELECT LEVER

main33250-37010iXZC60#,645,655,XZU60#,64#,65#..(DCB,SCB)..5F..(CBU,IV3,IV5,IV6)¥23,800201107-201109

sub33250-37011¥23,800

main33250-37011iXZC60#,645,655,XZU60#,64#,65#..(DCB,SCB)..5F..(CBU,IV3,IV5,IV6)¥23,800201109-201407

sub33250-37012¥15,200

main33250-37012iXZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(DCB,SCB)..5F..(CBU,IV3,IV5,IV6)¥15,200201408-201705

main33250-37020iXZU600..5F..(IV4,IV7);XZC605,XZU640..(DCB,VAN)..5F¥21,300201107-201109

sub33250-37021¥13,300

main33250-37021iXZU600..5F..(IV4,IV7);XZC605,XZU640..(DCB,VAN)..5F¥13,300201109-201705

33257LEVER, SELECT OUTER

main33257-37060iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3¥890201107-201605

main33257-37080iBZU600¥870201107

main33257-37090iXZC605..06S..5F¥1,050201107-201705

main33257-37140iXZC60#,645,655,675,XZU60#,64#,65#,675,685,695..MTM¥1,940201705

main33257-37160iXZC630,XZU630¥1,940201905

mainSU00200673iXZC610,630,675,XZU610,620,630,675,685,695..5F201107-201201

subSU002-00984¥3,670

mainSU00200983iXZU600,640,650..6F201107-201705

mainSU00200984iXZC610,630,675,XZU610,620,630,675,685,695..5F..(DCRTJ,DCRTK)201201-201705

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iXZC60#,645,655,XZU600,605,640,645,650,655..5F¥160201107-201705

mainSU00200271iXZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F201107-201705

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-10011iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3¥100201107-201605

main90250-10023iBZU600¥80201107

33264APLUG, INTERLOCK HOLE

main90341-12008iXZU600,640,650..DCRVT¥220201107-201705

33264CBALL (FOR SHIFT INTERLOCK)

main90360-10003iXZU650..T4..5F..30T;XZU640..5F..DCRTJ..CBU;XZU650..T3..5F..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..5F..DCRTK..CBU¥100201107-201705

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14155iBZU600¥70201107

main90501-14194iXZC60#,645,655,XZU600,605,640,645,650,655..5F¥80201107-201705

main90501-15055iXZU650..T4..5F..30T;XZU640..5F..DCRTJ..CBU;XZU650..T3..5F..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..5F..DCRTK..CBU¥120201107-201705

main90501-16145iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3¥90201107-201605

main90501-22075iXZC675,XZU675,685,695¥140201905

91611B0825

main91611-B0825¥160

9413060600

main94130-60600¥80

9453100600

main94531-00600¥120

23 parts on this diagram · 8 diagrams in section
