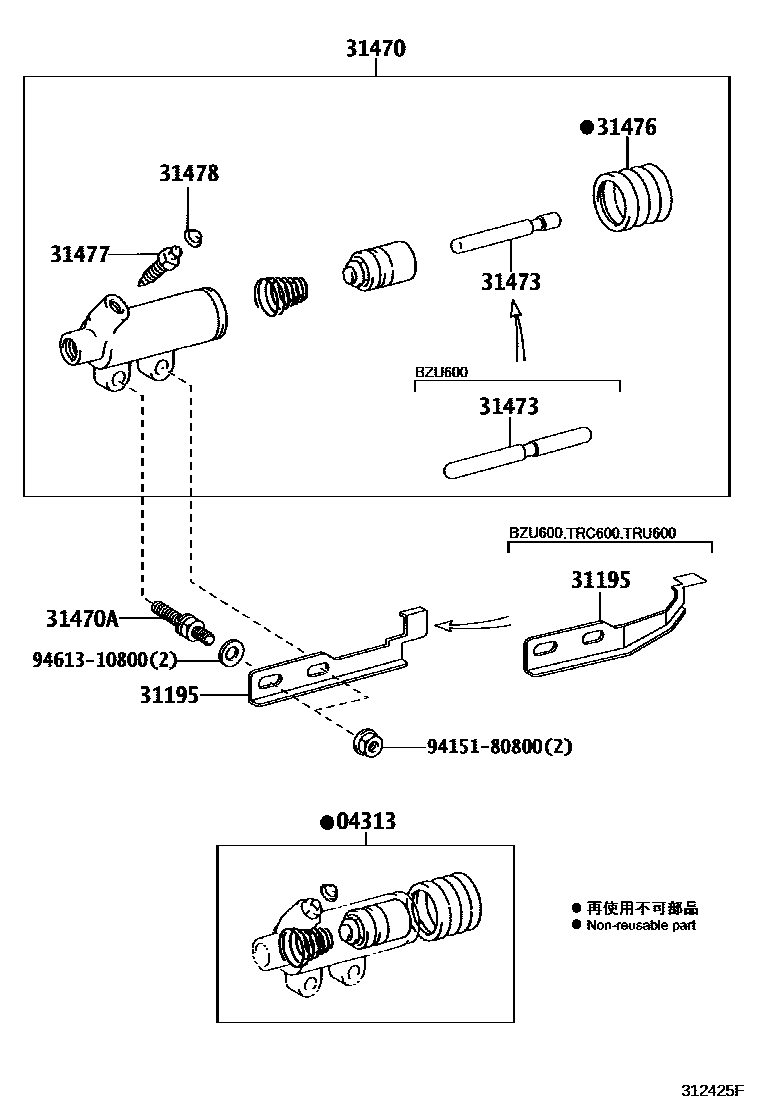

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37030iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..MTM201107-201306

main04313-37090iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..MTM201307-201410

main04313-37091iXZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03201411-201705

main04313-53010iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3201107-201605

31195PLATE, CLUTCH DISC WEAR INDICATOR

main31195-37060iTRC600..T4;TRU600..T4..IV3201107-201605

main31195-37070iBZU600201107

main31195-37110iXZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03201107-201705

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36311iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3201107-201605

main31470-37050iBZU600201107

main31470-37080iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..MTM201107-201306

sub31470-37081

main31470-37081iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..MTM201307-201410

main31470-37082iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM201411-201705

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iXZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03201107-201705

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-35050iTRC600..DM5;TRU600..CBU;TRU600..T3..IV3201107-201605

main31473-37030iBZU600201107

main31473-37050iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK,DCRVT)201107-201705

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM201107-201705

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iTRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3201107-201705

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iTRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3201107-201705

9415180800

main94151-80800

9461310800

main94613-10800

10 parts on this diagram · 1 diagram in section
