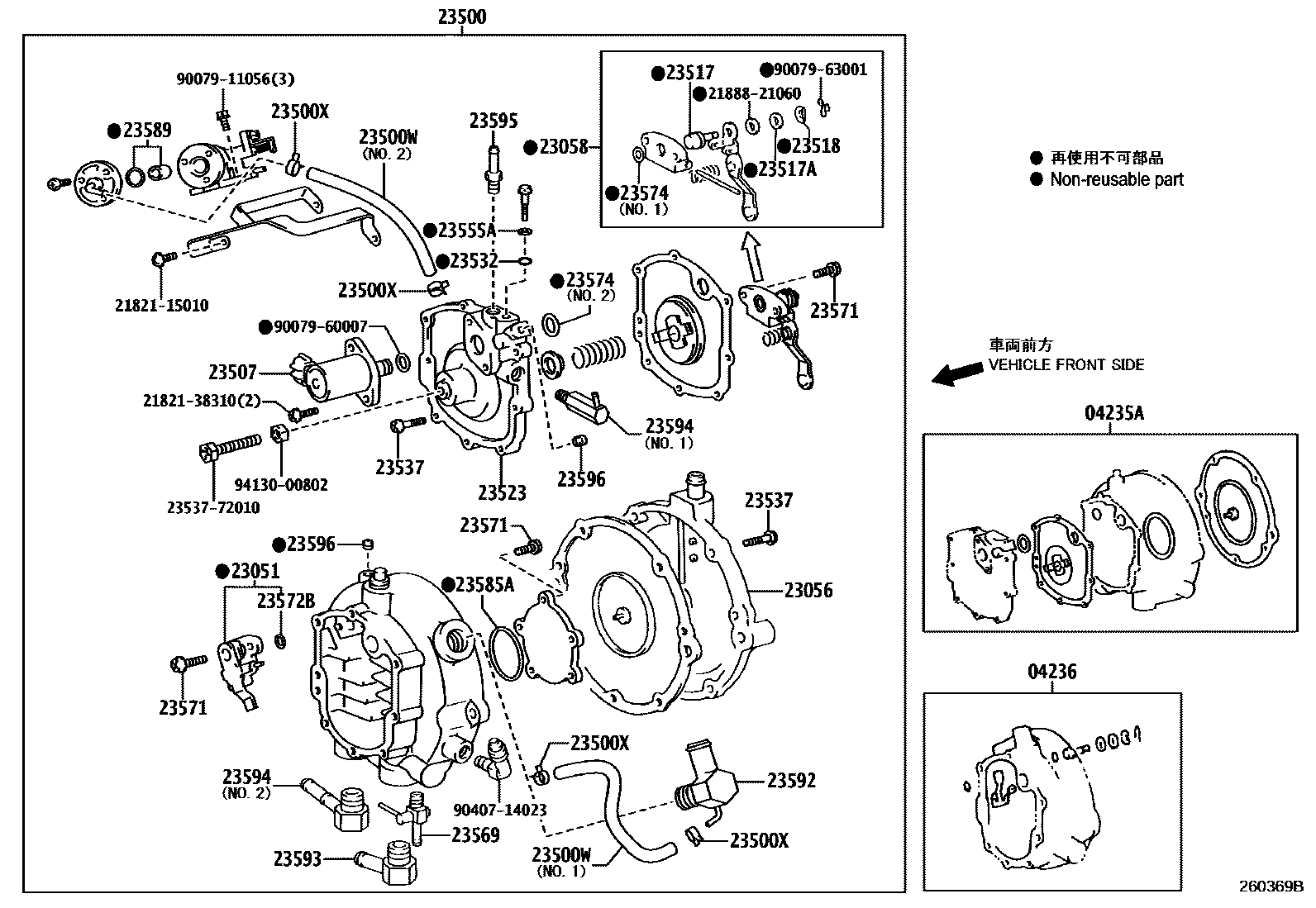

LPG OR CNG REGULATOR
04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE
04236VALVE KIT, LPG REGULATOR
23051VALVE SUB-ASSY, 1ST
23056COVER SUB-ASSY, 2ND REGULATOR
23058VALVE SUB-ASSY, 2ND
23500REGULATOR ASSY, LPG(CNG)
23500WHOSE, FUEL(FOR LPG REGULATOR)
23500XCLIP(FOR LPG REGULATOR FUEL HOSE)
23507VALVE SUB-ASSY, SOLENOID REGULATOR
23517VALVE, ELASTIC FACE
23517AWASHER(FOR ELASTIC FACE VALVE SET)
23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
23523COVER, 1ST REGULATOR
23532RING, O, NO.2(FOR BULB)
23537SCREW(FOR 2ND REGULATOR COVER SET)
23555AWASHER, IDLE ADJUST SCREW
23569COCK, DRAIN
23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
23572BPACKING
23574RING, O, NO.1(FOR BULB)
23585ARING, O(FOR PREHEATER)
23589FILTER, LPG REGULATOR
23592UNION, NO.2, FUEL HOSE
23593UNION, NO.3
23594UNION, NO.4, WATER HOSE
23595UNION, NO.5
23596PLUG(FOR LPG REGULATOR BODY)
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2188821060WASHER(FOR POSITIONER VALVE SET)
main21888-21060
2353772010SCREW(FOR 2ND REGULATOR COVER SET)
main23537-72010
9007911056
main90079-11056
9007960007
main90079-60007
9007963001
main90079-63001
9040714023
main90407-14023
9413000802
main94130-00802
36 parts on this diagram · 1 diagram in section
