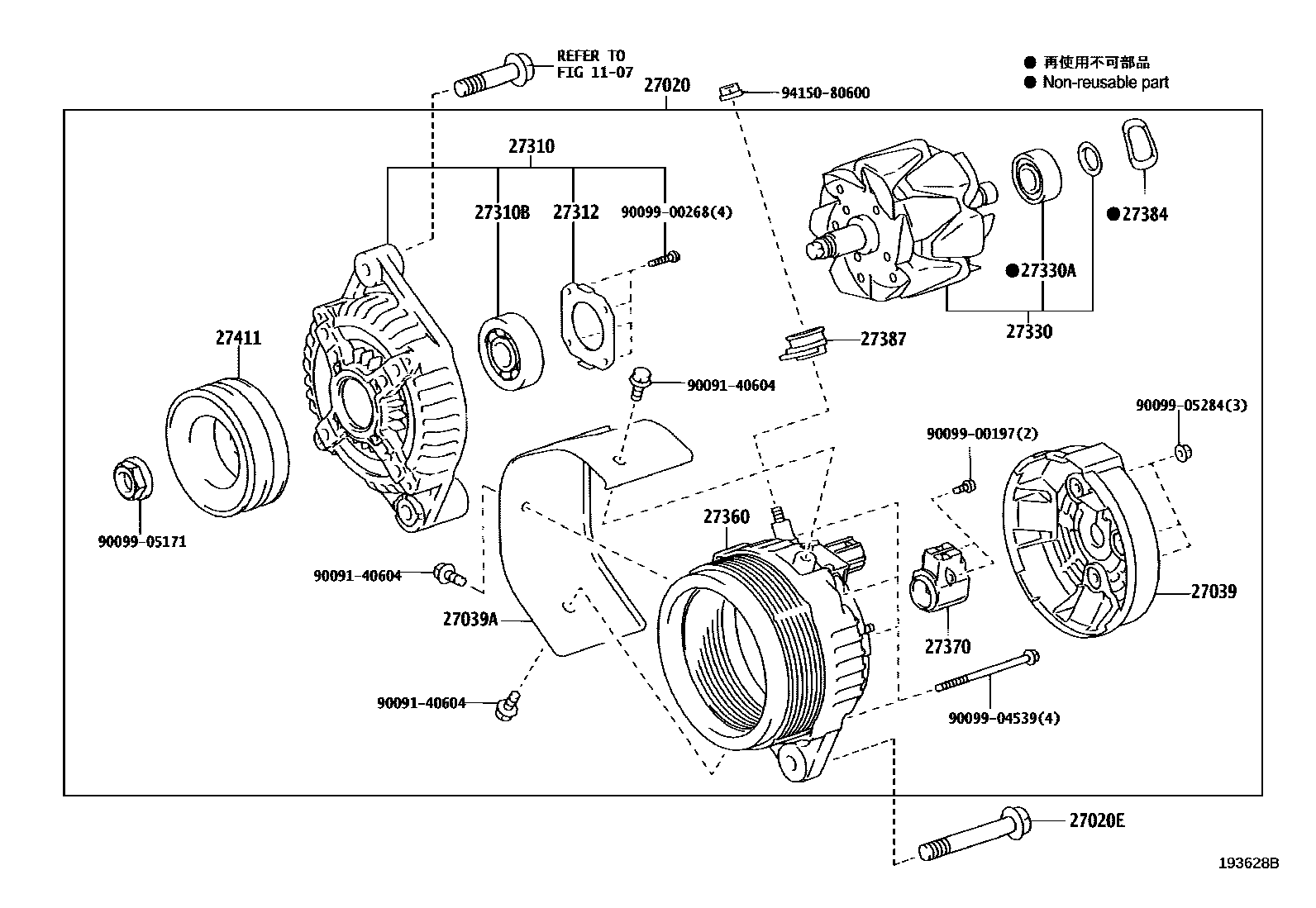

ALTERNATOR

0001 112V 150A 0002 112V 130A 0003 124V 60A 0004 124V 80A 0008 124V 80A

1107

27020ALTERNATOR ASSY

main27060-58440i1BZFPE..BZU600201107

main27060-75320i2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3201107-201605

main27060-78210iN04C..XZC605..06S201107-201705

main27060-78300iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7201905

main27060-78310iN04C..XZU600,640,685..IV4201905

main27060-78310iN04C..XZU600,640,685..IV4201905

main27060-E0320iN04C..XZU600,640,685..DCRTK..IV4201107-201705

main27060-E0320iN04C..XZU600,640,685..IV4201107-201705

27020EBOLT(FOR ALTERNATOR)

main90148-10001i1BZFPE..BZU600201107-202104

main91552-81085i2TRFE..TRC600,TRU600201107-201605

mainSZ10510067iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201107-201705

27039COVER, ALTERNATOR REAR END

main27039-20160iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201705

main27039-31390i2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3201107-201605

main27039-50370i1BZFPE..BZU600201107

main27039-78240iN04C..XZU600,640,685..IV4201905

27039ACOVER, ALTERNATOR REAR END, NO.2

main27039-58330iN04C..XZC605..06S201107-201705

main27041-58460i1BZFPE..BZU600201107

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-58460i1BZFPE..BZU600201107

main27310-75270i2TRFE..TRC600..T4;2TRFE..TRU600..T4..IV3201107-201605

main27310-EV010iN04C..XZC605..06S201107-201705

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10219iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7201107-201505

main90099-10223i1BZFPE..BZU600201107-201605

main90099-10226iN04C..XZC605..06S201505-201705

27312PLATE, RETAINER

main27312-42010iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7201107-201705

main27312-72100i2TRFE..TRC600..T4;2TRFE..TRU600..T4..IV3201107-201605

27330ROTOR ASSY, ALTERNATOR

main27330-17240iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201705

main27330-33090i2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3201107-201605

main27330-58460i1BZFPE..BZU600201107

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-00197i1BZFPE..BZU600201107

main90099-10140iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7201107-201705

27360COIL ASSY, ALTERNATOR

main27360-58460i1BZFPE..BZU600201107

main27360-75270i2TRFE..TRC600..T4;2TRFE..TRU600..T4..IV3201107-201605

main27360-78310iN04C..XZU600,640,685..IV4201905

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460iN04C..XZU600,640,685..IV4201905

main27370-58460i2TRFE..TRC600..T4;2TRFE..TRU600..T4..IV3201107-201605

main27370-75060iN04C..XZC605..06S201107-201705

mainS273701370iN04C..XZU605,655..DCB..(DCRTH,DCRTJ)..CBU;N04C..XZU600,605..SCB..(T2,T3,T4,T5)..(DCRTJ,DCRTK)..(CBU,IV3);N04C..XZU600,685,695..(DM6,T3)..MTM..(20T,40T)..(DCRTJ,DCRT201107-201705

27384WASHER

main27384-50030iN04C..XZC600..6FC..ST;N04C..XZU650..T4..30T;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU650..T3..30T..DCRTK..CBU;N04C,2TRFE..TRU600,XZU640..(DCRT201107-201705

27387INSULATOR, TERMINAL

main27387-20130i2TRFE..TRC600..T4;2TRFE..TRU600..T4..IV3201107-201605

main27387-20130iN04C..XZU600,640,685..IV4201905

main27387-42021iN04C..XZC60#,610..DCRTH,DCRTJ;N04C..XZC630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6,IV7)201107-201705

mainS273871350iN04C..XZU600,640,685..DCRTK..IV4201107-201705

27411PULLEY, ALTERNATOR

main27411-31210i2TRFE..TRC600..T4;2TRFE..TRU600..T4..IV3201107-201605

main27411-32020iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7201905

main27411-58460i1BZFPE..BZU600201107

main27411-78310iN04C..XZU600,640,685..IV4201905

mainS274311800iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201705

mainS274311810iN04C..XZU600..6F;N04C..XZU640..DCRTK..IV3;N04C..XZU640..T4..5F..IV3;N04C..XZC600..5F..ST..IV3;N04C..XZU645,655..30T..CBU;N04C..XZU685..SCB..(IV3,IV6);N04C..XZU650..201107-201705

9009140604

main90091-40604

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

9415080600

main94150-80600

22 parts on this diagram · 5 diagrams in section
