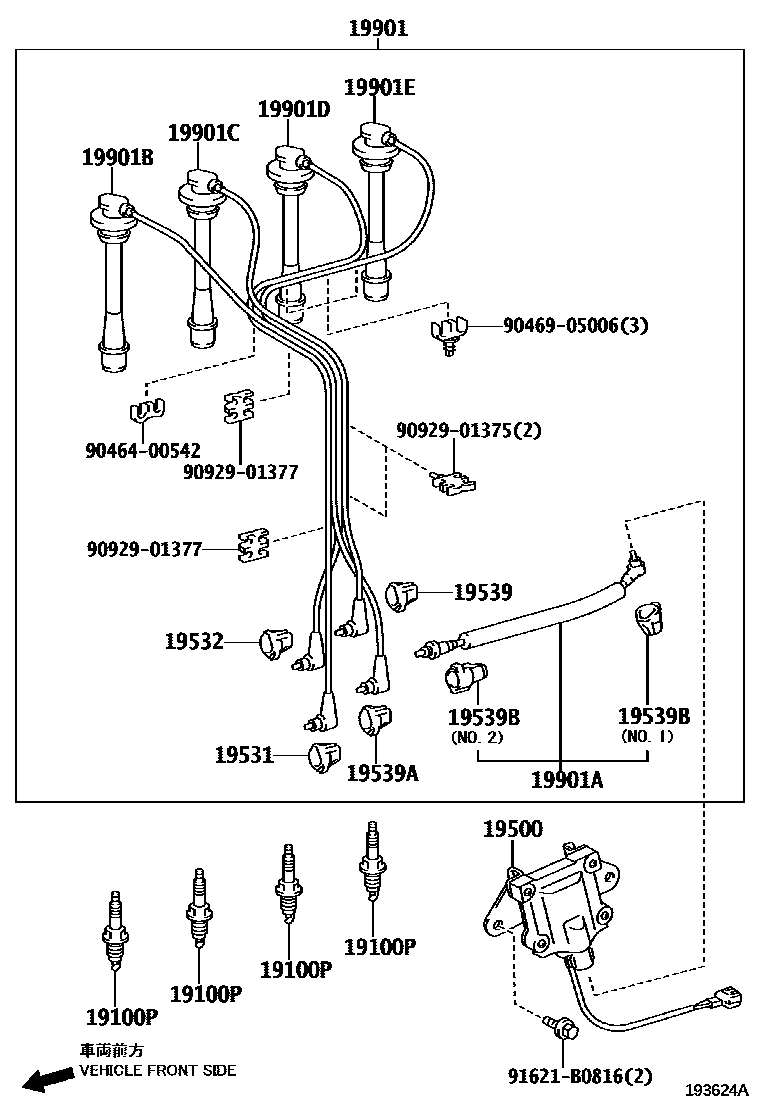

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19100PPLUG, SPARK

main90919-01191×4i2TRFE..TRC600,TRU600201107-201207

main90919-01264×4i1BZFPE..BZU600201107-201401

main90919-01266×4i2TRFE..TRC600,TRU600201207-201512

main90919-01283×4i1BZFPE..BZU600201401

main90919-01287×4i2TRFE..TRC600,TRU600201512-201605

19500COIL ASSY, IGNITION

main19500-48010i1BZFPE..BZU600201107

main90919-02260×4i2TRFE..TRC600,TRU600201107-201605

19531HOLDER, RESISTIVE CORD, NO.1

main19531-74010i1BZFPE..BZU600201107

19532HOLDER, RESISTIVE CODE, NO.2

main19532-46010i1BZFPE..BZU600201107

19539HOLDER, RESISTIVE CODE, NO.4

main19539-62010i1BZFPE..BZU600201107

19539AHOLDER, RESISTIVE CODE, NO.5

main19539-74020i1BZFPE..BZU600201107

19539BHOLDER, RESISTIVE CODE, NO.6

main19539-50010i1BZFPE..BZU600201107

main19539-74010i1BZFPE..BZU600201107

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21600i1BZFPE..BZU600201107

19901ACORD, COIL RESISTIVE

main19590-48010i1BZFPE..BZU600201107

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15486i1BZFPE..BZU600201107

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15487i1BZFPE..BZU600201107

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15488i1BZFPE..BZU600201107

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15489i1BZFPE..BZU600201107

9046400542

main90464-00542

9046905006

main90469-05006

9092901375

main90929-01375

9092901377

main90929-01377

91621B0816

main91621-B0816

18 parts on this diagram · 3 diagrams in section
