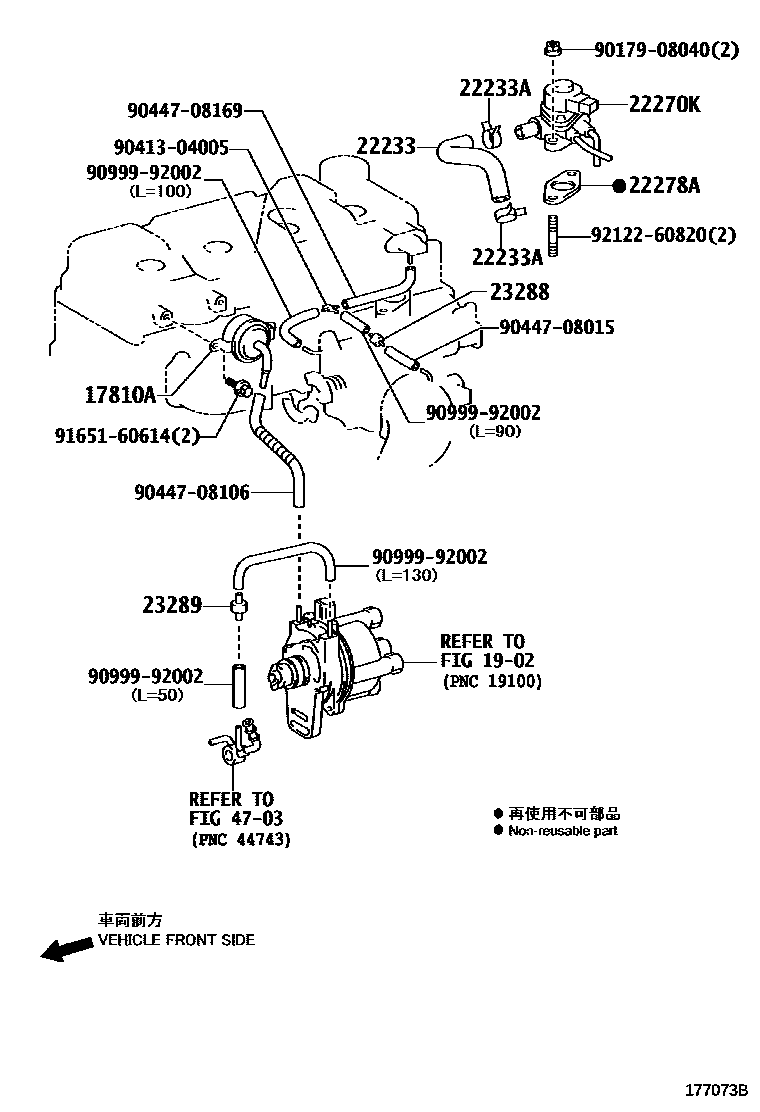

VACUUM PIPING

0001 1 0002 1

17810AFILTER ASSY, AIR

main17810-48011i1BZFPE..BZU600201107

1902

22233HOSE, LPG AUXILIARY AIR VALVE, NO.1

main22233-48011i1BZFPE..BZU600201107

22233ACLIP(FOR LPG AUXILIARY AIR VALVE NO.1)

main96134-52600i1BZFPE..BZU600201107

22270KVALVE ASSY, LPG IDLE SPEED CONTROL

main22270-48010i1BZFPE..BZU600201107

22278AGASKET, LPG IDLE SPEED CONTROL VALVE

main22278-46010i1BZFPE..BZU600201107

23288JET, NO.1

main90925-04007i1BZFPE..BZU600201107

23289JET, NO.2

main90925-04007i1BZFPE..BZU600201107

4703

9017908040

main90179-08040

9041304005

main90413-04005

9044708015

main90447-08015

9044708106

main90447-08106

9044708169

main90447-08169

9099992002

main90999-92002

9165160614

main91651-60614

9212260820

main92122-60820

17 parts on this diagram · 2 diagrams in section
