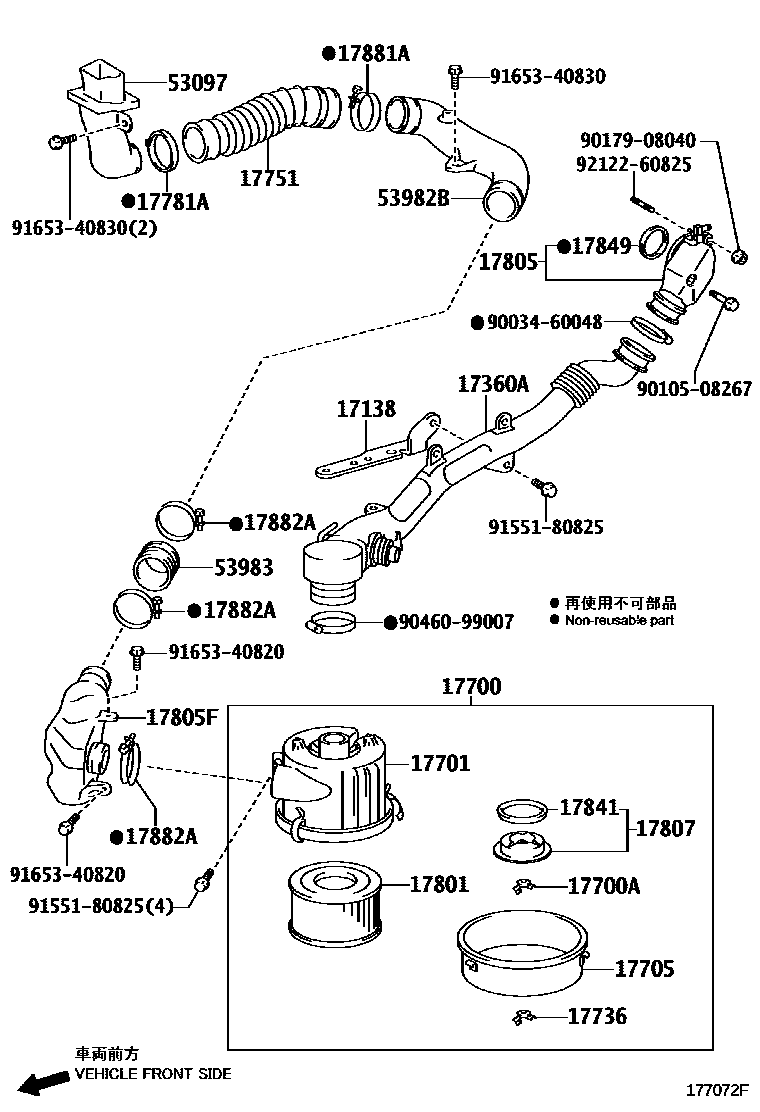

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17138STAY, INTAKE PIPE OR HOSE

main17138-58030i1BZFPE..BZU600201107

main17138-78010i2TRFE..TRC600,TRU600201107-201605

main17138-78170iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);201107-201705

main17138-78210i2TRFE..TRC600,TRU600201107-201605

main17138-78501iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

17360ATUBE ASSY, AIR

main17360-58021i1BZFPE..BZU600201107

17700CLEANER ASSY, AIR

main17700-78171i1BZFPE..BZU600201107

main17700-78351i2TRFE..TRC600,TRU600201107-201605

main17700-78490iN04C..XZU685,695..SCB;N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7201905

main17700-78540iN04C..XZU685,695..SCB;N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675201107-201212

sub17700-78541

main17700-78541iN04C..XZU642,685,695..SCB..(DCRTJ,DCRTK,DCRVT);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,640,645,65#,675..DCRTH,DCRTJ,DCRTK201301-201705

main17700-78550iN04C..XZU685,695..DCB201107-201212

sub17700-78551

main17700-78551iN04C..XZU685,695..DCB..(DCRTJ,DCRTK)201301-201705

main17700-78700iN04C..XZU600,640,685,695..DCB201905

main17700-78720iN04C..XZU600,640,650..DCRVT201705

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i2TRFE..TRC600,TRU600201107-201605

main90175-08008i2TRFE..TRC600,TRU600201107-201605

main90175-08008i1BZFPE..BZU600201107

17701CASE SUB-ASSY, AIR CLEANER

main17701-78141i1BZFPE..BZU600201107

17705CAP SUB-ASSY, AIR CLEANER

main17705-78030i1BZFPE..BZU600201107-201605

main17705-78060iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201212

sub17705-78061

main17705-78061iN04C..XZC605..06S201301-201705

main17705-78100iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

17736NUT, AIR CLEANER CASE

main90175-06003i1BZFPE..BZU600201107

17751INLET, AIR CLEANER, NO.1

main53981-37080i1BZFPE..BZU600201107-201605

17781ACLAMP, HOSE

main17781-78050i2TRFE..TRC600,TRU600201107-201605

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56050i1BZFPE..BZU600201107-201605

main17801-78080iN04C..XZC605..06S201107-201705

main17801-78130iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-48060i1BZFPE..BZU600201107

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-78021i2TRFE..TRC600,TRU600201107-201605

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56020i2TRFE..TRC600,TRU600201107-201605

17841GASKET, FILTER ELEMENT

main17841-44030i1BZFPE..BZU600201107-201605

17849GASKET, INTAKE AIR CONNECTOR

main17849-70030i1BZFPE..BZU600201107

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main17781-78160iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202005

main90460-88001iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201107-201904

main90460-92002iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905-202004

main96111-10880i2TRFE..TRC600,TRU600201107-201605

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10980i1BZFPE..BZU600201107-201605

53097INLET SUB-ASSY

main53097-37300iTRC600,TRU600201107-201605

53982BINLET, AIR CLEANER PIPE, NO.2

main53982-37070iTRC600,TRU600201107-201605

53983INLET, AIR CLEANER PIPE, NO.3

main53983-37020iTRC600,TRU600201107-201605

9003460048

main90034-60048

9010508267

main90105-08267

9017908040

main90179-08040

9046099007

main90460-99007

9155180825

main91551-80825

9165340820

main91653-40820

9165340830

main91653-40830

9212260825

main92122-60825

28 parts on this diagram · 6 diagrams in section
