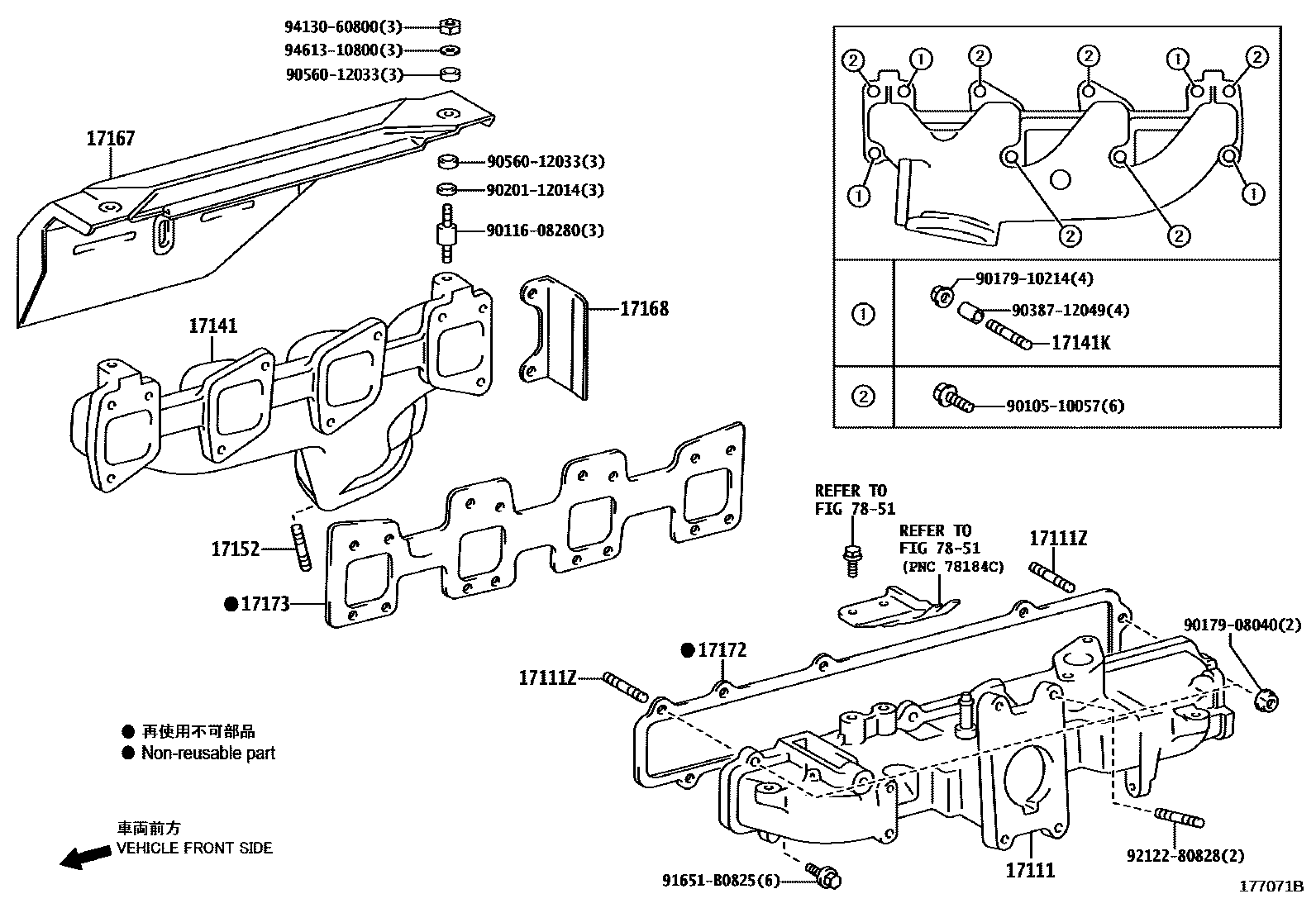

MANIFOLD

0001 1 0002 1 0003 1������ & ���������� 0004 1������ & ���������� 0005 1������������������� 0006 1�������������������

17111MANIFOLD, INTAKE

main17101-48011i1BZFPE..BZU600201107

main17111-78110iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

main17111-E0351iN04C..XZC605..06S201107-201606

sub17111-E0352

main17111-E0352iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201607-201705

sub17111-E0353

main17111-E0353iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201705-201904

sub17111-78110

main17120-0C020i2TRFE..TRC600,TRU600201107-201605

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026i2TRFE..TRC600,TRU600201107-201605

main92132-60820i1BZFPE..BZU600201107

17141MANIFOLD, EXHAUST

main17141-58031i1BZFPE..BZU600201107

main17141-75101i2TRFE..TRC600,TRU600201107-201605

main17141-E0360iN04C..XZC675,XZU675,685,695201107-201705

main17141-E0370iN04C..XZC605..06S201107-201705

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90116-10198i1BZFPE..BZU600201107

main90126-08052i2TRFE..TRC600,TRU600201107-201605

mainSZ12610012iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201107-201705

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90126-10006i1BZFPE..BZU600201107

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-58040i1BZFPE..BZU600201107

main17167-75170i2TRFE..TRC600,TRU600201107-201410

sub17167-75171

main17167-75171i2TRFE..TRC600,TRU600201411-201605

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-58050i1BZFPE..BZU600201107

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17171-58010i1BZFPE..BZU600201107

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-58030i1BZFPE..BZU600201107

main17173-75030i2TRFE..TRC600,TRU600201107-201605

main17173-78080iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695201612-201705

mainS171041880iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201612

sub17173-78080

7851

9010510057

main90105-10057

9011608280

main90116-08280

9017908040

main90179-08040

9017910214

main90179-10214

9020112014

main90201-12014

9038712049

main90387-12049

9056012033

main90560-12033

91651B0825

main91651-B0825

9212280828

main92122-80828

9413060800

main94130-60800

9461310800

main94613-10800

21 parts on this diagram · 6 diagrams in section
