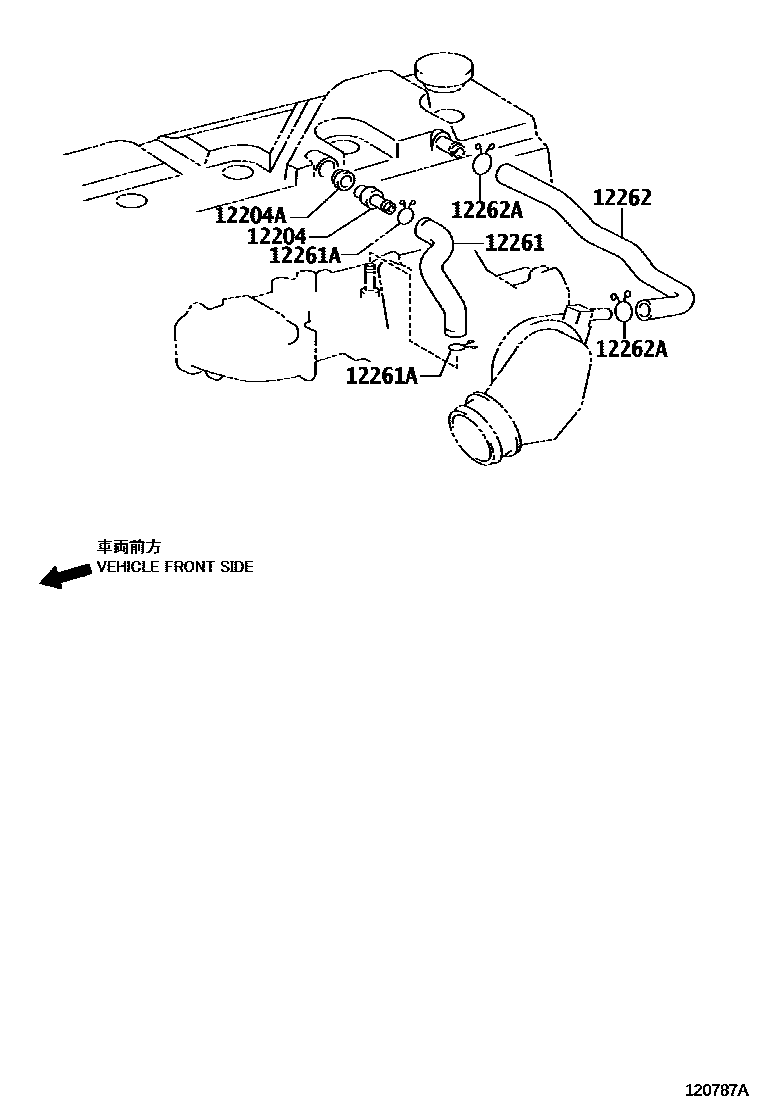

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

12204VALVE SUB-ASSY, VENTILATION

main12204-0C010i2TRFE..TRC600,TRU600201107-201605

main12204-15022i1BZFPE..BZU600201107

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i1BZFPE..BZU600201107

12261HOSE, VENTILATION

main12261-48020i1BZFPE..BZU600201107

main12261-75100i2TRFE..TRC600,TRU600201107-201605

main12261-78460iN04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#201107-201312

sub12261-78461

main12261-78461iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201401-201705

main12261-78480iN04C..XZC675,XZU675,685,695..DCRTJ,DCRTK201107-201705

main12261-78810iN04C..XZC60#,630,645,655,XZU60#,630,64#,65#201905

main12261-78830iN04C..XZC675,XZU675,685,695201905

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001i1BZFPE..BZU600201107-201605

main96136-42901iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);201107-201705

main96136-42901iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

mainSZ46628001iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

12262HOSE, VENTILATION, NO.2

main12261-78800iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

main12262-48010i1BZFPE..BZU600201107

main12262-78010i2TRFE..TRC600,TRU600201107-201605

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-17126i1BZFPE..BZU600201107

main90467-21006i2TRFE..TRC600,TRU600201107-201605

main96134-42300i2TRFE..TRC600,TRU600201107-201605

main96136-42901iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

6 parts on this diagram · 4 diagrams in section
