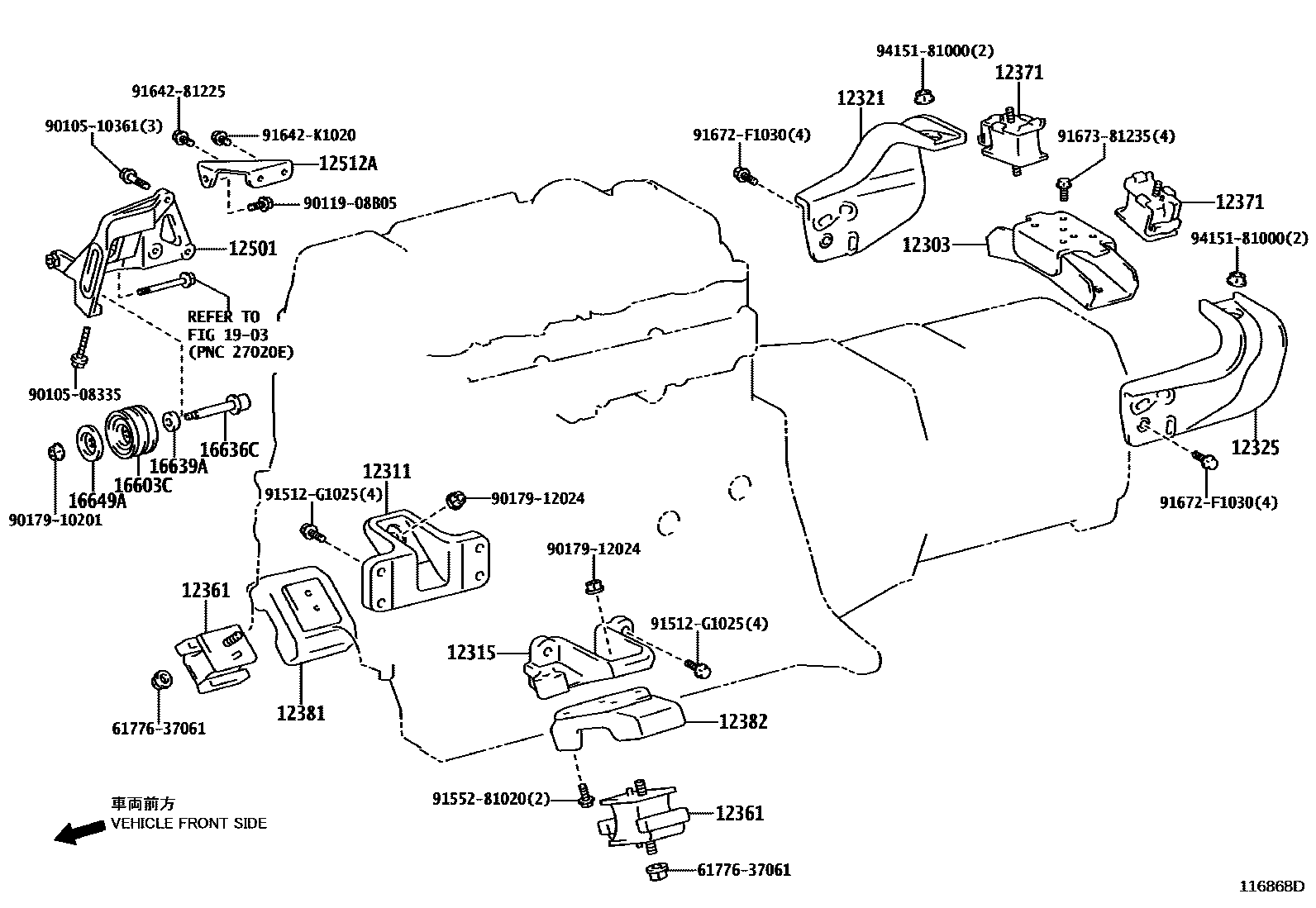

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-78010i2TRFE..TRC600,TRU600201107-201705

sub12303-78011

main12303-78030iN04C..XZU600..IV4;N04C..XZC630,XZU630;N04C..XZU600,650..6F;N04C..XZU640..IV4,IV6201107-201705

sub12303-78031

main12303-78080iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-58110i1BZFPE..BZU600201107

main12311-75040i2TRFE..TRC600,TRU600201107-201605

main12311-E0220iN04C..XZC675,XZU675,685,695201107-201903

sub12311-E0221

main12311-E0221iN04C..XZC675,XZU675,685,695..DCRTJ,DCRTK201904

main12311-E0230iN04C..XZU600..6FC..40T201107-201903

sub12311-E0231

main12311-E0231iN04C..XZU600,602,640,642,650,652..35T,40T201904

mainS123111970iN04C..XZC60#,630,645,655,XZU600,605,630,640,645,650,655..DCRWD201107-201705

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-58070i1BZFPE..BZU600201107

main12315-75100i2TRFE..TRC600,TRU600201107-201605

main12315-78110iN04C..XZU600,602,640,642,650,652..35T,40T201904

main12315-E0130iN04C..XZC675,XZU675,685,695201107-201903

sub12315-E0131

main12315-E0131iN04C..XZC675,XZU675,685,695..DCRTJ,DCRTK201904

mainS123151960iN04C..XZC600..6FC..ST;N04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZ201107-201705

mainS123152000iN04C..XZU600..6FC..40T201107-201903

sub12315-78110

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-58222i1BZFPE..BZU600201107-201710

sub12321-58223

main12321-58223i1BZFPE..BZU600201711

main12321-58230i2TRFE..TRC600,TRU600201107-201605

main12321-78181iN04C..XZC610,XZU610,620..5F201107-201705

main12321-78221iN04C..XZC605..06S..5F201107-201705

main12321-78240iN04C..XZU600..DCRTK..IV7201107-201705

main12321-78250iN04C..XZU600,640..5F..IV4201107-201705

main12321-78260iN04C..XZU600,640..6FC..IV4201107-201705

main12321-78441iN04C..XZU630;N04C..XZU650..35T;N04C..XZC630,XZU600,640..(DM7,T3)..MTM..(20T,40T)201107-201705

main12321-78451iN04C..XZU640,650..T4..6FC;N04C..XZU640..T3..6FC..CBU;N04C..XZU650..6FC..DCRTK..CBU;N04C..XZU650..T3..6FC..30T..IV3;N04C..XZC600,XZU600..(T3,T5)..6FC..(20T,40T)201107-201705

main12321-78461iN04C..XZC610,XZU610,620..6FC201107-201705

main12321-78570iN04C..XZC630..6FC201107-201903

sub12321-78571

main12321-78571iN04C..XZC630..6FC201904

sub12321-78572

main12321-78572iN04C..XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)201905

main12321-78601iN04C..XZC675,XZU675,685,695..DCRTJ,DCRTK201107-201705

main12321-78611iN04C..XZU600,640,650..DCRVT201705-201903

sub12321-78612

main12321-78612iN04C..XZU600,640,650..DCRVT201904-201912

sub12321-78613

main12321-78613iN04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6)201912

main12321-78740iN04C..XZU600,640..6FC..IV4201905-202104

main12321-78750iN04C..XZU600..IV7201905-202104

main12321-78760iN04C..XZU600,640..6F..IV4201905-202104

main12321-78770iN04C..XZC675,XZU675,685,695..CBU,IV3,IV6201905-202104

main12321-78780iN04C..XZU685..IV4201905-202104

main12321-78800iN04C..XZC630,XZU630201905-202104

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-58182i1BZFPE..BZU600201107-201710

sub12325-58183

main12325-58183i1BZFPE..BZU600201711

main12325-58190i2TRFE..TRC600,TRU600201107-201605

main12325-78161iN04C..XZC610,XZU610,620..5F201107-201705

main12325-78201iN04C..XZU650..T4..5F..30T;N04C..XZU640..5F..DCRTJ..CBU;N04C..XZU650..T3..5F..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..5F..DCRTK..CBU201107-201705

main12325-78220iN04C..XZU600..DCRTK..IV7201107-201705

main12325-78230iN04C..XZU600,640..5F..IV4201107-201705

main12325-78240iN04C..XZU600,640..6FC..IV4201107-201705

main12325-78411iN04C..XZU630;N04C..XZU650..35T;N04C..XZC630,XZU600,640..(DM7,T3)..MTM..(20T,40T)201107-201705

main12325-78421iN04C..XZC605..06S..6FC201107-201705

main12325-78431iN04C..XZC610,XZU610,620..6FC201107-201705

main12325-78540iN04C..XZC630..6FC201107-201903

sub12325-78541

main12325-78541iN04C..XZC630..6FC201904

sub12325-78542

main12325-78542iN04C..XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)201905

main12325-78561iN04C..XZC675,XZU675,685,695201107-201705

main12325-78611iN04C..XZU600,640,650..DCRVT201705-201903

sub12325-78612

main12325-78612iN04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6)201904-201912

sub12325-78613

main12325-78613iN04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6)201912

main12325-78680iN04C..XZU600,640..6FC..IV4201905-202104

main12325-78690iN04C..XZU600..IV7201905-202104

main12325-78700iN04C..XZU600,640..6F..IV4201905-202104

main12325-78710iN04C..XZC675,XZU675,685,695..CBU,IV3,IV6201905-202104

main12325-78720iN04C..XZU685..IV4201905-202104

main12325-78740iN04C..XZC630,XZU630201905-202104

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-58130i1BZFPE..BZU600201107-201110

sub12361-58131

main12361-58131i1BZFPE..BZU600201111

main12361-58131iN04C..XZC600,630,675,XZU600,602,630,640,642,650,652,675,685,695201111-201705

main12361-75031i2TRFE..TRC600,TRU600201107-201605

main12361-78160iN04C..XZC605,645,655,XZU605,645,655201107-201110

sub12361-78161

main12361-78161iN04C..XZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5201111-201705

main12361-78170iN04C..XZC605,645,655,XZU605,645,655201107-201110

sub12361-78171

main12361-78171iN04C..XZC605,645,655,XZU605,645,655201111-201705

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-78010i1BZFPE..BZU600201107-201905

sub12371-78060

main12371-78060i1BZFPE..BZU600201905

12381STABILIZER, ENGINE MOUNTING

main12381-58011i1BZFPE..BZU600201107

main12381-65030i2TRFE..TRC600,TRU600201107-201605

main12381-78030iN04C..XZU620..6FC;N04C..XZU645,655..30T201107-201506

sub12381-78032

main12381-78032iN04C..XZC60#,610,630,645,655,XZU600,605,610,620,630,640,645,650,655..DCRTH,DCRTJ,DCRTK201506-201705

main12381-78040iN04C..XZU675,685,695;N04C..XZU600,650..DCVTO;N04C..XZC675,XZU602,640,642,652..20T,35T,40T201107-201705

12382STABILIZER, ENGINE MOUNTING, LH

main12381-78030iN04C..XZU620..6FC;N04C..XZU645,655..30T201107-201506

sub12381-78032

main12381-78032iN04C..XZC60#,630,645,655,XZU600,605,630,640,645,650,655..DCRWD201506-201705

main12381-78040iN04C..XZU600..6FC..40T201107-201705

main12382-58040i1BZFPE..BZU600201107

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-58030i1BZFPE..BZU600201107

12512ABRACKET, ALTERNATOR, NO.2

main12512-58020i1BZFPE..BZU600201107

16603CPULLEY SUB-ASSY, IDLER

main16603-58010i1BZFPE..BZU600201107

16636CSHAFT, IDLER PULLEY, NO.1

main16636-58020i1BZFPE..BZU600201107-201108

sub16636-58021

main16636-58021i1BZFPE..BZU600201108

16639ASPACER, IDLER PULLEY

main16639-58010i1BZFPE..BZU600201107

16649APLATE, IDLER PULLEY COVER

main16649-58010i1BZFPE..BZU600201107

1903

6177637061STRENGTH, QUARTER PANEL HORIZONTAL, LOWER CENTER RH

main61776-37061

9010508335

main90105-08335

9010510361

main90105-10361

9011908B05

main90119-08B05

9017910201

main90179-10201

9017912024

main90179-12024

91512G1025

main91512-G1025

9155281020

main91552-81020

9164281225

main91642-81225

91642K1020

main91642-K1020

91672F1030

main91672-F1030

9167381235

main91673-81235

9415181000

main94151-81000

29 parts on this diagram · 5 diagrams in section
