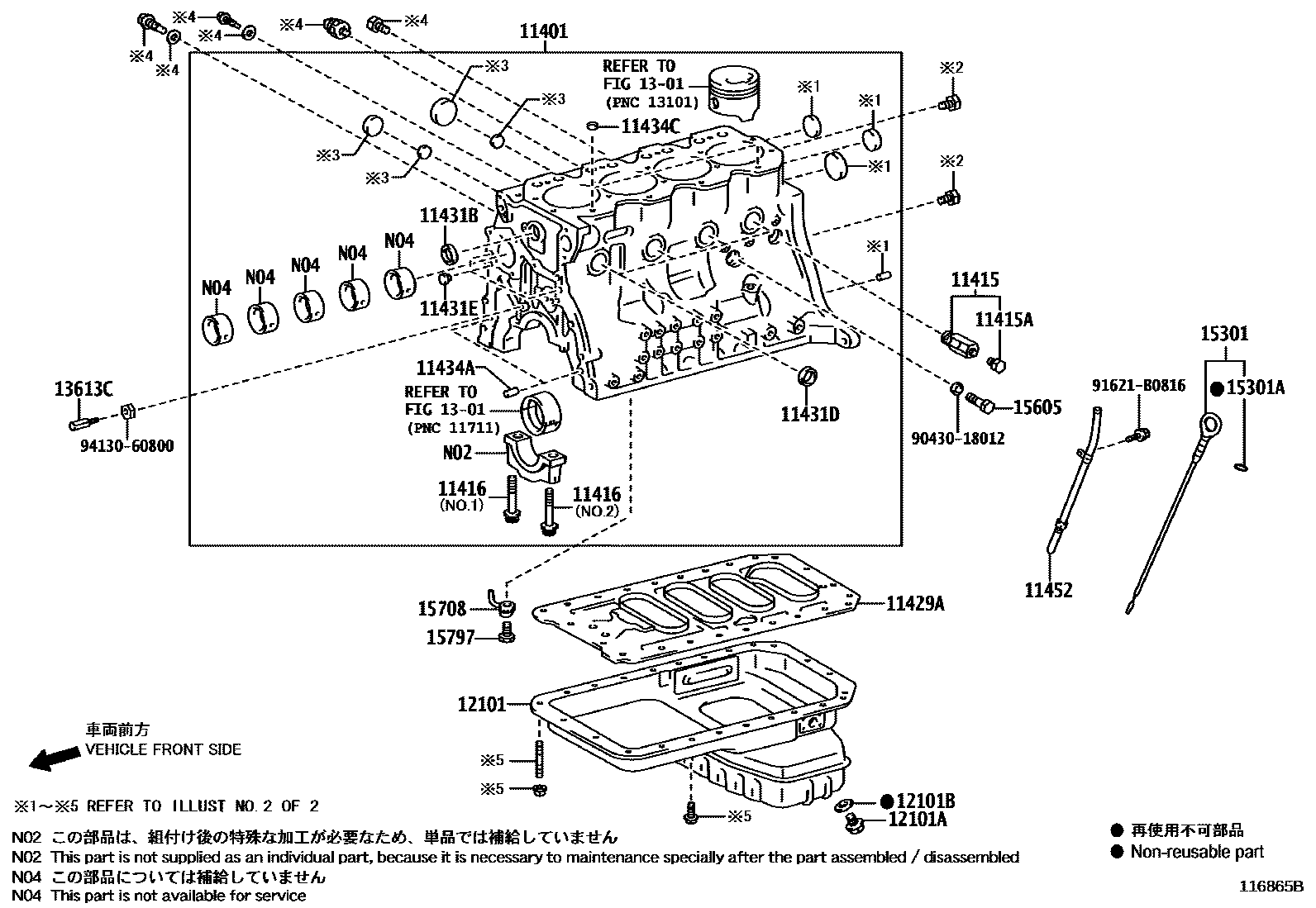

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-49755i1BZFPE..BZU600201107-201612

sub11401-49756

main11401-49756i1BZFPE..BZU600201612

main11401-75081i2TRFE..TRC600,TRU600201406-201605

sub11401-75082

main11401-80741i2TRFE..TRC600,TRU600201107-201406

sub11401-75081

main11410-78420iN04C..XZU600,640,650..DCRVT201705-201811

sub11410-78421

main11410-78421iN04C..XZU600,640,650..DCRVT201812-201901

sub11410-78422

sub11115-78100

main11410-78422iN04C..XZU600,640,650..DCRVT201901-201905

sub11410-78423

sub11701-78170

sub15703-78060

main11410-78423iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6201905

sub11410-78424

main11410-78433iN04C..XZU600,640,685..IV4,IV7201905

main11410-78460iN04C..XZU642;N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,640,645,65#,675,685,695..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6)201901-201905

sub11410-78461

sub11701-78170

sub15703-78060

main11410-78470iN04C..XZU600,640,685..IV4,IV7201901-201905

sub11410-78471

sub11701-78170

sub15703-78060

main11410-E0D71iN04C..XZU642;N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,640,645,65#,675,685,695..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6)201107-201811

sub11410-E0D72

main11410-E0D72iN04C..XZU642;N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,640,645,65#,675,685,695..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6)201812-201901

sub11410-78460

sub11115-78100

main11410-E0D81iN04C..XZU600,640,685..IV4,IV7201107-201811

sub11410-E0D82

main11410-E0D82iN04C..XZU600,640,685..IV4,IV7201812-201901

sub11410-78470

sub11115-78100

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095i1BZFPE..BZU600201107

main90910-09118i2TRFE..TRC600,TRU600201107-201605

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1BZFPE..BZU600201107-201605

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02082i1BZFPE..BZU600201107

main90910-02083i1BZFPE..BZU600201107

main90910-02179i2TRFE..TRC600,TRU600201107-201605

mainS115211410iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);201107-201705

11429APLATE, CYLINDER BLOCK STIFFENING

main11429-56011i1BZFPE..BZU600201107

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-50003i1BZFPE..BZU600201107

main96411-63500i2TRFE..TRC600,TRU600201107-201605

mainSN41104016iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-201705

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-63500i1BZFPE..BZU600201107

mainSN41101712iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);201107-201901

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-14006i1BZFPE..BZU600201107

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i1BZFPE..BZU600201107

mainSZ25008008iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201107-201705

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-15008i1BZFPE..BZU600201107

mainSZ25008007iN04C..XZC605..06S201107-201705

11452GUIDE, OIL LEVEL GAGE

main11409-48010i1BZFPE..BZU600201107

main11409-75071i2TRFE..TRC600..T4;2TRFE..TRU600..T4..IV3201107-201605

12101PAN SUB-ASSY, OIL

main12101-58170i1BZFPE..BZU600201107

main12101-75140i2TRFE..TRC600..T4;2TRFE..TRU600..T4..IV3201107-201505

main12101-75160i2TRFE..TRC600..T4;2TRFE..TRU600..T4..IV3201411-201605

main12101-E0450iN04C..XZC605..06S201107-201705

main12101-E0460iN04C..XZU600,640,685..DCRTK..IV4201107-201705

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2TRFE..TRC600,TRU600201107-201605

mainSZ34118014iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201705

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1BZFPE..BZU600201107-201605

mainSZ43018009iN04C..XZC605..06S201107-201705

1301

13613CNOZZLE, OIL

main90915-01015i1BZFPE..BZU600201107

15301GAGE SUB-ASSY, OIL LEVEL

main15301-58060i1BZFPE..BZU600201107

main15301-75091i2TRFE..TRC600,TRU600201107-201501

main15301-75130i2TRFE..TRC600..T4;2TRFE..TRU600..T4..IV3201501-201605

main15301-78251iN04C..XZC675,XZU675,685,695;N04C..XZC605,XZU60#,640,655..DCB,VAN201107-201509

sub15301-78252

main15301-78252iN04C..XZC605..06S201510-201705

main15301-78320iN04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..SCB..(DCRTH,DCRTJ,DCRTK,DCRVT)201705

main15301-78330iN04C..XZC675,XZU675,685,695..DCRTJ,DCRTK;N04C..XZC605,XZU600,605,640,655..(DCB,VAN)..(DCRTH,DCRTJ,DCRTK)201705

main15301-78351iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

main15301-E0A70iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201705

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3201107-201605

15605VALVE SUB-ASSY, OIL CHECK

main15602-E0010iN04C..XZU600..DCRVT;N04C..XZU600,685..IV4,IV7;N04C..XZU640,650..IV4,IV6201508-201905

main15605-56010i1BZFPE..BZU600201107

main15703-78050iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695201905

mainS156021200iN04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6201107-201507

sub15602-E0010

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-58040i1BZFPE..BZU600201107

main15708-75010i2TRFE..TRC600,TRU600201107-201301

sub15708-75020

main15708-75020i2TRFE..TRC600,TRU600201301-201605

mainS110BE0010iN04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT201107-201705

15797BOLT, OIL NOZZLE UNION

main15797-58020i1BZFPE..BZU600201107

mainSH55210816iN04C..XZU650..T4..30T;N04C..XZU640..DCRTJ..CBU;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU640..T3..5F..DCRTJ..IV3;N04C..XZU650..T3..30T..DCRTK..201107-201705

9043018012

main90430-18012

91621B0816

main91621-B0816

9413060800

main94130-60800

24 parts on this diagram · 7 diagrams in section
