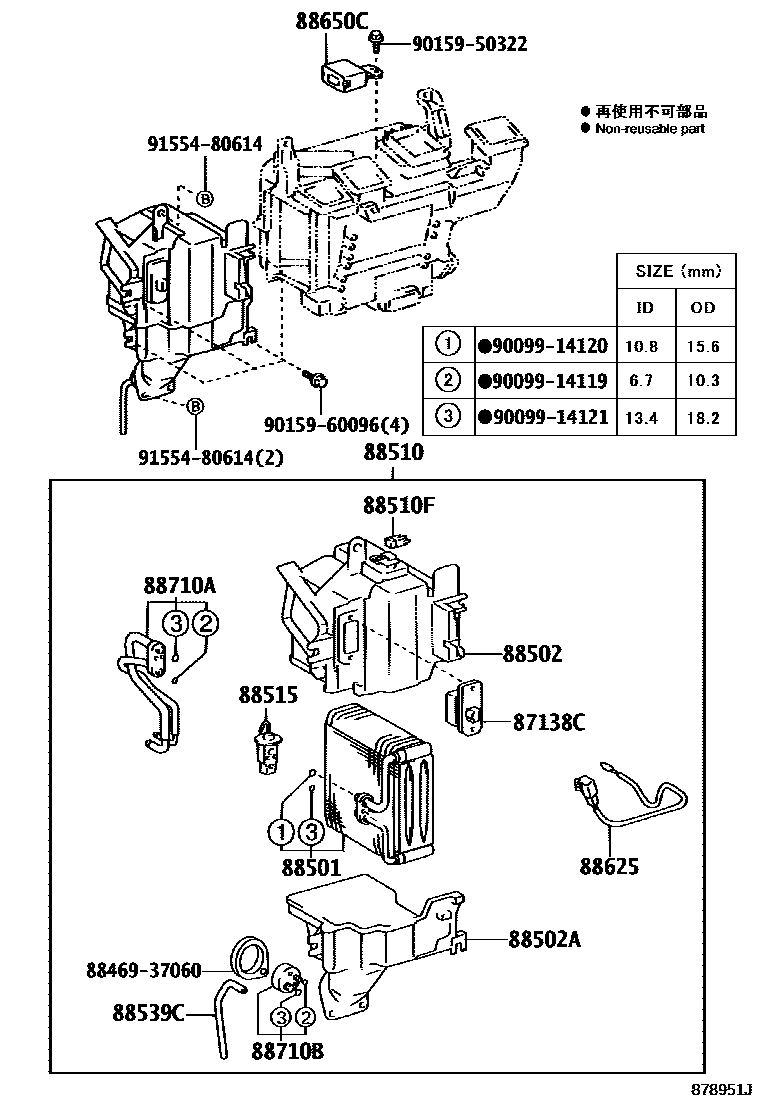

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0003 1���� 0006 1���� 0007 1��

87138CRESISTOR, BLOWER

main87138-37090iXZU30#,314,324,33#,34#,354..DCRUE;XZU50#,524,538,548,554..(DM5,DM7,T3,T4,T5)..5F..WT..(DCRTH,DCRTJ)200610-201106

main87138-37190iBZU300,340,TRU300,340,500200705-201106

main87138-37220iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200802-200902

sub87138-37090

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-37060iXZU368,378,388,568..SCB;XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200610-201106

main88501-37090iXZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)200610-201106

88502CASE SUB-ASSY, COOLING UNIT

main88502-37050iXZU368,378,388,568..SCB;XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200610-201106

main88502-37060iXZU368,378,388,568..SCB;XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200610-201106

88502ACASE SUB-ASSY, COOLING UNIT

main88502-37040iXZU368,378,388,568..SCB;XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200610-201106

main88502-37070iXZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)200610-201106

88510UNIT ASSY, COOLER

main88510-37120iXZU30#,334,348,378,388,508..DCB,VAN200610-201106

main88510-37180iBZU300,340,TRU300,340,500200705-201106

main88510-37230iXZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)200610-201106

88510FHOLDER, FUSE

main82630-95J03iXZU368,378,388,568..SCB;XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200610-201106

88515VALVE, COOLER EXPANSION

main88515-28160iXZU368,378,388,568..SCB;XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200610-201106

main88515-60150iXZU368,378,388,568..SCB;XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200610-201106

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-37030iXZU308,348..DCB200610-201106

main88539-37060iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

88625THERMISTOR, COOLER, NO.1

main88625-32150iXZU368,378,388,568..SCB;XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200610-201106

main88625-37020iXZU368,378,388,568..SCB;XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200610-201106

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-25120iTRU300,340,500200705-201106

main88650-37120iXZU368,378,388,568..SCB;XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200610-201106

main88650-37210iBZU300,340200705-201106

main88650-37290iXZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)200610-201106

88710ATUBE ASSY, AIR CONDITIONER

main88710-37340iXZU368,378,388,568..SCB;XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200610-201106

main88710-37480iXZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)200610-201106

88710BTUBE ASSY, AIR CONDITIONER

main88710-37350iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

8846937060SWITCH, PRESSURE CONTROL

main88469-37060

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9015950322

main90159-50322

9015960096

main90159-60096

9155480614

main91554-80614

19 parts on this diagram · 4 diagrams in section
