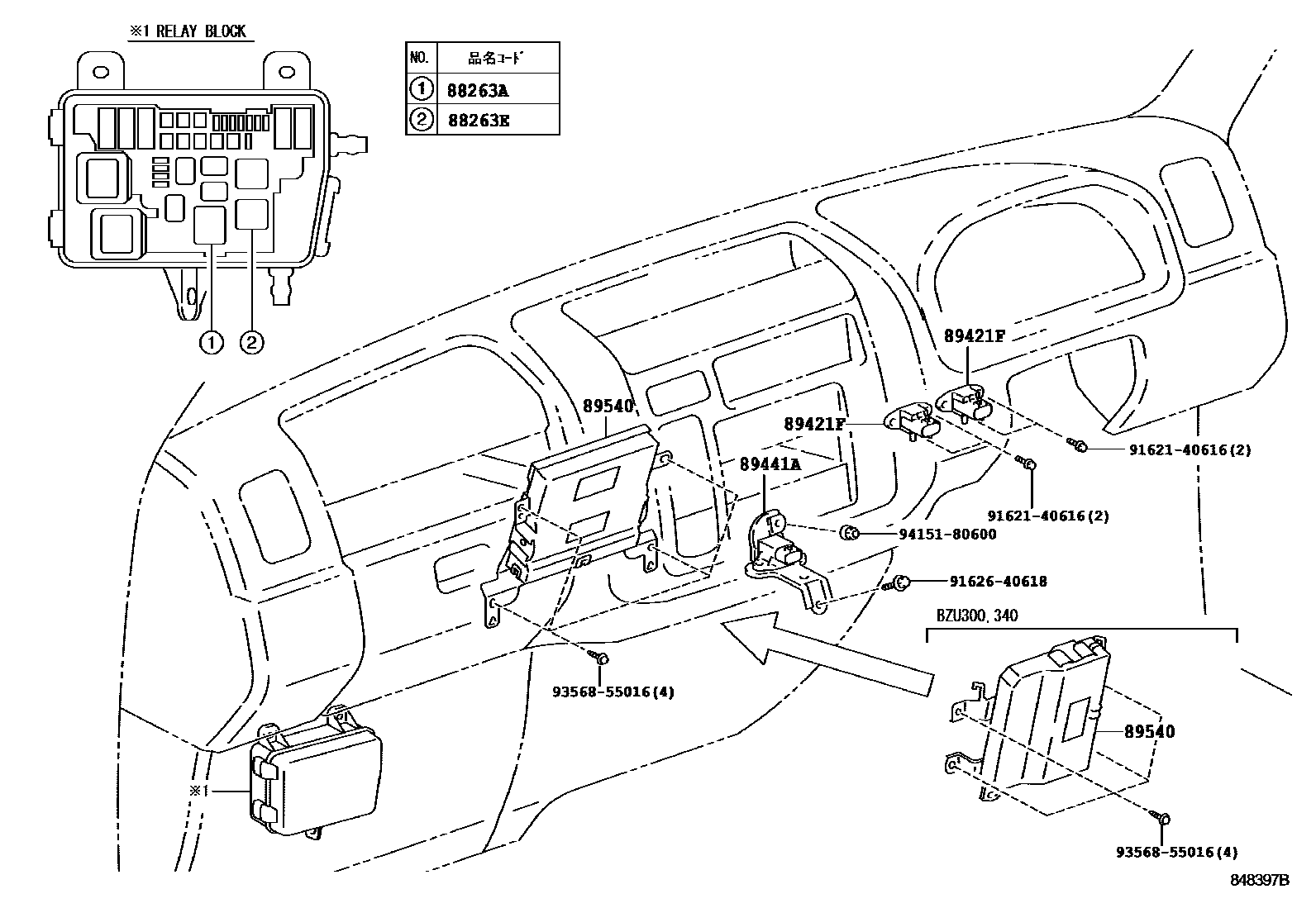

ABS & VSC

0001 1��� 0002 1���� ���-����� 0003 1�� ���-�����

88263ARELAY, SKID CONTROL

main88263-36040iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

main88263-37010iBZU300,340,TRU300,340,500200705-201106

88263ERELAY, SKID CONTROL NO.2

main88263-36050iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

main88263-37020iBZU300,340,TRU300,340,500200705-201106

89421FSENSOR, VACUUM (FOR SKID CONTROL)

main89421-37010×2iXZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568200610-201008

main89421-37030×2iXZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568201009

89441ASENSOR, DECELERATION

main89440-37010iXZU368,378,388,568200610

sub89440-37011

89540COMPUTER ASSY, SKID CONTROL

main89540-37280iXZU34#200610

main89540-37290iXZU504..ST;XZU304..6FC..IV6;XZU30#,314,324,33#,354..CBU,IV3,IV4,IV7200610

main89540-37300iXZU34#,548..MTM200610

main89540-37310iXZU30#,314,324,33#,354,50#,524,538,554..MTM200610

main89540-37320iXZU548200610

main89540-37330iXZU50#,524,538,554..WT200610

main89540-37340iXZU388200610

main89540-37350iXZU368,378,568200610

main89540-37360iXZU388200610

main89540-37370iXZU368,378,568200610

main89540-37380iTRU340200705

main89540-37390iTRU300,500200705

main89540-37400iTRU340200705

main89540-37410iTRU300,500200705

main89540-37420iBZU340200705

main89540-37430iBZU300200705

main89540-37440iBZU340200705

main89540-37450iBZU300200705

9162140616

main91621-40616

9162640618

main91626-40618

9356855016

main93568-55016

9415180600

main94151-80600

9 parts on this diagram · 3 diagrams in section
