SWITCH & RELAY & COMPUTER

0001 1����� 0002 1����� 0003 1����� 0004 1��������� 0005 1��������� 0006 1��������� 0007 1��������� 0008 1�������� NO.2 0009 1�������� NO.2 0010 1�������� NO.2 0011 1�������� 0012 1��� 0013 1������������ 0014 1������� 0015 1���,�-� & ��� 0016 1���,�-� & ��� 0017 1��� ���� 0018 1������-

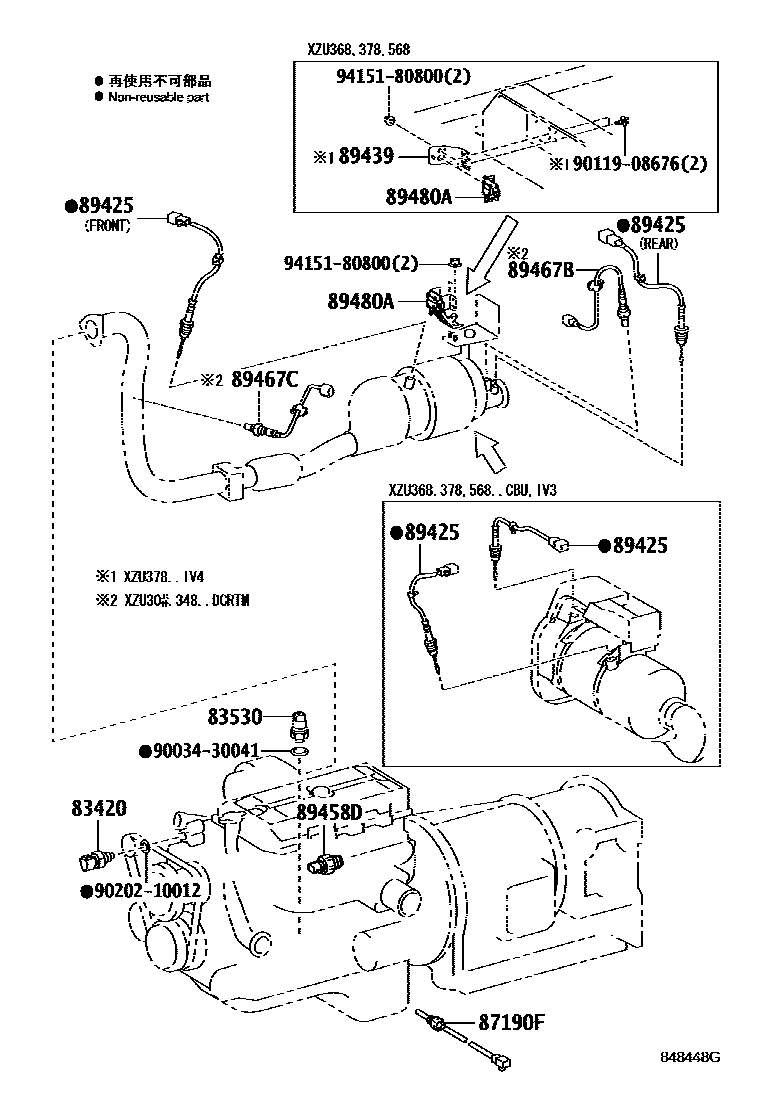

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iBZU300,340200705

main83420-37020iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iBZU300,340200705

main83530-28020iTRU300,340,500200705

main83530-37040iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main83530-60010iBZU300,340200705

main83530-60020iTRU300,340,500200705

87190FSWITCH ASSY, TEMPERATURE CONTROL

main87190-37021iXZU304,334,378..IV4200610

subS8343-01861

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-37021iXZU378..IV4;XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554200610

sub89425-37022

main89425-37031iXZU378..IV4;XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..CBU,IV3,IV6,IV7200610

sub89425-37032

main89425-37041iXZU368,378,568..CBU,IV3200610

sub89425-37042

main89425-37070iXZU304,334..IV4200610

89439BRACKET, SENSOR

main89439-37010iXZU378..IV4200610

89458DSENSOR, FUEL PRESSURE

mainS227621080iXZU30#,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

89467BSENSOR, AIR FUEL RATIO

main89467-37010iXZU30#,348..DCRTM200705

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-37050iXZU30#,348..DCRTM200705

89480ASENSOR ASSY, DIFFERENTIAL PRESSURE

main89480-37010iXZU30#,314,324,33#,34#,354,388,50#,524,538,548,554200610

main89480-37030iXZU368,378,568200610

9003430041

main90034-30041

9011908676

main90119-08676

9020210012

main90202-10012

9415180800

main94151-80800

13 parts on this diagram · 18 diagrams in section
