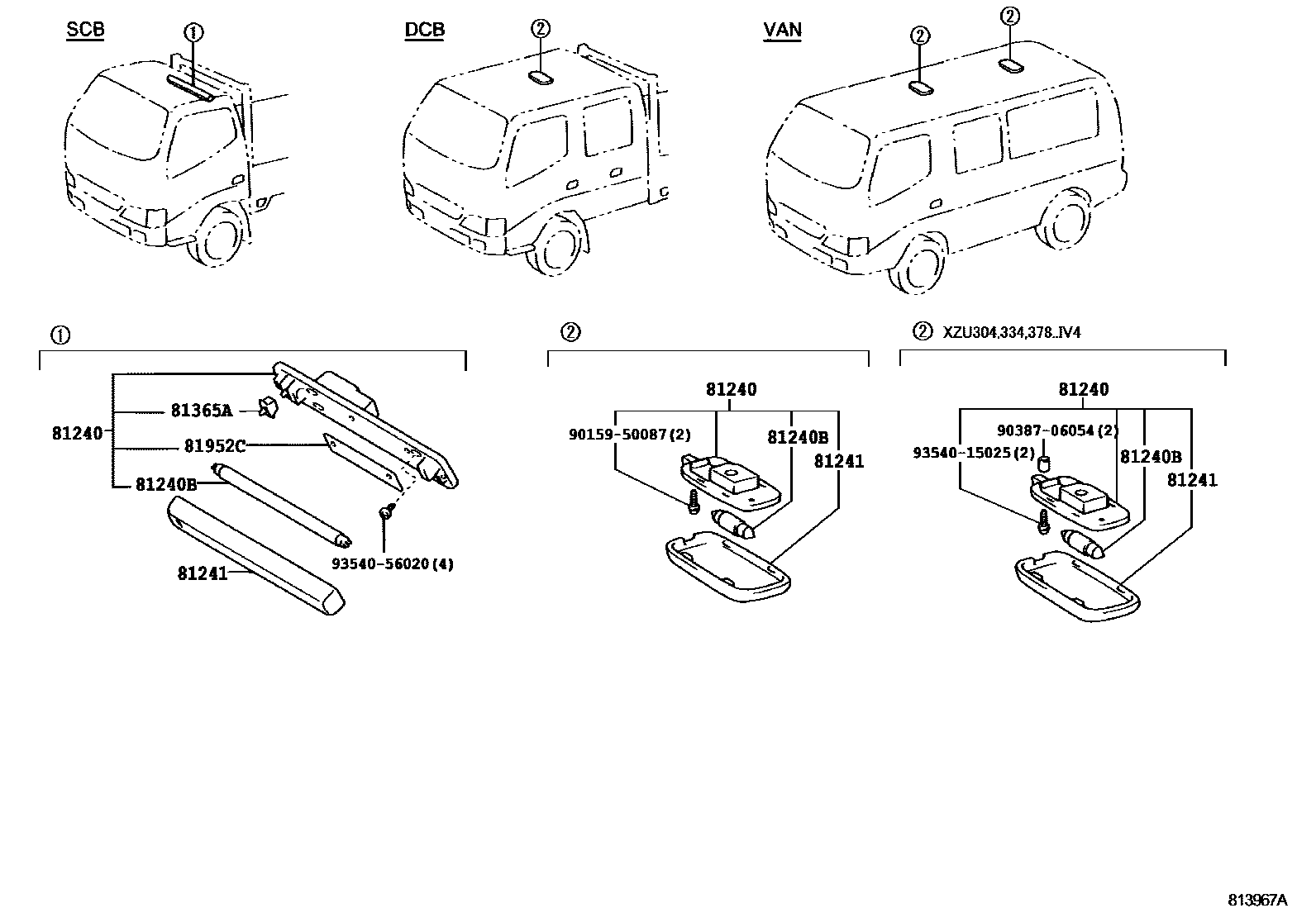

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-37070-B0iTRU300..T4..20T200705-201106

MD.CHARCOAL,TRIM1#

main81240-37080-B0iXZU304,334,378..IV4200610-201106

MD.CHARCOAL,TRIM1#

main81240-95014-B1iXZU308,348,378,388..DCB..20T200610-201106

MD.CHARCOAL,TRIM1#

sub81240-95014

main81580-37050-B0iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610-201106

MD.CHARCOAL,TRIM1#

main81580-37070iBZU300,340,TRU300,340,500..SCB200705-201106

81240BBULB, ROOM LAMP, NO.1

main90981-11004iTRU300..T4..20T200705-201106

main90981-11053iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610-201106

main90981-16019iXZU508..VAN200610-201106

81241LENS, ROOM LAMP, NO.1

main81241-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610-200909

sub81241-37021

main81241-37021iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200910-201106

main81241-95013iXZU508..VAN200610-201106

81365AKNOB, ROOM LAMP SWITCH

main81365-37010-B1iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610-201106

MD.CHARCOAL,TRIM1#

sub81365-37010

81952CCOVER, REAR LAMP

main81952-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610-200910

9015950087

main90159-50087

9038706054

main90387-06054

9354015025

main93540-15025

9354056020

main93540-56020

9 parts on this diagram · 1 diagram in section
