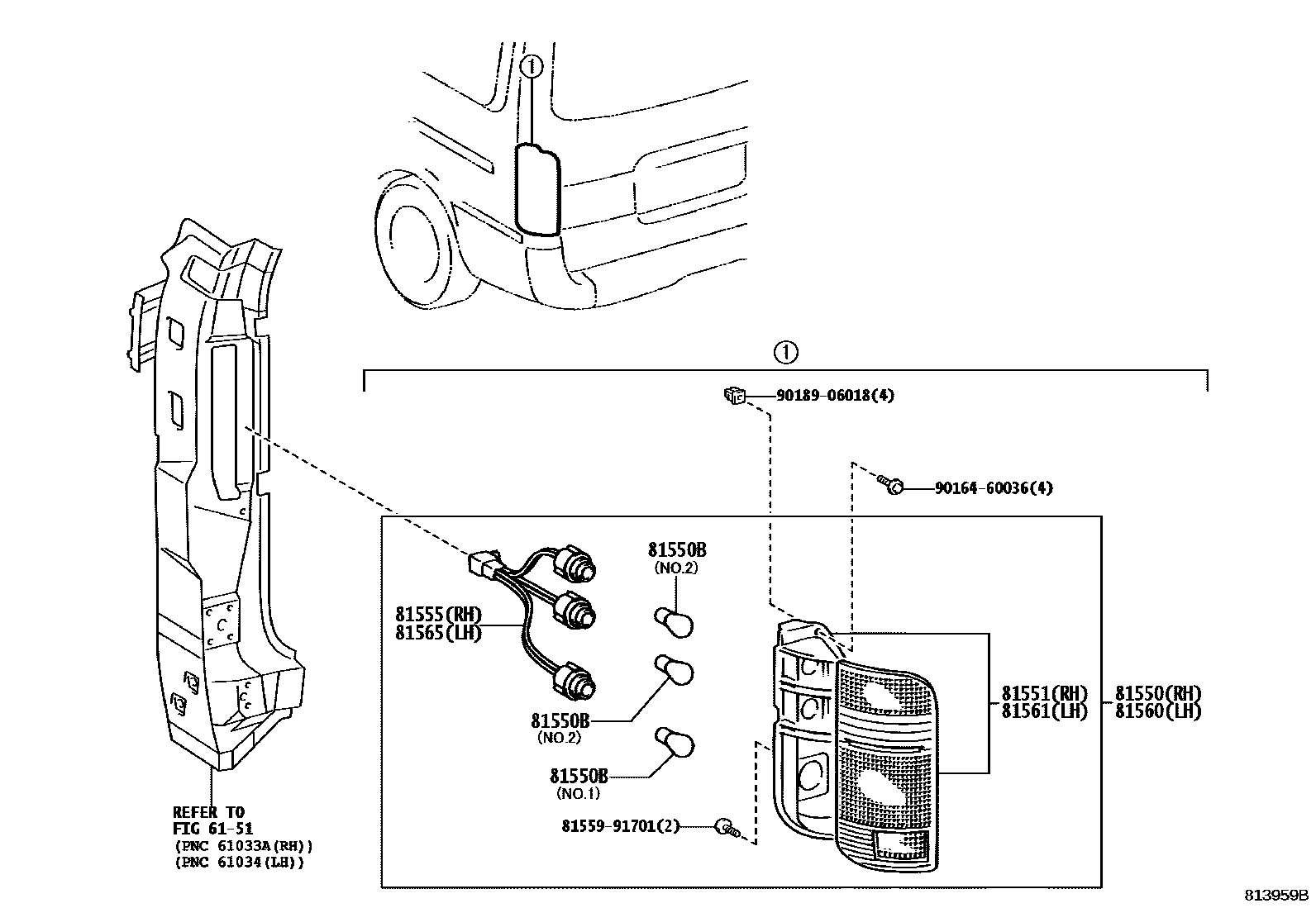

REAR COMBINATION LAMP

0001 1 0002 1

6151

81550LAMP ASSY, REAR COMBINATION, RH

main81550-27070iTRU300..DM5..CBU;BZU300,340,TRU300,340,500..IV3200705-200907

12V

main81550-27071iBZU300,340,TRU300,340,500..(T2,T3,T4)..CBU200908

main81550-37210iXZU508..VAN200610

24V

main81550-37240iXZU314,324..30T..DCRUE;XZU30#,33#,34#..(T3,T4,T5)..6F..CBU201003

main81550-37240iXZU304..DM3,DM6;XZU30#,33#,34#,354,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..(IV3,IV4,IV6,IV7)200610-200707

24V

main81550-37260iXZU504..(DCRTJ,DCRUD)..CBU;XZU504..5F..WT..DCRTH..CBU;XZU508..T4..5F..(DCRTH,DCRUD)..CBU;XZU308..T5..MTM..(DCRTJ,DCRUE)..CBU;XZU308..SCB..T4..(DCRTJ,DCRUE)..CBU;XZU200707-200908

main81550-37260iXZU504..(DCRTJ,DCRUD)..CBU;XZU504..5F..WT..DCRTH..CBU;XZU508..T4..5F..(DCRTH,DCRUD)..CBU;XZU308..T5..MTM..(DCRTJ,DCRUE)..CBU;XZU308..SCB..T4..(DCRTJ,DCRUE)..CBU;XZU200707

24V

main81550-37260iXZU304..(DM3,DM6)..DCRUE;XZU30#,33#,34#..(T3,T4,T5)..6F..(IV3,IV6)201003

main81550-37280iBZU300..T4..30T..CBU200707

12V

main81550-37280iTRU300..DM5..CBU;BZU300,340,TRU300,340,500..IV3200707

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014iXZU508..VAN200610

main90981-16014iXZU508..VAN200610

main90981-16015iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

main90981-16015iXZU508..VAN200610

main99132-11210iBZU300,340,TRU300,340,500200705

main99132-21210iBZU300,340,TRU300,340,500200705

81551LENS, REAR COMBINATION LAMP, RH

main81551-37210iXZU508..VAN200610

main81551-60442iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-37100iXZU508..VAN200610

81560LAMP ASSY, REAR COMBINATION, LH

main81560-27040iTRU300..DM5..CBU;BZU300,340,TRU300,340,500..IV3200705-200907

12V

main81560-27041iBZU300,340,TRU300,340,500..(T2,T3,T4)..CBU200908

main81560-37210iXZU508..VAN200610

24V

main81560-37240iXZU304..DM3,DM6;XZU30#,33#,34#,354,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..(IV3,IV4,IV6,IV7)200610-200707

24V

main81560-37240iXZU314,324..30T..DCRUE;XZU30#,33#,34#..(T3,T4,T5)..6F..CBU201003

main81560-37270iXZU304..(DM3,DM6)..(DCRTJ,DCRTM);XZU30#,33#,34#,354,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..(5F,6FC)..(IV3,IV4,IV6,IV7)200707-200908

main81560-37270iXZU304..(DM3,DM6)..(DCRTJ,DCRTM);XZU30#,33#,34#,354,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..(5F,6FC)..(IV3,IV4,IV6,IV7)200707

24V

main81560-37270iXZU304..(DM3,DM6)..DCRUE;XZU30#,33#,34#..(T3,T4,T5)..6F..(IV3,IV6)201003

main81560-37290iBZU300..T4..30T..CBU200707

12V

main81560-37290iTRU300..DM5..CBU;BZU300,340,TRU300,340,500..IV3200707

81561LENS, REAR COMBINATION LAMP, LH

main81561-37210iXZU508..VAN200610

main81561-60372iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-37100iXZU508..VAN200610

8155991701MOULDING, REAR COMBINATION LAMP, RH

main81559-91701

9016460036

main90164-60036

9018906018

main90189-06018

11 parts on this diagram · 2 diagrams in section
