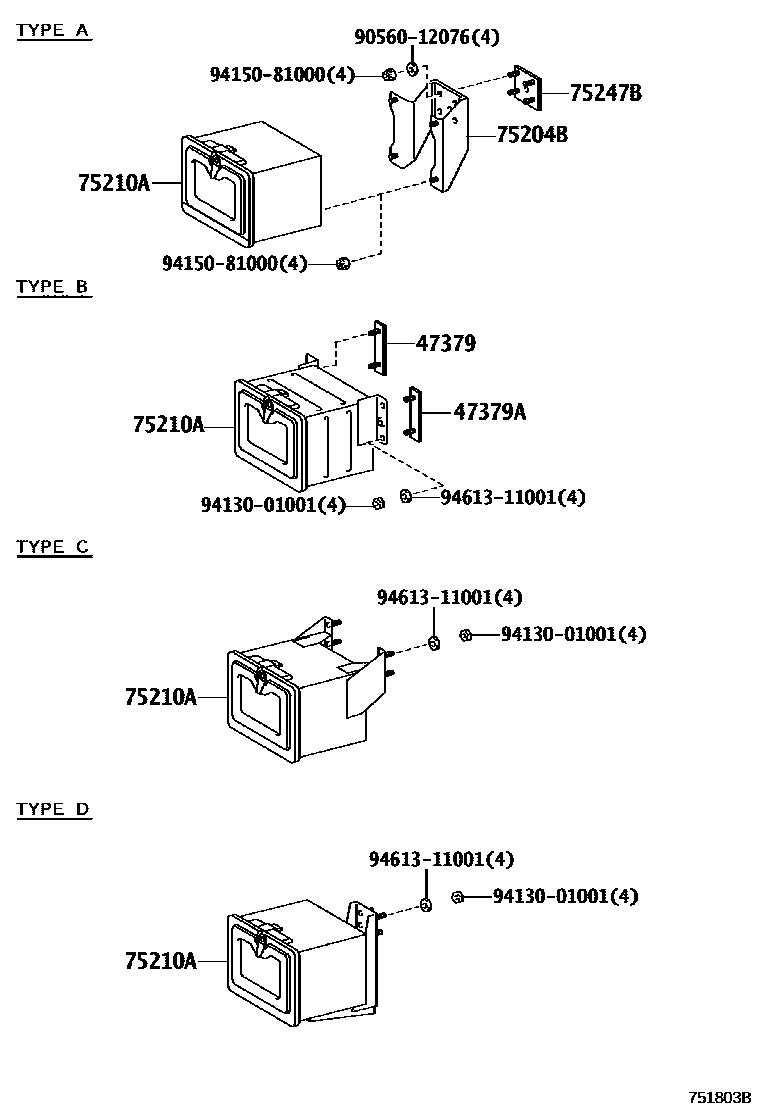

TOOL BOX & LICENSE PLATE BRACKET

0001 1��� ����� 0002 1����� 0003 1����� ����� 0004 1�������, ����������� ������

47379SPACER, BRAKE TUBE, NO.1

main47379-37080iXZU368,568..T4..20T..IV3;BZU300,TRU300,XZU304..T3..(CBU,IV3);BZU300,XZU30#,508..SCB..T4..20T..(CBU,IV3);BZU340,TRU340,500,XZU33#,34#,378,388,504,538,548..SCB..(T3,T200610

47379ASPACER, BRAKE TUBE, NO.2

main47379-37080iXZU368,568..T4..20T..IV3;BZU300,TRU300,XZU304..T3..(CBU,IV3);BZU300,XZU30#,508..SCB..T4..20T..(CBU,IV3);BZU340,TRU340,500,XZU33#,34#,378,388,504,538,548..SCB..(T3,T200610

75204BSTAY SUB-ASSY, TOOL BOX

main75204-37120iXZU348..T2..CBU;XZU348..T2..6FC..IV3;XZU348..SCB..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3;XZU30#,338,50#,538..SCB..(T2,T4,T5)..20T..WT..(CBU,IV3)200610

75210ABOX ASSY, TOOL

main75210-37110iTRU300,XZU304..T3..(5F,6FC)..(CBU,IV3)200610

main75210-37130iXZU304,33#,34#..SCB..(T3,T4)..DCRUE..(CBU,IV3)..1NO201003

sub75210-37230

main75210-37140iTRU500..T2;XZU334,378..SCB..(DCRTJ,DCRTK);XZU304..30T..(DCRTJ,DCRTK)..4NO;BZU300,TRU300,XZU368,568..SCB..T4200610

sub75210-37141

main75210-37210iXZU348..T2..CBU;XZU348..T2..6FC..IV3;XZU348..SCB..5F..(DCRTJ,DCRTK,DCRTM)..IV3;XZU30#,338,50#,538..SCB..(T2,T4,T5)..(5F,6FC)..20T..WT..(CBU,IV3)200610

sub75210-37220

75247BSUPPORT, TOOL BOX

main75247-25040iXZU348..T2..CBU;XZU348..T2..6FC..IV3;XZU348..SCB..5F..(DCRTJ,DCRTK)..IV3;XZU30#,338,50#,538..SCB..(T2,T4,T5)..20T..WT..(CBU,IV3)200610-200705

main75247-25041iXZU348..T2..CBU;XZU348..T2..6FC..IV3;XZU348..SCB..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3;XZU30#,338,50#,538..SCB..(T2,T4,T5)..20T..WT..(CBU,IV3)200706

9056012076

main90560-12076

9413001001

main94130-01001

9415081000

main94150-81000

9461311001

main94613-11001

9 parts on this diagram · 4 diagrams in section
