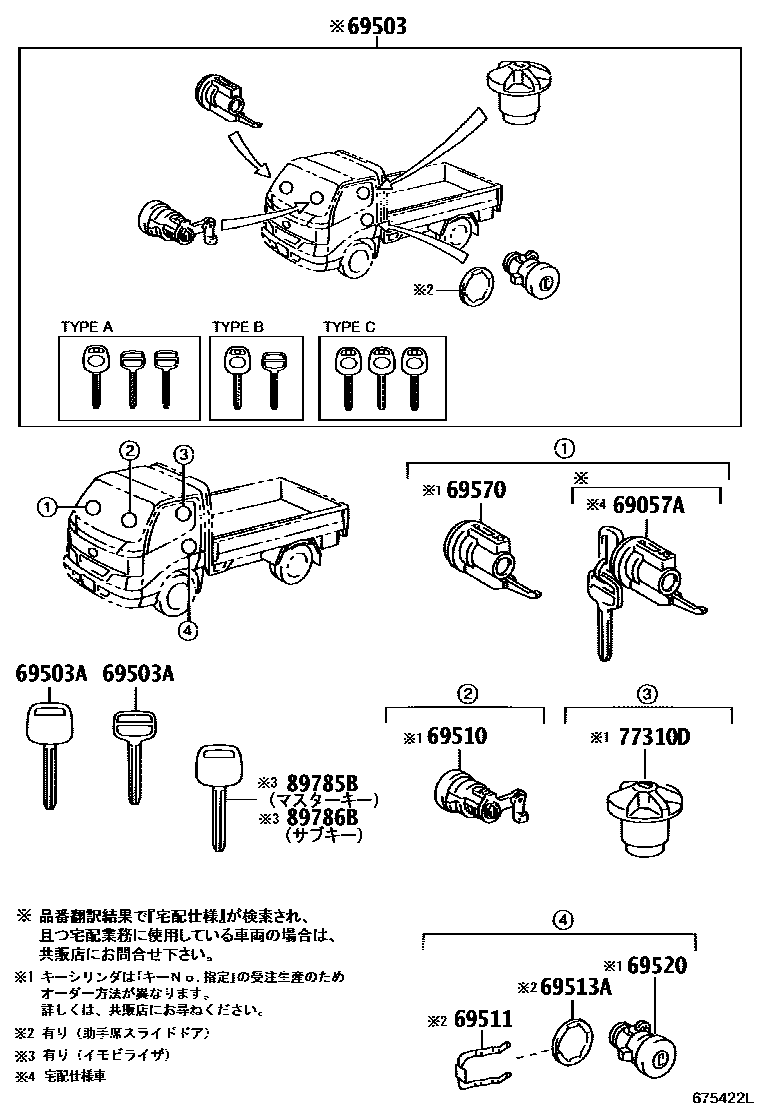

LOCK CYLINDER SET

0001 1DYNA OR TOYOACE 0002 1DUTRO 0003 1DYNA OR TOYOACE 0004 1DUTRO

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-37120iXZU504..ST;XZU50#,538,548,554..6FC;XZU508..(03S,06S,T2)..5F;TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568¥7,100200610-200801

DUTRO

main69057-37140iXZU50#..T4..DCRUD..IV3¥7,100200610-200801

main69057-37210iXZU548..T3..IV3;XZU568..T4..IV3¥8,000200801

main69057-37220iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568¥6,000200801

main69057-37230iXZU344,508..T4..IV3;XZU508..T5..DCRTJ..IV3;XZU548..T4..DCRUE..IV3;XZU344..T3..30T..DCRTK..IV3;XZU304,338,368,388..T4..20T..(DCRTJ,DCRUE)..IV3;XZU308,348,504..SCB..(¥8,000200801

69503CYLINDER SET, LOCK

main69005-37010iXZU304,344..T4..20T..DCRUE..IV3;XZU50#,524,538,548,554..(DM5,DM7,T3,T4,T5)..5F..WT..(DCRTH,DCRTJ)¥17,900200610-201106

sub69005-37011¥17,900

main69005-37010iXZU348,504..WT..(DCRTH,DCRUD)..IV3;XZU304,344,368,388,508..T4..5F..20T..(DCRTJ,DCRUD)..IV3¥17,900200803-201106

sub69005-37011¥17,900

main69005-37030iXZU304..20T..IV3..1NO¥17,200200610-200801

main69005-37040iTRU300,340,500¥16,800200705-200801

main69005-37080iXZU568..T4..IV3¥18,000200610-201106

main69005-37080iXZU348,504..WT..(DCRTH,DCRUD)..IV3;XZU304,344,368,388,508..T4..5F..20T..(DCRTJ,DCRUD)..IV3¥18,000200803-201106

main69005-37100iXZU304..20T..IV3..1NO¥17,200200610-200801

main69005-37110iBZU300,340¥12,000200705-201106

sub69005-37111¥13,100

main69005-37160iBZU300..DM6¥13,200200705-201106

main69005-37320iXZU508..VAN¥18,400200610-200801

sub69005-37330¥21,100

main69005-37330iXZU508..VAN¥21,100200610-200801

main69005-37340iXZU508..VAN¥18,400200610-200801

main69005-37350iXZU508..VAN¥21,100200610-200801

main69005-37380iXZU508..VAN¥18,400200610-200801

sub69005-37390¥21,100

main69005-37390iXZU508..VAN¥21,100200610-200801

main69005-37400iXZU508..VAN¥18,400200610-200801

main69005-37410iXZU508..VAN¥21,100200610-200801

main69005-37490iTRU300,340,500¥16,800200705-200801

sub69005-37600¥17,800

main69005-37500iBZU300,340¥16,800200705-201106

main69005-37510iBZU300..DM6¥16,800200705-201106

main69005-37560iBZU300,340..T4..20T..IV3¥13,800200705-201106

sub69005-37561¥13,800

main69005-37570iBZU300,340..T4..20T..IV3¥13,900200705-201106

main69005-37800iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB¥26,900200801-200904

sub69005-37801¥27,000

main69005-37801iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB¥27,000200905-201106

sub69005-37802¥17,300

main69005-37810iXZU304..20T..IV3..1NO¥26,900200801-200904

sub69005-37811¥26,900

main69005-37811iXZU304..20T..IV3..1NO¥26,900200905-201106

sub69005-37812¥17,200

main69005-37820iXZU344,508..T4..IV3;XZU508..T5..DCRTJ..IV3;XZU548..T4..DCRUE..IV3;XZU344..T3..30T..DCRTK..IV3;XZU304,338,368,388..T4..20T..DCRTJ..IV3;XZU308,348,504..SCB..(T4,T5)..¥26,900200801-200904

sub69005-37821¥27,000

main69005-37821iXZU344,508..T4..IV3;XZU508..T5..DCRTJ..IV3;XZU548..T4..DCRUE..IV3;XZU344..T3..30T..DCRTK..IV3;XZU304,338,368,388..T4..20T..(DCRTJ,DCRUE)..IV3;XZU308,348,504..SCB..(¥27,000200905-201106

sub69005-37822¥20,700

main69005-37830iTRU300,340,500¥26,900200801-200904

sub69005-37831¥26,900

main69005-37831iTRU300,340,500¥26,900200905-201106

main69005-37840iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB¥26,900200801-200904

sub69005-37841¥26,900

main69005-37841iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB¥26,900200905-201106

sub69005-37842¥15,600

main69005-37850iXZU304..20T..IV3..1NO¥26,900200801-200904

sub69005-37851¥26,900

main69005-37851iXZU304..20T..IV3..1NO¥26,900200905-201106

sub69005-37852¥15,600

main69005-37860iXZU344,508..T4..IV3;XZU508..T5..DCRTJ..IV3;XZU548..T4..DCRUE..IV3;XZU344..T3..30T..DCRTK..IV3;XZU304,338,368,388..T4..20T..DCRTJ..IV3;XZU308,348,504..SCB..(T4,T5)..¥26,900200801-200904

sub69005-37861¥27,000

main69005-37861iXZU548..T3..IV3;XZU568..T4..IV3¥27,000200905-201106

sub69005-37862¥17,300

main69005-37870iTRU300,340,500¥26,900200801-200904

sub69005-37871¥26,900

main69005-37871iTRU300,340,500¥26,900200905-201106

main69005-37880iXZU508..VAN¥27,900200801-200904

sub69005-37881¥28,000

main69005-37881iXZU508..VAN¥28,000200905-201106

sub69005-37882¥18,500

main69005-37890iXZU508..VAN¥30,700200801-200904

sub69005-37891¥30,600

main69005-37891iXZU508..VAN¥30,600200905-201106

sub69005-37892¥21,600

main69005-37A00iXZU508..VAN¥27,900200801-200904

sub69005-37A01¥28,000

main69005-37A01iXZU508..VAN¥28,000200905-201106

sub69005-37A02¥17,900

main69005-37A10iXZU508..VAN¥30,700200801-200904

sub69005-37A11¥30,600

main69005-37A11iXZU508..VAN¥30,600200905-201106

sub69005-37A12¥21,600

main69005-37A20iXZU508..VAN¥27,900200801-200904

sub69005-37A21¥28,000

main69005-37A21iXZU508..VAN¥28,000200905-201106

sub69005-37A22¥17,900

main69005-37A30iXZU508..VAN¥30,700200801-200904

sub69005-37A31¥30,600

main69005-37A31iXZU508..VAN¥30,600200905-201106

sub69005-37A32¥19,600

main69005-37A40iXZU508..VAN¥27,900200801-200904

sub69005-37A41¥28,000

main69005-37A41iXZU508..VAN¥28,000200905-201106

sub69005-37A42¥16,200

main69005-37A50iXZU508..VAN¥30,700200801-200904

sub69005-37A51¥30,600

main69005-37A51iXZU508..VAN¥30,600200905-201106

sub69005-37A52¥17,800

main69005-37B51iXZU548..T4;XZU348..T4..6FC;XZU344..20T..CBU;XZU348..DCB..IV3;XZU368..DM5..IV3;XZU344..MTM..(DCRTJ,DCRUE)..IV3;XZU304,344..(T3,T4)..6FC..20T..IV3;XZU314,324,524,554.¥30,400200908-201106

sub69005-37B52¥19,500

69503AKEY, BLANK

main90999-00185iXZU348,504..WT..(DCRTH,DCRUD)..IV3;XZU304,344,368,388,508..T4..5F..20T..(DCRTJ,DCRUD)..IV3¥1,790200610-201106

main90999-00186iXZU568..T4..IV3¥1,430200610-201106

main90999-00224iXZU568..T4..IV3¥2,070200610-201106

main90999-00225iXZU348,504..WT..(DCRTH,DCRUD)..IV3;XZU304,344,368,388,508..T4..5F..20T..(DCRTJ,DCRUD)..IV3¥1,550200610-201106

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568¥5,600200610

DYNA OR TOYOACE

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iBZU300,XZU304..DM6..IV3¥160200610

69513APAD, DOOR CYLINDER

main69513-32010iBZU300,XZU304..DM6..IV3¥120200610

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-37040iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568¥5,600200610

DYNA OR TOYOACE

main69520-37050iBZU300,XZU304..DM6..IV3¥8,800200610

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-37040iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568¥12,000200610-200711

DYNA OR TOYOACE

sub69570-37050¥12,000

main69570-37050iXZU504..ST;XZU50#,538,548,554..6FC;XZU508..(03S,06S,T2)..5F;TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568¥12,000200711-201106

DYNA OR TOYOACE

main69570-37060iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568¥10,000200801-200804

sub69570-37070¥11,900

main69570-37070iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568¥11,900200804-201106

77310DCAP ASSY, FUEL TANK

main77310-37010iTRU300,340,500¥9,300200705-201106

DYNA OR TOYOACE

main77310-37020iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB¥7,200200610-201106

DYNA OR TOYOACE

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-37020iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568¥2,340200801

main89785-60160iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568¥2,570200801

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-37020iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568¥3,720200801-200904

sub89786-37021¥2,340

main89786-37021iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568¥2,340200905

main89786-37040iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568¥2,570200905

main89786-60170iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568¥3,090200801-200904

11 parts on this diagram · 4 diagrams in section
