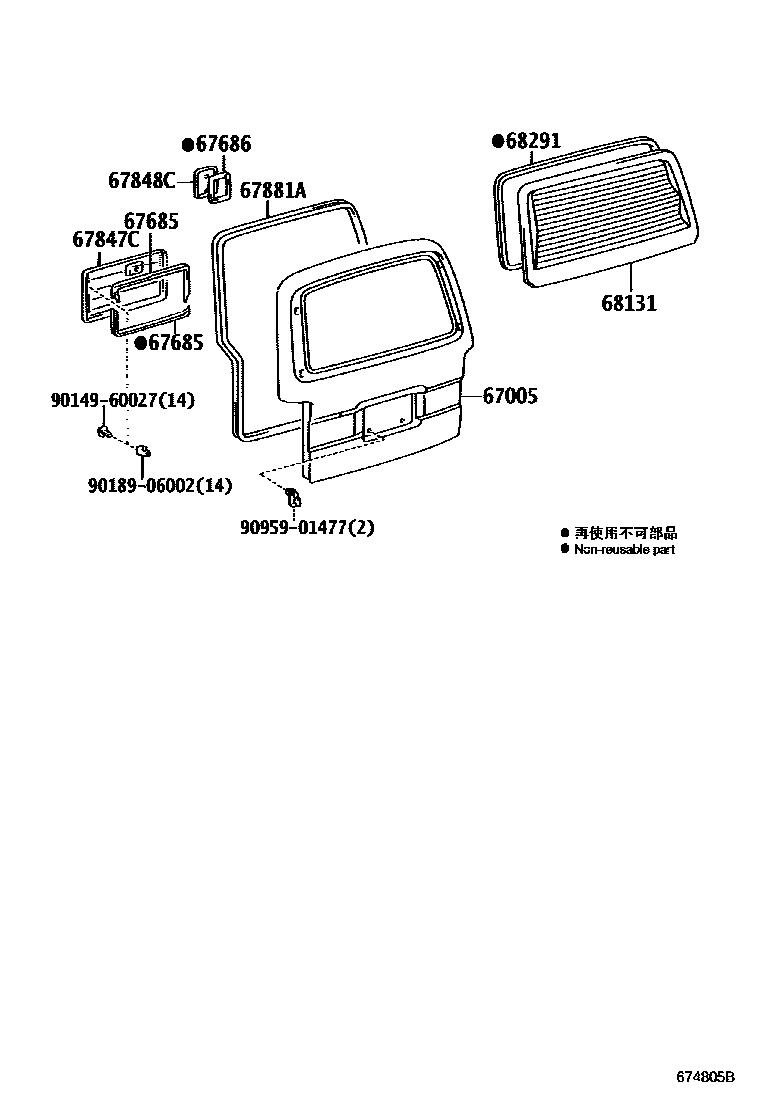

BACK DOOR PANEL & GLASS

0001 1 0002 1��(���������������) 0003 1

67005PANEL SUB-ASSY, BACK DOOR

main67005-37080iXZU508..03S200610

main67005-37090iXZU508..06S200610-200908

main67005-95N65iXZU508..VAN200610

main67005-95N89iXZU508..VAN200610

67685PACKING, BACK DOOR SERVICE HOLE, NO.1

main67685-95J01×2iXZU508..VAN200610

67686PACKING, BACK DOOR SERVICE HOLE, NO.2

main67526-95A00×2iXZU508..VAN200610

67847COVER, BACK DOOR SERVICE HOLE, RH

main67847-95J07iXZU508..VAN200610

67847CCOVER, BACK DOOR SERVICE HOLE, NO.1

main67847-95J05iXZU508..VAN200610

67848COVER, BACK DOOR SERVICE HOLE, LH

main67848-95J01iXZU508..VAN200610

67848CCOVER, BACK DOOR SERVICE HOLE, NO.2

main67848-95J00×2iXZU508..VAN200610

67881AWEATHERSTRIP, BACK DOOR

main67881-26010iXZU508..VAN200610

main67881-95J15iXZU508..03S200610

main67881-95J16iXZU508..VAN200610

68131GLASS, BACK DOOR

main68131-26180iXZU508..VAN200610

main68131-37020iXZU508..VAN200610

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95J05iXZU508..VAN200610

9014960027

main90149-60027

9018906002

main90189-06002

9095901477

main90959-01477

13 parts on this diagram · 3 diagrams in section
