SLIDE ROLLER & RAIL
68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER
68029ABASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68310AROLLER ASSY, SLIDE DOOR, UPPER, LH
68310BROLLER ASSY, SLIDE DOOR, UPPER RH
68317ASTOPPER, SLIDE DOOR UPPER RAIL
68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE
68335PAD, SLIDE DOOR UPPER RAIL
68335APAD, SLIDE DOOR UPPER RAIL, LH
68345COVER, SLIDE DOOR CENTER RAIL
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68360BROLLER ASSY, SLIDE DOOR, LOWER LH
68373MOULDING, SLIDE RAIL END, RH
68374MOULDING, SLIDE RAIL END, LH
68376BRACKET, SLIDE DOOR CENTER RAIL
68379SPRING, SLIDE DOOR CATCH, RH
68380DHINGE ASSY, SLIDE DOOR, CENTER RH
68389SPRING, SLIDE DOOR CATCH, LH
68390AHINGE ASSY, SLIDE DOOR, CENTER LH
68395APACKING, SLIDE DOOR CENTER RAIL
68395CPACKING, SLIDE DOOR CENTER RAIL
69043STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
69405BSTOP SUB-ASSY, SLIDE DOOR OPEN
69405DSTOP SUB-ASSY, SLIDE DOOR OPEN, RH
69416BSTOPPER, SLIDE DOOR DOWN MALE
9010508095
main90105-08095
9011906524
main90119-06524
9011906911
main90119-06911
9011908589
main90119-08589
9011908774
main90119-08774
9015460044
main90154-60044
9016260005
main90162-60005
9017908046
main90179-08046
9018906063
main90189-06063
9054109027
main90541-09027
9054112009
main90541-12009
91511G0610
main91511-G0610

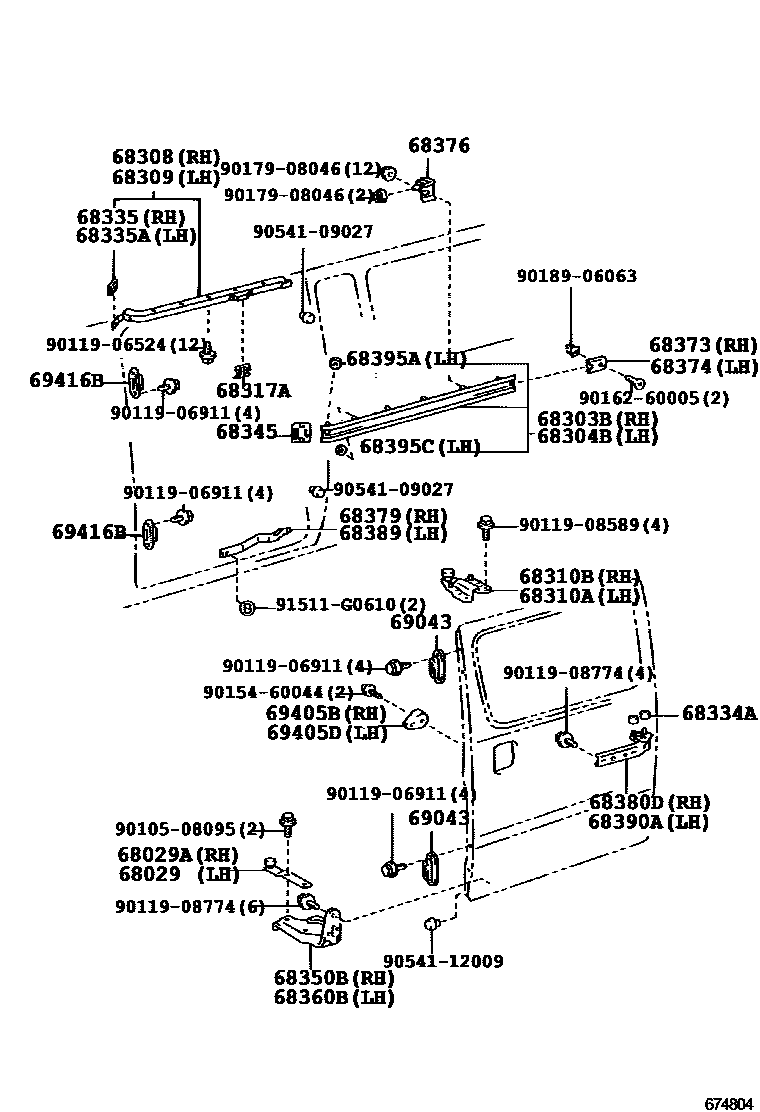

40 parts on this diagram · 1 diagram in section
