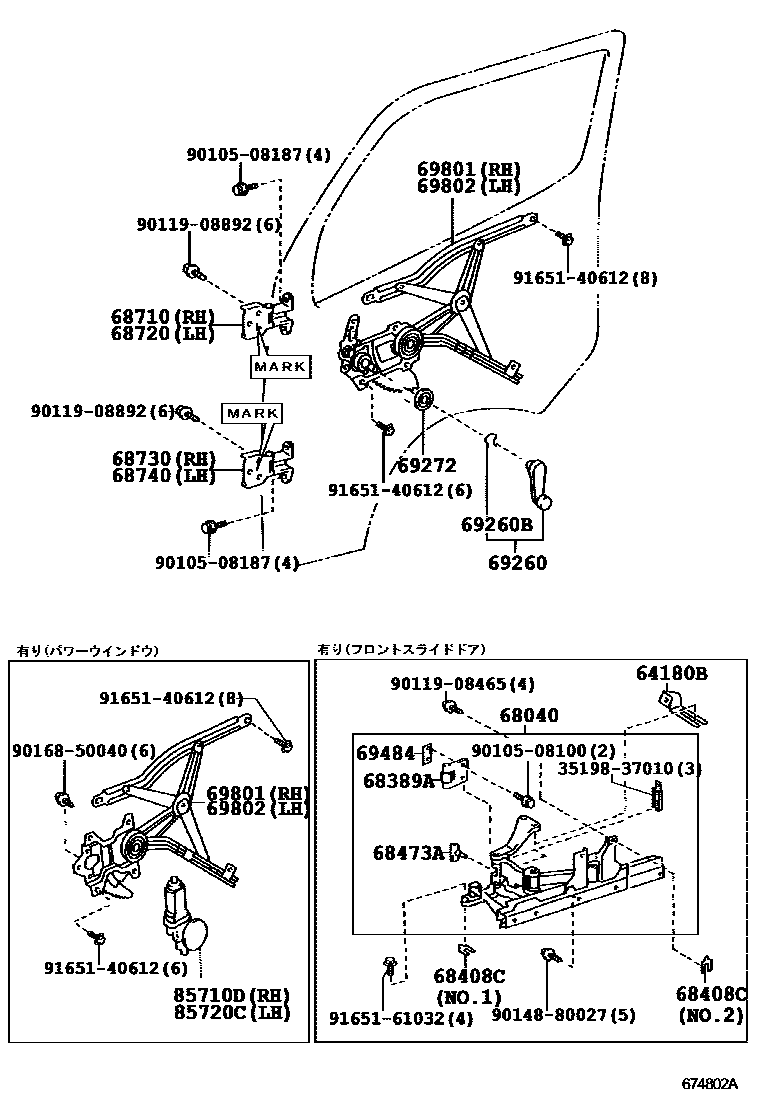

FRONT DOOR WINDOW REGULATOR & HINGE

64180BBRACKET ASSY, REAR MOUNTING, LH

main64180-37010iBZU300,XZU304..DM6..IV3200610

main64180-37020iBZU300,XZU304..DM6..IV3200610

main64180-37030iBZU300,XZU304..DM6..IV3200610

main64180-37040iBZU300,XZU304..DM6..IV3200610

main64180-37050iBZU300,XZU304..DM6..IV3200610

main64180-37060iBZU300,XZU304..DM6..IV3200610

68040GUIDE ASSY, FRONT SLIDE DOOR

main68040-37010iBZU300,XZU304..DM6..IV3200610

sub68040-37011

68389ASPRING, SLIDE DOOR CATCH, LH

main68389-37010iBZU300,XZU304..DM6..IV3200610

68408CSHIM

main90565-12008iBZU300,XZU304..DM6..IV3200610

main90565-12009iBZU300,XZU304..DM6..IV3200610

main90565-12010iBZU300,XZU304..DM6..IV3200610

main90565-12011iBZU300,XZU304..DM6..IV3200610

main90565-12012iBZU300,XZU304..DM6..IV3200610

68473ASTOPPER, FRONT SLIDE DOOR ARM

main68473-37010iBZU300,XZU304..DM6..IV3200610

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

main68710-37031iXZU344,508..T4..IV3;XZU508..T5..6FC..IV3;XZU548..T4..DCRUE..IV3;XZU344..T3..30T..DCRTK..IV3;XZU308,348,504..SCB..(T4,T5)..WT..(DCRTH,DCRTJ,DCRUD,DCRUE)..IV3;BZU300,200610-201106

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-37010iXZU304..20T..IV6;BZU300,340..T3,T4;TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..03S,06S,DM3,DM5,DM7,T2,T3,T4,T5200610-201106

main68730-37031iXZU344,508..T4..IV3;XZU508..T5..6FC..IV3;XZU548..T4..DCRUE..IV3;XZU344..T3..30T..DCRTK..IV3;XZU308,348,504..SCB..(T4,T5)..WT..(DCRTH,DCRTJ,DCRUD,DCRUE)..IV3;BZU300,200610-201106

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

main68730-37031iXZU344,508..T4..IV3;XZU508..T5..6FC..IV3;XZU548..T4..DCRUE..IV3;XZU344..T3..30T..DCRTK..IV3;XZU308,348,504..SCB..(T4,T5)..WT..(DCRTH,DCRTJ,DCRUD,DCRUE)..IV3;BZU300,200610-201106

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-37020iXZU304..20T..IV6;BZU300,340..T3,T4;TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..03S,06S,DM3,DM5,DM7,T2,T3,T4,T5200610-201106

main68710-37031iXZU344,508..T4..IV3;XZU508..T5..6FC..IV3;XZU548..T4..DCRUE..IV3;XZU344..T3..30T..DCRTK..IV3;XZU308,348,504..SCB..(T4,T5)..WT..(DCRTH,DCRTJ,DCRUD,DCRUE)..IV3;BZU300,200610-201106

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-B3iXZU30#,334,348,378,388..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV4);BZU300,340,TRU300,340,500,XZU338,344,368,50#,538,548,568..(SCB,VAN)..(03S,06S,DM6,T2,T3,T4,T5)200610-201106

MD.CHARCOAL,TRIM1#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iXZU30#,334,348,378,388..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV4);BZU300,340,TRU300,340,500,XZU338,344,368,50#,538,548,568..(SCB,VAN)..(03S,06S,DM6,T2,T3,T4,T5)200610

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010iXZU30#,334,348,378,388..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV4);BZU300,340,TRU300,340,500,XZU338,344,368,50#,538,548,568..(SCB,VAN)..(03S,06S,DM6,T2,T3,T4,T5)200610

69484BASE, SLIDE DOOR OPEN CATCH, LH

main69484-37010iBZU300,XZU304..DM6..IV3200610

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37050iXZU30#,33#,34#,368,378,388,50#,538,548,568..(03S,06S,DM6,T2,T3,T4,T5)..(CBU,IV3,IV4)200610-200704

sub69801-37051

main69801-37051iXZU30#,334,348,378,388..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV4);BZU300,340,TRU300,340,500,XZU338,344,368,50#,538,548,568..(SCB,VAN)..(03S,06S,DM6,T2,T3,T4,T5)200705-200905

sub69801-37052

main69801-37052iXZU30#,334,348,378,388..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV4);BZU300,340,TRU300,340,500,XZU338,344,368,50#,538,548,568..(SCB,VAN)..(03S,06S,DM6,T2,T3,T4,T5)200906

main69801-37060iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200706

sub69801-37061

main69801-37061iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200705-200905

sub69801-37062

main69801-37062iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200906

sub69801-37063

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37050iXZU30#,33#,34#,368,378,388,50#,538,548,568..(03S,06S,DM6,T2,T3,T4,T5)..(CBU,IV3,IV4)200610-200704

sub69802-37051

main69802-37051iXZU30#,334,348,378,388..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV4);BZU300,340,TRU300,340,500,XZU338,344,368,50#,538,548,568..(SCB,VAN)..(03S,06S,DM6,T2,T3,T4,T5)200705-200905

sub69802-37052

main69802-37052iXZU30#,334,348,378,388..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV4);BZU300,340,TRU300,340,500,XZU338,344,368,50#,538,548,568..(SCB,VAN)..(03S,06S,DM6,T2,T3,T4,T5)200906

main69802-37060iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200706

sub69802-37061

main69802-37061iBZU300,340,TRU300,340,500200705-200905

sub69802-37062

main69802-37062iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200906

sub69802-37063

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37080iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main85710-37090iBZU300,340,TRU300,340,500200705

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37070iXZU304..20T..IV3..1NO200610

main85720-37100iBZU300..DM6200705

main85720-37110iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main85720-37120iBZU300,340,TRU300,340,500200705

3519837010CLAMP, TRANSAXLE APPLY TUBE, NO.4

main35198-37010

9010508100

main90105-08100

9010508187

main90105-08187

9011908465

main90119-08465

9011908892

main90119-08892

9014880027

main90148-80027

9016850040

main90168-50040

9165140612

main91651-40612

9165161032

main91651-61032

26 parts on this diagram · 1 diagram in section
