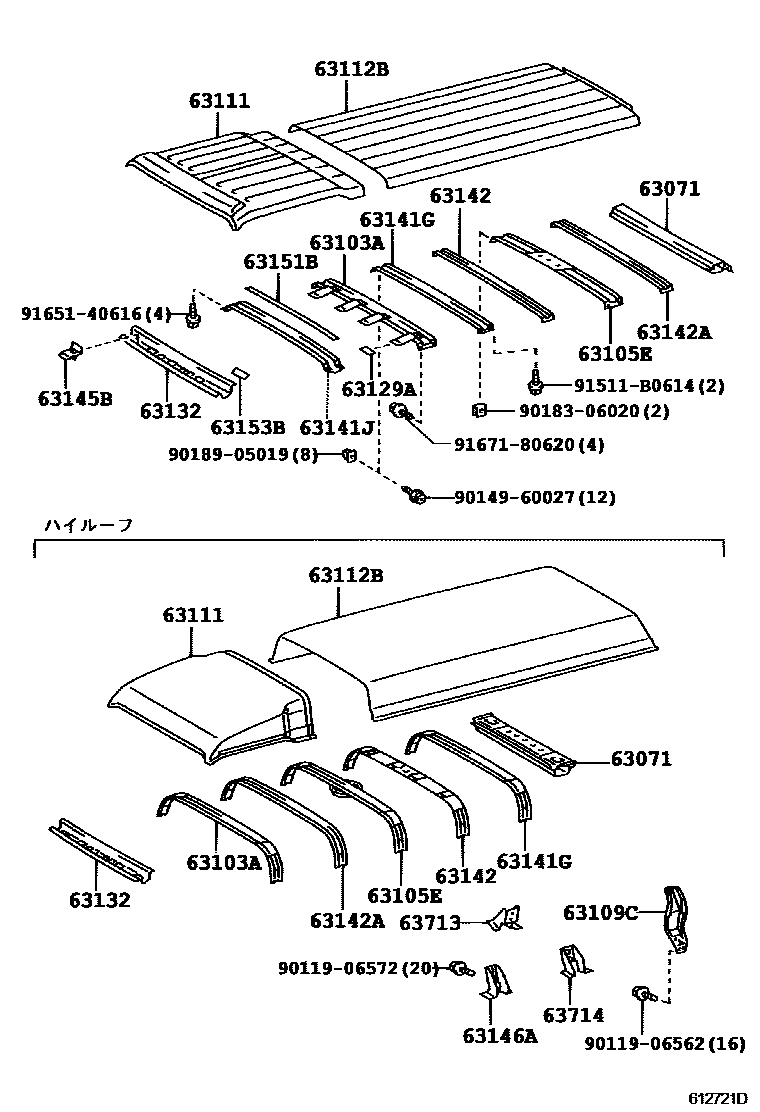

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1�� (��� ������ ������) 0006 1�� (��� ���)

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-26030iXZU508..VAN200610

main63071-26060iXZU508..VAN200610

main63071-95J05iXZU508..03S200610

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-37030iXZU508..VAN200610

sub63103-37031

main63103-37040iXZU508..06S200610-200908

main63123-37010iTRU300,XZU308,348,378,388..DCB..20T200610

sub63123-37011

63105EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

main63104-95906iXZU508..06S200610-200905

main63105-26900iXZU508..VAN200610

63109CRETAINER SUB-ASSY, ROOF REINFORCEMENT

main63109-37010×2iXZU508..03S200610

main63109-37020×2iXZU508..06S200610-200908

63111PANEL, ROOF

main63111-37120iTRU300..DM5..CBU;XZU304..DM3,DM6,T4,T5;XZU304..30T..(IV3,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568..SCB;BZU300,340,TRU300,340,500,XZU33#,34#,378,388,538,200610

main63111-37130iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610

sub63111-37131

main63111-37140iTRU300,XZU308,348,378,388..DCB..20T200610

main63111-37150iXZU304,334,378..IV4200610

main63111-37160iXZU508..VAN200610

main63111-37170iXZU508..06S200610-200908

main63111-37240iXZU304,334,378..IV4200610

63112BPANEL, ROOF, REAR

main63112-37030iXZU508..VAN200610

main63112-37040iXZU508..06S200610-200908

63129ACUSHION, ROOF REINFORCEMENT

main63129-37010×6iXZU304,334,378..IV4200610

main63129-37020×4iXZU508..VAN200610

63132PANEL, WINDSHIELD HEADER, INNER

main63132-37071iTRU300..20T..CBU;XZU304..DM3,DM6,T4,T5;XZU348,378,388..DCB..CBU;XZU304..30T..(IV3,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;BZU300,340,TRU300,34200610

main63132-37082iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610

main63132-37091iXZU508..03S;XZU304,334,378..IV4200610

main63132-37131iXZU508..VAN200610

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63105-95901iXZU508..06S200610-200905

main63141-26900iXZU508..VAN200610-201106

main63141-37060iTRU300..20T..CBU;XZU304..DM3,DM6,T4,T5;XZU348,378,388..DCB..CBU;XZU304..30T..(IV3,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;BZU300,340,TRU300,34200610-201106

main63141-37070iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610-201106

main63141-37080iXZU508..VAN200610-201106

main63143-37040iXZU304,334,378..IV4200610-201106

63141JREINFORCEMENT, ROOF PANEL

main63141-37090iXZU508..VAN200610

63142REINFORCEMENT, ROOF PANEL, NO.2

main63105-37020iXZU508..03S200610-201106

main63105-37050iXZU508..06S200610-200908

main63141-37140iTRU300,XZU308,348,378,388..DCB..20T200610-201106

sub63141-37141

main63142-26900iXZU508..VAN200610-201106

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-26900iXZU508..VAN200610-201106

main63149-95901iXZU508..03S200610-201106

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-37030iXZU508..VAN200610

sub63145-37031

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-95J00×8iXZU508..06S200610-200908

63151BSEAL, ROOF PANEL REINFORCEMENT

main63151-37050×2iXZU508..VAN200610

63153BSHIM, ROOF REINFORCEMENT

main63153-37010iXZU508..VAN200610

63713BRACKET, ROOF PANEL REINFORCEMENT, NO.3

main63713-37010iXZU508..06S200610-200908

63714BRACKET, ROOF PANEL REINFORCEMENT, NO.4

main63714-37010iXZU508..06S200610-200908

9011906562

main90119-06562

9011906572

main90119-06572

9014960027

main90149-60027

9018306020

main90183-06020

9018905019

main90189-05019

91511B0614

main91511-B0614

9165140616

main91651-40616

9167180620

main91671-80620

26 parts on this diagram · 6 diagrams in section
