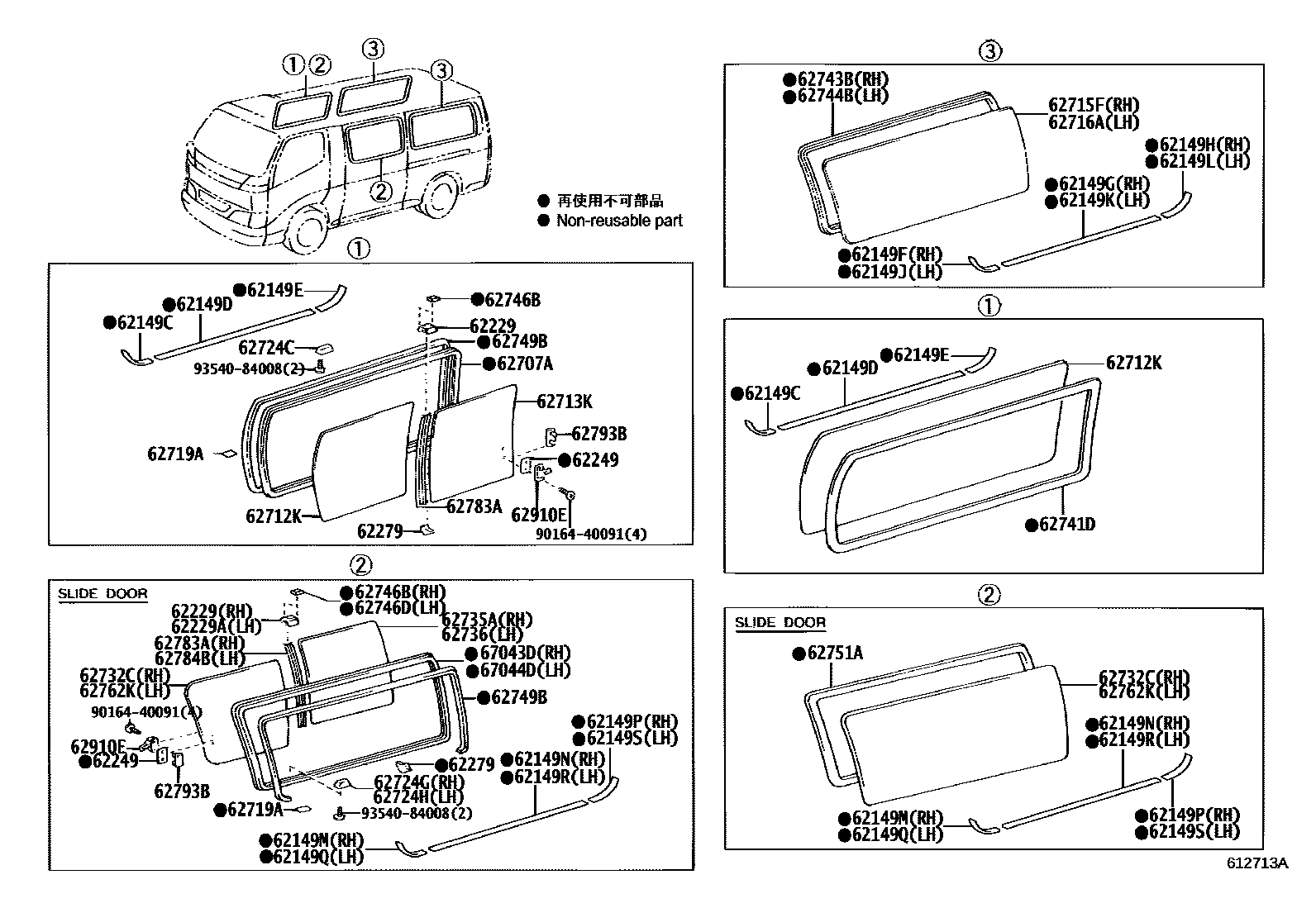

SIDE WINDOW
62149CTAPE, SIDE FRONT WINDOW FRAME, RH NO.1
62149DTAPE, SIDE FRONT WINDOW FRAME, RH NO.2
62149ETAPE, SIDE FRONT WINDOW FRAME, RH NO.3
62149FTAPE, SIDE REAR WINDOW FRAME, RH NO.1
62149GTAPE, SIDE REAR WINDOW FRAME, RH NO.2
62149HTAPE, SIDE REAR WINDOW FRAME, RH NO.3
62149JTAPE, SIDE REAR WINDOW FRAME, LH NO.1
62149KTAPE, SIDE REAR WINDOW FRAME, LH NO.2
62149LTAPE, SIDE REAR WINDOW FRAME, LH NO.3
62149MTAPE, SLIDE DOOR WINDOW FRAME, RH NO.1
62149NTAPE, SLIDE DOOR WINDOW FRAME, RH NO.2
62149PTAPE, SLIDE DOOR WINDOW FRAME, RH NO.3
62149QTAPE, SLIDE DOOR WINDOW FRAME, LH NO.1
62149RTAPE, SLIDE DOOR WINDOW FRAME, LH NO.2
62149STAPE, SLIDE DOOR WINDOW FRAME, LH NO.3
62229PACKING, SIDE WINDOW
62229APACKING, SIDE WINDOW, NO.2
62249PLATE, SIDE WINDOW, RH
62279SPACER, SIDE WINDOW FRAME, UPPER
62707AFRAME SUB-ASSY, SIDE FRONT WINDOW, RH
62712KGLASS, SIDE WINDOW, FRONT RH
62713KGLASS, SIDE WINDOW, REAR RH
62715FGLASS, SIDE REAR WINDOW, RH
62716AGLASS, SIDE REAR WINDOW, LH
62719APACKING, SIDE FRONT WINDOW, UPPER
62724CSTOP, SIDE FRONT WINDOW GLASS, RH
62724GSTOP, SLIDE DOOR WINDOW GLASS, RH
62724HSTOP, SLIDE DOOR WINDOW GLASS, LH
62732CGLASS, SLIDE DOOR WINDOW, FRONT RH
62735AGRASS, SLIDE DOOR WINDOW, REAR RH
62736GLASS, SLIDE DOOR WINDOW, REAR LH
62741DWEATHERSTRIP, SIDE FRONT WINDOW
62743BWEATHERSTRIP, SIDE REAR WINDOW
62744BWEATHERSTRIP, SIDE REAR WINDOW, LH
62746BPACKING, QUARTER WINDOW, RH
62746DPACKING, QUARTER WINDOW, LH
62749BSEAL, SIDE WINDOW FRAME
62751AWEATHERSTRIP, SLIDE DOOR WINDOW
62762KGLASS, SIDE DOOR WINDOW, FRONT LH
62783ASASH, SIDE WINDOW, CENTER
62784BSASH, QUARTER WINDOW, CENTER LH
62793BRETAINER, SIDE WINDOW LOCK, RH
62910ELOCK ASSY, SIDE WINDOW
67043DFRAME SUB-ASSY, SLIDE DOOR WINDOW, RH
67044DFRAME SUB-ASSY, SLIDE DOOR WINDOW, LH
9016440091
main90164-40091
9354084008
main93540-84008
47 parts on this diagram · 1 diagram in section
