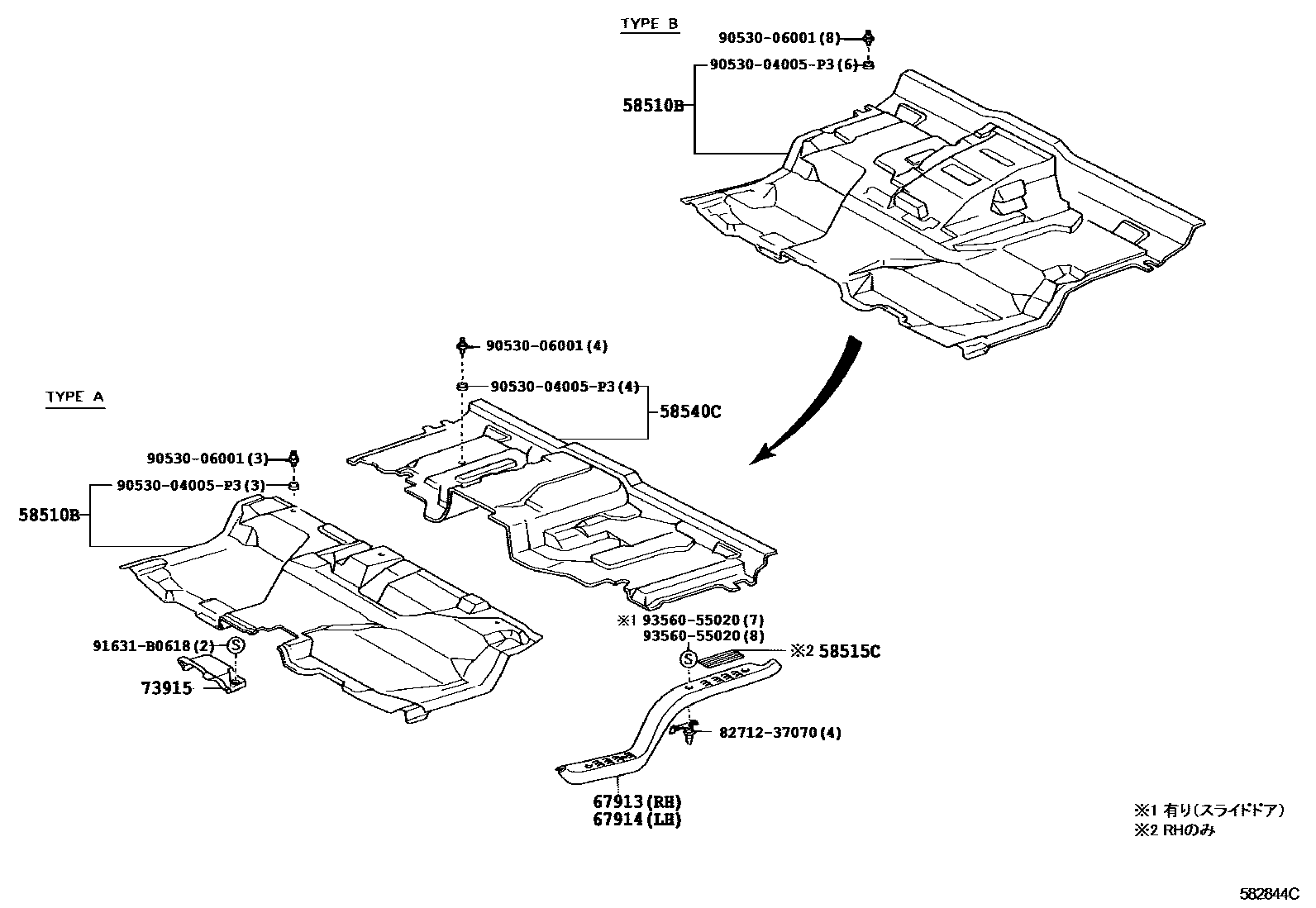

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1

58510BMAT, FRONT FLOOR, FRONT

main58510-37C20-B0iBZU300..DM6200705-201106

main58510-37C30-B0iBZU300..DM6200705-201106

main58510-37C40-B0iBZU300,340200705-201106

main58510-37D20-B0iBZU300..DM6200705-201106

main58510-37D30-B0iBZU300,340200705-201106

main58510-37D40-B0iBZU300..DM6200705-201106

main58510-37D50-B0iBZU300,340..T3,T4200705-201106

main58510-37D60-B0iXZU304..MTM..20T..IV3..1NO;XZU304..(T3,T5)..MTM..30T..CBU;XZU334,34#..SCB..MTM..(20T,30T)..(DCRTJ,DCRTK,DCRUE)..CBU200610-201106

main58510-37D70-B0iTRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..MTM200610-201106

main58510-37D80-B0iXZU304..MTM..20T..IV3..1NO200610-201106

main58510-37D90-B0iXZU304..MTM..20T..IV3..1NO;XZU304..(T3,T5)..MTM..30T..CBU;XZU334,34#..SCB..MTM..(20T,30T)..(DCRTJ,DCRTK,DCRUE)..CBU200610-201106

main58510-37E00-B0iTRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..MTM200610-201106

main58510-37E10-B0iXZU304..MTM..20T..IV3..1NO200610-201106

main58510-37E20-B0iXZU304..(T3,T5)..MTM..30T..CBU;XZU334,34#..SCB..MTM..(20T,30T)..(DCRTJ,DCRTK,DCRUE)..CBU200610-201106

main58510-37E30-B0iXZU304..(T3,T4,T5)..MTM..IV3;XZU304..(DM6,T3,T4,T5)..MTM..(CBU,IV6);TRU300,340,500,XZU308,33#,34#,354,50#,538,548..SCB..(T2,T3,T4,T5)..MTM200610-201106

main58510-37E40-B0iXZU304..6FC..20T..IV3..1NO;XZU304,334,34#..6FC..CBU..1NO200610-201106

main58510-37E50-B0iXZU30#,33#,34#,354,50#,538,548,554..SCB..6FC200610-201106

main58510-37E60-B0iXZU304..6FC..20T..IV3..1NO200610-201106

main58510-37E70-B0iXZU304..6FC..20T..IV3..1NO;XZU304,334,34#..6FC..CBU..1NO200610-201106

main58510-37E80-B0iXZU30#,33#,34#,354,50#,538,548,554..SCB..6FC200610-201106

main58510-37E90-B0iXZU304..6FC..20T..IV3..1NO200610-201106

main58510-37F00-B0iXZU304,334,34#..6FC..CBU..1NO200610-201106

main58510-37F10-B0iXZU304..6FC..(CBU,IV6);XZU304..(T3,T4)..6FC..IV3;XZU308,33#,34#,50#,538,548..SCB..6FC200610-201106

main58510-37F20-B0iXZU378,388..30T..CBU200610-201106

main58510-37F30-B0iXZU368,378,388,568..SCB200610-201106

main58510-37F40-B0iXZU378,388..30T..CBU200610-201106

main58510-37F50-B0iXZU568;XZU368,378,388..SCB..(T3,T4)200610-201106

main58510-37F60-B0iXZU304..(T3,T5)..MTM..30T..CBU;XZU334,34#..SCB..MTM..(20T,30T)..(DCRTJ,DCRTK,DCRUE)..CBU200610-201106

main58510-37F70-B0iXZU314,324,338,344,504,524..MTM;XZU30#,334,348,354,508,538,548,554..SCB..(DM3,DM5,T2,T3,T4,T5)..MTM..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3)200610-201106

main58510-37F80-B0iXZU304,334,34#..6FC..CBU..1NO200610-201106

main58510-37F90-B0iXZU30#,33#,34#,354,50#,538,548,554..SCB..(DM5,T2,T3,T4,T5)..6FC..(CBU,IV3)200610-201106

main58510-37G00-B0iXZU378,388..30T..CBU200610-201106

main58510-37G10-B0iXZU368,378,388,568..SCB200610-201106

main58510-37G20-B0iXZU30#,334,348,378,388,508..(DCB,VAN)..MTM200610-201106

DARK CHARCOAL,TRIM1#

main58510-37G30-B0iTRU300..T4..20T200705-201106

DARK CHARCOAL,TRIM1#

main58510-37G40-B0iXZU30#,334,508..(DCB,VAN)..6FC200610-201106

DARK CHARCOAL,TRIM1#

main58510-37G50-B0iBZU300..DM6200705-201106

main58510-37G60-B0iBZU300..DM6200705-201106

main58510-37G70-B0iXZU304..MTM..20T..IV3..1NO200610-201106

main58510-37G80-B0iXZU304..MTM..20T..IV3..1NO200610-201106

main58510-37G90-B0iXZU304..6FC..20T..IV3..1NO200610-201106

main58510-37J00-B0iXZU304..6FC..20T..IV3..1NO200610-201106

58515CMAT, FRONT FLOOR, REAR NO.1

main58515-37080-B1iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

MD.CHARCOAL,TRIM1#

58540CMAT ASSY, FLOOR, REAR

main58540-37200-B0iXZU368,378,388,568..SCB200610-201106

DARK CHARCOAL,TRIM1#

main58540-37210-B0iXZU568;XZU368,378,388..SCB..(T3,T4)200610-201106

67913PLATE, FRONT DOOR SCUFF, RH

main67913-37010-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

MD.CHARCOAL,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-37010-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

MD.CHARCOAL,TRIM1#

main67914-37020-B0iBZU300,XZU304..DM6..IV3200610-201106

73915COVER, SEAT AIRBAG NO.1, RH

main73915-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

8271237070CLAMP, WIRING HARNESS

main82712-37070

9053004005P3

main90530-04005P3

9053006001

main90530-06001

91631B0618

main91631-B0618

9356055020

main93560-55020

11 parts on this diagram · 3 diagrams in section
