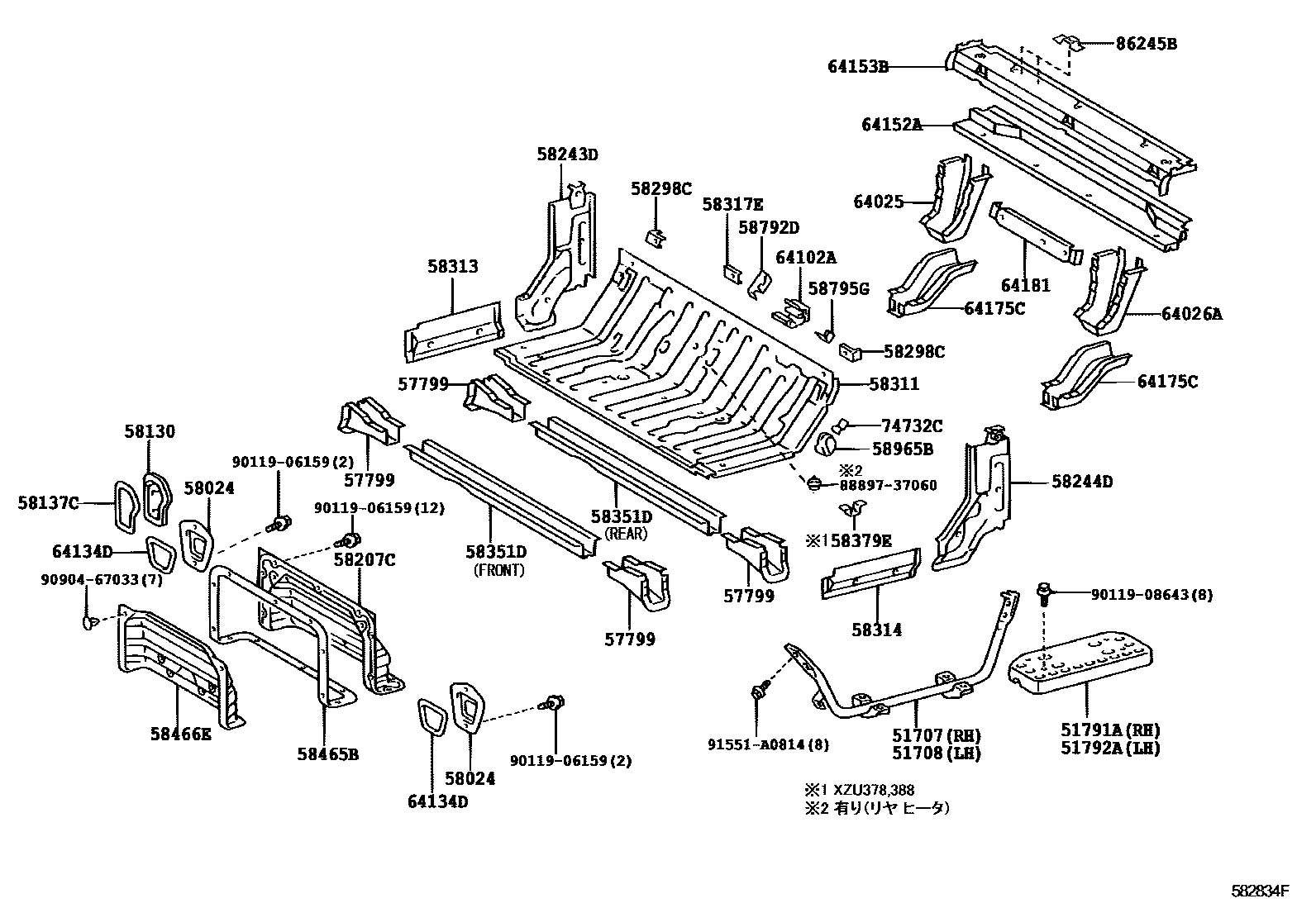

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

51707STEP SUB-ASSY, RH

main51770-37081iXZU304,334,378..IV4200610

main58307-37080iTRU300,XZU308,348,378,388..DCB..20T200610

sub58307-37081

51708STEP SUB-ASSY, LH

main51780-37070iXZU304,334,378..IV4200610

main58308-37030iTRU300,XZU308,348..DCB200610

main58308-37050iXZU378,388..T3..20T200610

51791APANEL, STEP, REAR RH

main51791-37030iTRU300,XZU308,348,378,388..DCB..20T200909

main51791-95A00iTRU300,XZU308,348,378,388..DCB..20T200610-200908

sub51791-37030

51792APANEL, STEP, REAR LH

main51791-37030iXZU308,348,378,388..DCB..(5F,6FC)..20T200909

main51791-95A00iXZU308,348,378,388..DCB..20T200610-200908

sub51791-37030

main51792-95400iTRU300,XZU308,348..DCB200610

57799GUSSET, REAR FLOOR CROSSMEMBER

main57799-37060iTRU300,XZU308,348,378,388..DCB..20T200610

main57799-37070iXZU508..VAN200610

58024COVER, HEADER PANEL

main58227-37060iTRU300,XZU30#,334,348,378,388,508..DCB,VAN200610

sub58227-37061

58130COVER ASSY, RESERVE TANK SERVICE HOLE

main58106-37010iTRU300,XZU30#,334,348,378,388,508..DCB,VAN200610

sub58106-37011

58137CSEAL, RESERVE TANK SERVICE HOLE COVER

main58137-37010iTRU300,XZU30#,334,348,378,388,508..DCB,VAN200610

58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE

main58207-37180iXZU348..DCB200610

sub58207-37181

main58207-37190iTRU300,XZU308,348,378,388,508..(DCB,VAN)..20T200610

sub58207-37191

main58260-37011iXZU304,334,378..IV4200610

58243DPANEL, FLOOR SIDE, REAR RH

main58025-37090iXZU508..VAN200610

main58025-37100iXZU508..VAN200610

main58043-37030iTRU300,XZU30#,334,348,378,388..DCB200610

sub58043-37031

58244DPANEL, FLOOR SIDE, REAR LH

main58026-37040iXZU508..VAN200610

main58044-37030iTRU300,XZU30#,334,348,378,388..DCB200610

sub58044-37031

main58044-37040iXZU304,334,378..IV4200610

sub58044-37041

58298CREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-95400iTRU300,XZU30#,334,348,378,388..DCB200610

58311PAN, REAR FLOOR

main58311-37270iXZU508..03S200610

main58311-37280iXZU508..03S200610

main58311-37290iXZU508..06S200610

main58311-37300iXZU508..06S200610

main58311-37400iTRU300,XZU308,348,378,388..DCB..20T200610-201101

main58311-37401iTRU300,XZU308,348,378,388..DCB..20T201101

main58311-37410iXZU308,348..DCB200610-201101

main58311-37410iTRU300,XZU378,388..DCB..20T200610-201101

main58311-37411iTRU300,XZU378,388..DCB..20T201101

main58311-37411iTRU300,XZU378,388..DCB..20T201101

58313PANEL, REAR FLOOR SIDE, RH

main58313-37050iTRU300,XZU30#,334,348,378,388..DCB200610

58314PANEL, REAR FLOOR SIDE, LH

main58314-37050iTRU300,XZU30#,334,348,378,388..DCB200610

58317ERETAINER, REAR SEAT, NO.2

main58317-37010iXZU304,334,378..IV4200610

58351DREINFORCEMENT, REAR FLOOR PANEL

main58351-37010iTRU300,XZU308,348,378,388..DCB..20T200610

main58351-37050iTRU300,XZU308,348,378,388..DCB..20T200610

58379EBRACKET, HEATER HOSE CLAMP

main58379-37020iXZU378,388..DCB200610

58465BPACKING, TRANSMISSION SERVICE HOLE COVER

main58465-25020iTRU300,XZU308,348,378,388,508..(DCB,VAN)..20T200610

main58465-37090iXZU304,334,378..IV4200610

58466ESILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

main58327-37101iXZU304,334,378..IV4200610

sub58327-37102

main58327-37130iTRU300,XZU308,348,378,388,508..(DCB,VAN)..20T200610

sub58327-37131

58792DSUPPORT, JACK

main58792-37010iTRU300,XZU30#,334,348,378,388..DCB200610

58795GPLATE, JACK CLAMP

main58795-95500iTRU300,XZU30#,334,348,378,388..DCB200610

58965BHOLDER, JACK

main58965-95400iTRU300,XZU30#,334,348,378,388,508..DCB,VAN200610

64025BRACKET SUB-ASSY, REAR MOUNTING, RH

main64025-37090iTRU300,XZU308,348,378,388..DCB..20T200610

main64025-37130iXZU304,334,378..IV4200610-201012

sub64025-37131

main64025-37131iXZU304,334,378..IV4201101

64026ABRACKET SUB-ASSY, REAR MOUNTING, LH

main64025-37130iXZU304,334,378..IV4200610-201012

sub64025-37131

main64025-37131iXZU304,334,378..IV4201101

main64026-37140iTRU300,XZU308,348,378,388..DCB..20T200610

64102ABRACKET SUB-ASSY, JACK HANDLE SUPPORT

main64102-95403iTRU300,XZU30#,334,348,378,388,508..DCB,VAN200610

64134DPACKING, HEADER PANEL COVER

main64134-37020iTRU300,XZU30#,334,348,378,388,508..DCB,VAN200610

64152AFRAME, BACK, LOWER

main64152-37020iTRU300,XZU308,348,378,388..DCB..20T200610-201101

sub64152-37021

main64152-37021iTRU300,XZU308,348,378,388..DCB..20T201101

main64152-37060iXZU304,334,378..IV4200610-201012

sub64152-37061

main64152-37061iXZU304,334,378..IV4201101

main64152-37070iXZU304,334,378..IV4200610-201012

sub64152-37071

main64152-37071iXZU304,334,378..IV4201101

64153BFRAME, BACK, REAR

main64153-37031iXZU304,334,378..IV4200610

main64153-37070iTRU300,XZU308,348,378,388..DCB..20T200610

64175CBRACE, REAR MOUNTING BRACKET

main64175-37030iTRU300,XZU308,348,378,388..DCB..20T200610

64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR

main64084-37020iTRU300,XZU308,348,378,388..DCB..20T200610

main64084-37030iXZU304,334,378..IV4200610

74732CBRACKET, TOOL BAG SET BAND

main74732-95600iTRU300,XZU30#,334,348,378,388..DCB200610

86245BBRACKET, VOLTAGE CONVERTER

main86245-37050iXZU304,334,378..IV4200610

sub86245-37260

main86245-37060iXZU304,334,378..IV4200610

sub86245-37270

main86245-37080iTRU300,XZU308,348,378,388..DCB..20T200610

8889737060VALVE, COOLER MAGNET

main88897-37060

9011906159

main90119-06159

9011908643

main90119-08643

9090467033

main90904-67033

91551A0814

main91551-A0814

38 parts on this diagram · 4 diagrams in section
