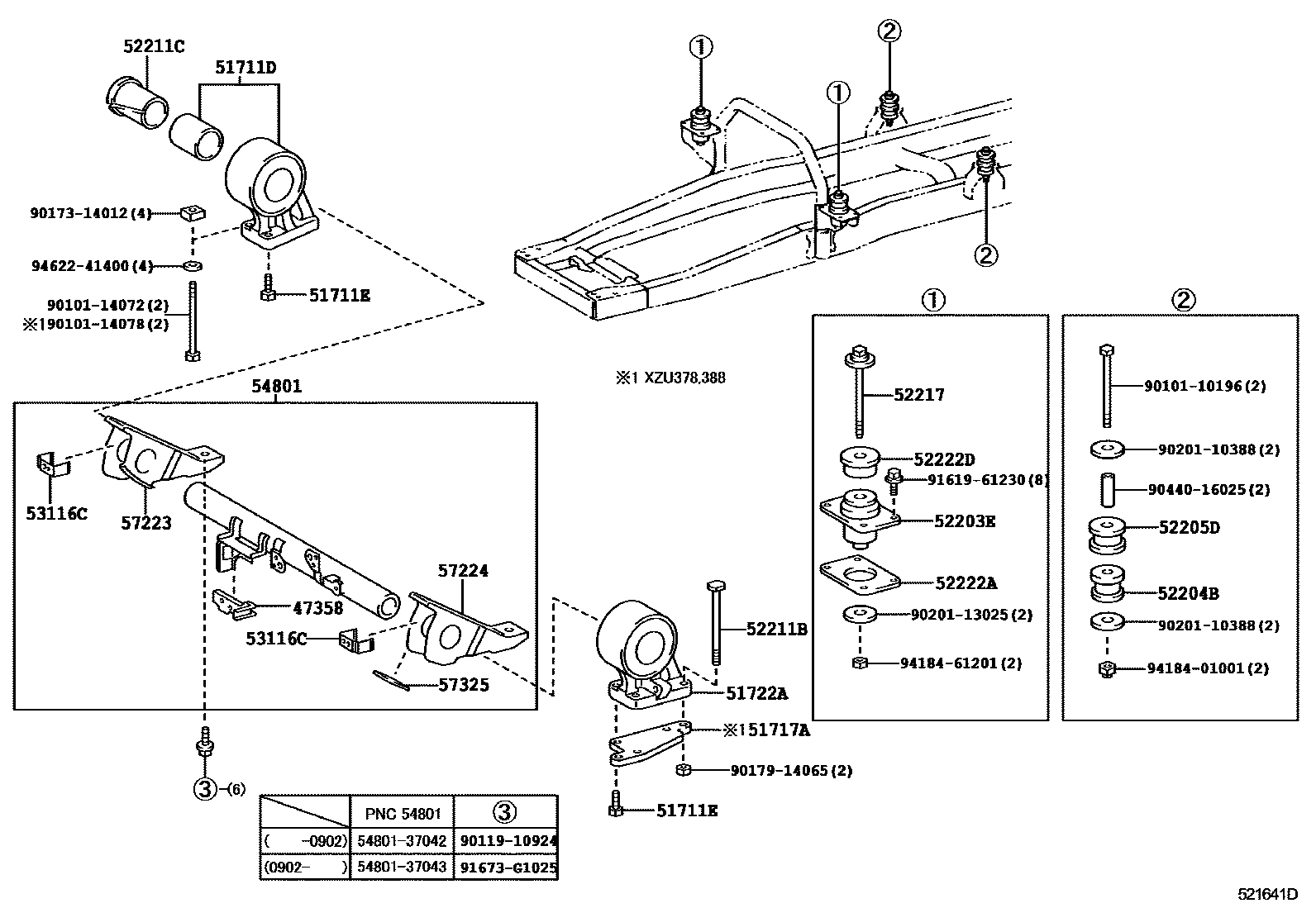

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1 0004 1������� 0005 1����� ������ ������� 0006 1����� ������ �������

47358TUBE, BOOSTER TO RESERVOIR, NO.2

main47358-37010iTRU300,XZU30#,334,348,378,388,508..DCB,VAN200610

51711DBRACKET, CAB FRONT MOUNTING

main51701-37100iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568200610

sub51701-37360

main51701-37110iXZU378,388..DCB200610

51711EBOLT, HEXAGON(FOR CAB MOUNTING BARACKET)

main90101-14041iXZU378,388..DCB200610

main90101-14073iXZU314,324,354,524,554..4NO200610

main90101-14075iXZU354,378,388..SCB..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568200610

51717APLATE, BODY SUPPORT BRACKET

main51717-37120iXZU378,388..DCB200610

51722ABRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main51702-37100iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568200610

main51702-37110iXZU378,388..DCB200610

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610

main52203-37050iTRU300,XZU30#,334,348,378,388,508..DCB,VAN200610

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-36011iTRU300,XZU308,348,378,388..DCB..20T200610

main52204-37010iXZU508..VAN200610

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52203-36040iTRU300,XZU308,348,378,388..DCB..20T200610

main52203-37040iXZU508..VAN200610

main52203-37050iXZU304,334,378..IV4200610

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90109-14011iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568200610

main90109-14012iXZU378,388..DCB200610

52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)

main52211-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

52217BOLT, BODY MOUNTING

main52217-37030iTRU300,XZU308,348,378,388,508..(DCB,VAN)..20T200610

52222ASPACER, CAB REAR MOUNTING, UPPER

main52222-37020iXZU304,334,378..IV4200610

main52222-37030iXZU304,334,378..IV4200610

52222DSPACER, CAB REAR MOUNTING, UPPER

main52222-36030iTRU300,XZU308,348,378,388,508..(DCB,VAN)..20T200610

53116CBRACKET, RADIATOR GRILLE, NO.2

main53116-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

54801TUBE SUB-ASSY, TILT CAB, NO.1

main54801-37042iTRU300,XZU30#,334,348,378,388,508..DCB,VAN200610-200902

sub54801-37043

sub91673-G1025

main54801-37043iTRU300,XZU30#,334,348,378,388,508..DCB,VAN200902

main54801-37110iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610-200902

sub54801-37111

sub91673-G1025

main54801-37111iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200902

57223BRACKET, FRONT MOUNTING, RH

main57223-37011iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

57224BRACKET, FRONT MOUNTING, LH

main57224-37011iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

57325REINFORCEMENT, FRONT MOUNTING

main57325-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

9010110196

main90101-10196

9010114072

main90101-14072

9010114078

main90101-14078

9011910924

main90119-10924

9017314012

main90173-14012

9017914065

main90179-14065

9020110388

main90201-10388

9020113025

main90201-13025

9044016025

main90440-16025

9161961230

main91619-61230

91673G1025

main91673-G1025

9418401001

main94184-01001

9418461201

main94184-61201

9462241400

main94622-41400

32 parts on this diagram · 6 diagrams in section
