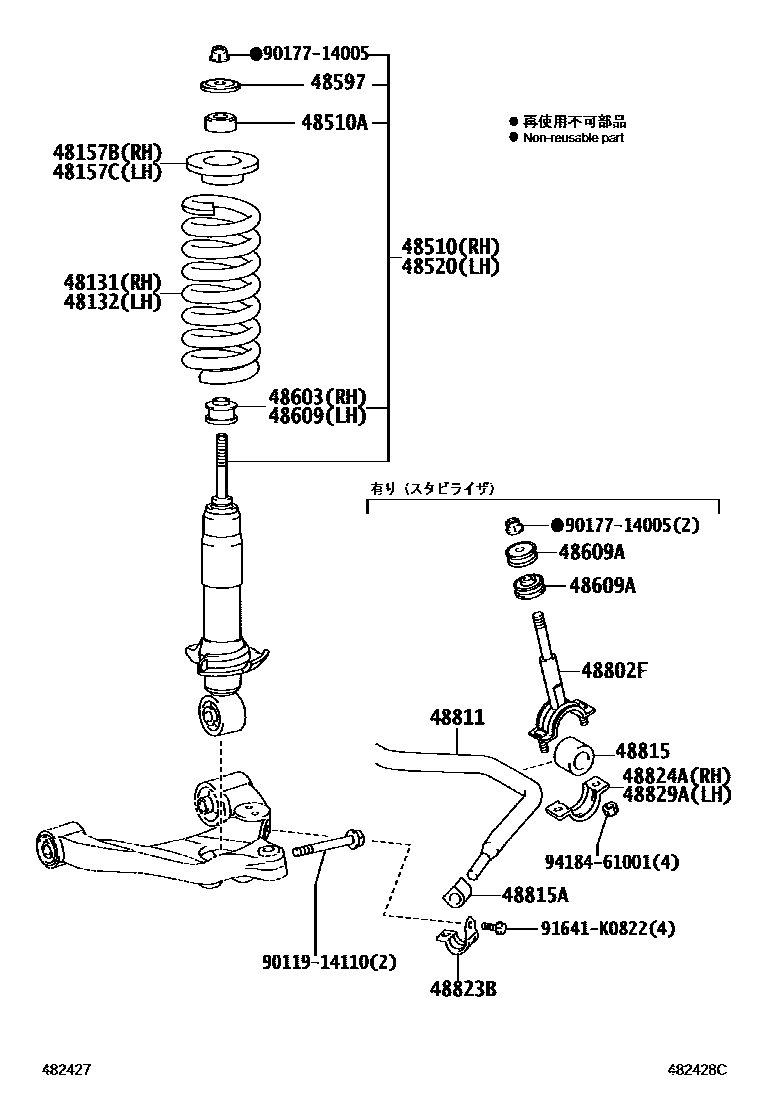

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1��(��������) 0005 1 0006 12-LEAF 0007 12-LEAF 0008 13-LEAF 0010 13-LEAF 0011 13-LEAF 0012 13-LEAF 0013 13-LEAF 0014 13-LEAF 0015 13-LEAF 0016 13-LEAF 0018 13-LEAF 0019 13-LEAF 0020 14-LEAF 0021 1

48131SPRING, FRONT COIL, RH

main48131-37020iXZU338,538;XZU308,508..SCB..(IV3,IV6);XZU308,508..(03S,T2,T5)..CBU200610

main48131-37040iXZU338,348,538,548..(T2,T4)..(5F,6FC);XZU308,508..(SCB,VAN)..(03S,T4)..(CBU,IV3)200610

main48131-37060iXZU348..DCRUE200610

main48131-37080iXZU308,508..(DCB,VAN)..(06S,T4)200610

48132SPRING, FRONT COIL, LH

main48131-37010iXZU338,538..5F,6FC;XZU308,508..SCB..(5F,6FC)..(IV3,IV6);XZU308,508..(03S,T2,T5)..(5F,6FC)..CBU200610

main48131-37030iXZU338,348,538,548..(T2,T4)..(5F,6FC);XZU308,508..(SCB,VAN)..(03S,T4)..(CBU,IV3)200610

main48131-37050iXZU348..DCRUE200610

main48131-37070iXZU308,508..(DCB,VAN)..(06S,T4)200610

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48159-37010iXZU308,338,348,508,538,548200610

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48159-37010iXZU308,338,348,508,538,548200610

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80349iXZU368,378,388,568200610

sub48510-80768

main48510-80358iXZU308,338,348,508,538,548200610

sub48510-80839

main48511-80118iXZU504..ST200610

main48511-80120iBZU300,340,XZU304,324,344,354,504,524,554..(DM3,DM5,DM7,T3,T4,T5)..(20T,40T)..WT200610

main48511-80121iBZU300..DM6;XZU304..30T..4NO;TRU300,340,500,XZU304..1NO;BZU300,340,XZU314,324,334,344..30T,35T,40T200610

48510ACUSHION, FRONT SHOCK ABSORBER

main48507-37010iXZU308,338,348,508,538,548200610

main90948-01059iXZU368,378,388,568200610

main90948-01071iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-80349iXZU368,378,388,568200610

sub48510-80768

main48510-80358iXZU308,338,348,508,538,548200610

sub48510-80839

main48511-80118iXZU504..ST200610

main48511-80120iBZU300,340,XZU304,324,344,354,504,524,554..(DM3,DM5,DM7,T3,T4,T5)..(20T,40T)..WT200610

main48511-80121iBZU300..DM6;XZU304..30T..4NO;TRU300,340,500,XZU304..1NO;BZU300,340,XZU314,324,334,344..30T,35T,40T200610

48597RETAINER, SHOCK ABSORBER CUSHION

main48597-37010iXZU308,338,348,508,538,548200610

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-37020iXZU308,338,348,508,538,548200610

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-37020iXZU308,338,348,508,538,548200610

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-37020iXZU308,338,348,508,538,548200610

48802FLINK SUB-ASSY, FRONT STABILIZER

main48802-37030iBZU300..DM6;XZU304..SCB..1NO;BZU300,340,TRU300,XZU334,344,354..SCB..(30T,35T,40T)200610

main48802-37070iXZU304,314,324..4NO;BZU300,340,TRU300,340,500,XZU344,354,504,524,554..(DM5,DM7,T2,T3,T4,T5)..20T200610

main48802-37080iXZU308,338,348,508,538,548200610

sub48802-37081

48811BAR, STABILIZER, FRONT

main48804-37030iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..CBU,IV3,IV6,IV7200610

main48811-37090iXZU308,338,348,508,538,548200610

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-37070iXZU308,338,348,508,538,548200610

main48815-37080iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..CBU,IV3,IV6,IV7200610

48815ABUSH, FRONT STABILIZER BAR, NO.2

main48815-25060iXZU308,338,348,508,538,548200610

48823BCOVER, FRONT STABILIZER BRACKET

main48823-25020iXZU308,338,348,508,538,548200610

48824BRACKET, STABILIZER, FRONT

main48824-37161iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..CBU,IV3,IV6,IV7200610

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-37060iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..CBU,IV3,IV6,IV7200610

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-37060iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..CBU,IV3,IV6,IV7200610

9011914110

main90119-14110

9017714005

main90177-14005

91641K0822

main91641-K0822

9418461001

main94184-61001

23 parts on this diagram · 19 diagrams in section
