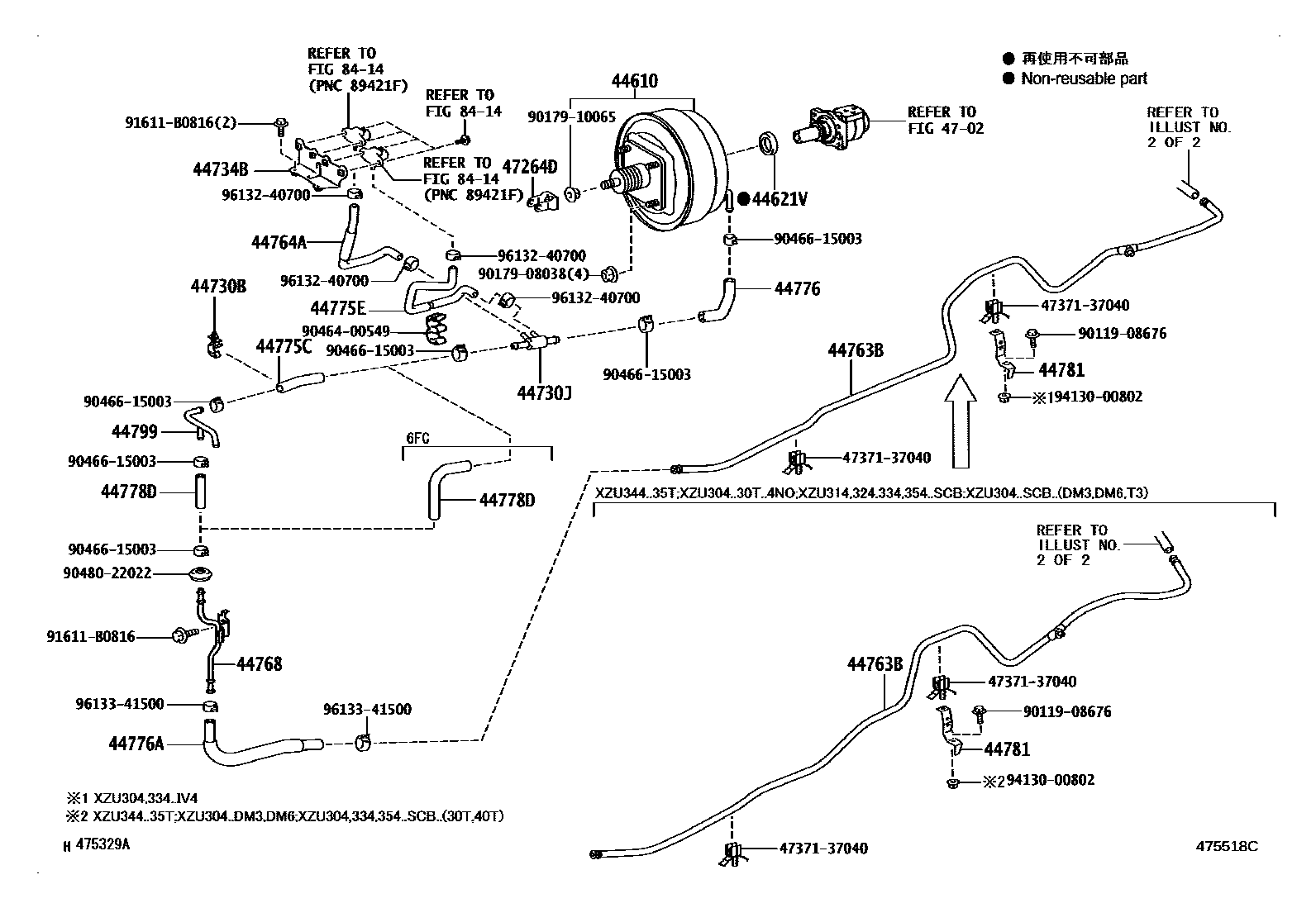

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1���� ������� OR ������ OR ���0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1

44610BOOSTER ASSY, BRAKE

main44610-37151iBZU300,340,TRU300,XZU304,314,324,334,344,368,378,388..30T200610

main44610-37161iXZU334,344,354..35T,40T200610

main44610-37171iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,324,338,34#,354,368,378,388,568..20T200610

main44610-37260iXZU50#,524,538,548,554..WT200610-201010

main44610-37320iXZU50#,524,538,548,554..WT201011

44621VSEAL, BOOSTER BODY

main44621-36070iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610

44730BCLAMP, VACUUM HOSE

main44597-37021iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

44730JWAY(FOR BOOSTER VACUUM)

main90414-10043iXZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568200610

44734BBRACKET, BOOSTER SUPPORT

main44734-37011iXZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568200610-201106

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44764-37630iBZU300,340,TRU300,340,500200705

main44764-37650iXZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3)200610-200611

sub44764-37651

main44764-37651iXZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3)200612

main44764-37660iXZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T200610-200611

sub44764-37661

main44764-37661iXZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T200612

main44764-37760iXZU304,334..IV4200610-200611

sub44764-37761

main44764-37761iXZU304,334..IV4200612

main44764-37770iXZU314,324,354,524,554..4NO200610-200611

sub44764-37771

main44764-37771iXZU314,324,354,524,554..4NO200612

main44764-37781iXZU368,378,388,568..CBU,IV3200610

main44764-37791iXZU378..IV4200610

44764TUBE, BOOSTER VACUUM

main44764-37730iBZU300,340,TRU300,340,500..SCB..(DM6,T2,T3,T4)200705

main44764-37740iBZU300,340;TRU300..DM5200705

main44764-37750iTRU300..T4..20T200705

44764AHOSE, BOOSTER VACUUM

main44776-37240iXZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568200610

44768TUBE, BOOSTER VACUUM

main44768-37110iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

44775CHOSE, CONNECTOR TO WAY

main44775-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

44775EHOSE, WAY TO CONNECTOR

main44776-37250iXZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568200610-200904

sub44776-37251

main44776-37251iXZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568200905

44776HOSE, BRAKE BOOSTER

main44776-37260iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610

main44776-37280iXZU50#,524,538,548,554..5F..WT200610

main44776-37290iXZU50#,538,548,554..6FC200610-200904

sub44776-37291

main44776-37291iXZU50#,538,548,554..6FC200905

main44776-37300iXZU50#,524,538,548,554..5F..WT200610

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-37170iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-37060iBZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200610-201106

main44778-37240iXZU304,334,378..IV4200610-201106

44778DHOSE, VACUUM TUBE TO CONNECTOR TUBE

main44778-37170iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..5F200610-200904

sub44778-37171

main44778-37171iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200905

main44778-37210iXZU30#,33#,34#,354..6FC200610-200904

sub44778-37211

main44778-37211iXZU30#,33#,34#,354..6FC200905

44781BRACKET, HOSE

main44781-37150iBZU300,340,TRU300,340,500,XZU368,378,388,568200610

main44781-37170iXZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-200611

sub44781-37171

main44781-37171iXZU30#,314,324,33#,34#,354,50#,524,538,548,554200612

44799WAY, BRAKE VACUUM HOSE

main44799-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42010iXZU50#,524,538,548,554..WT200610

main47264-50010iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610

8414

4737137040BRACKET, CONNECTOR

main47371-37040

9011908676

main90119-08676

9017908038

main90179-08038

9017910065

main90179-10065

9046400549

main90464-00549

9046615003

main90466-15003

9048022022

main90480-22022

91611B0816

main91611-B0816

9413000802

main94130-00802

9613240700

main96132-40700

9613341500

main96133-41500

31 parts on this diagram · 19 diagrams in section
