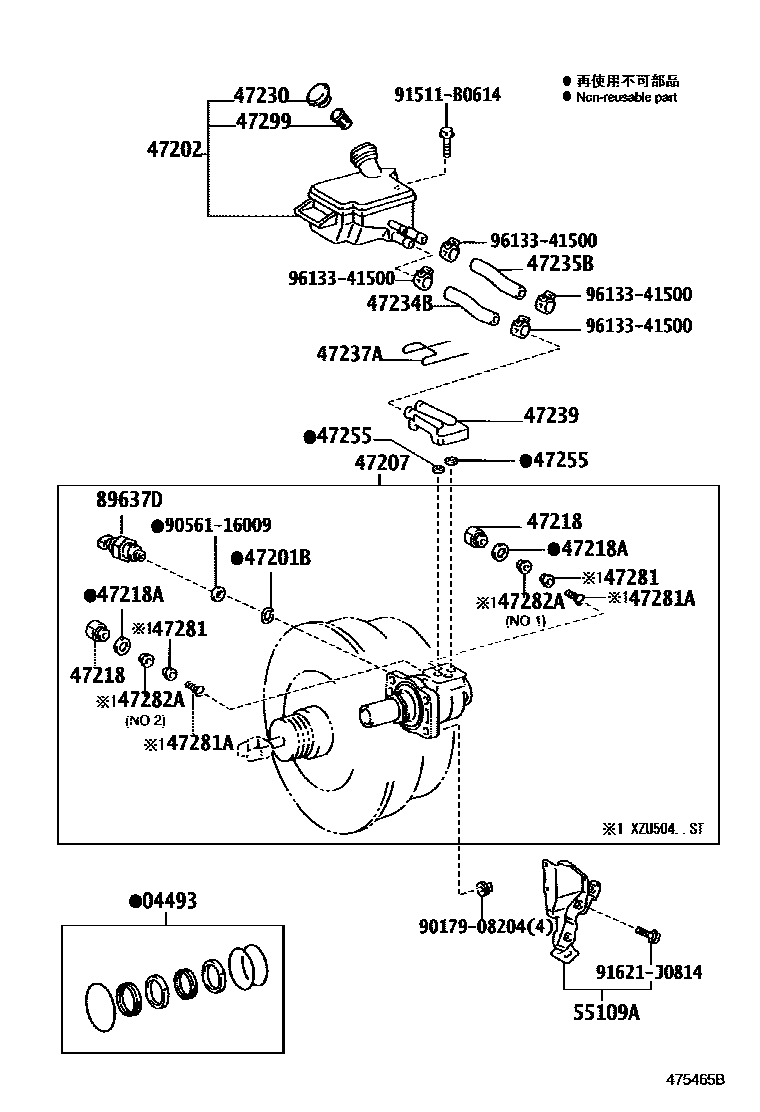

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-36230iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iXZU50#,524,538,548,554..WT201011

main90029-20059iXZU50#,524,538,548,554..WT200610-201011

main90301-15014iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-37051iXZU504..ST200610

main47220-37110iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..5F200610-200910

sub47220-37111

main47220-37111iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..MTM200909

main47220-37130iXZU50#,538,548,554..6FC200610-200910

sub47220-37131

main47220-37131iXZU30#,33#,34#,354..6FC200909

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-37052iXZU334,344,354..35T,40T200610

main47207-37060iXZU504..ST200610

main47207-37091iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

main47207-37110iXZU50#,524,538,548,554..WT200610-201011

main47207-37180iXZU50#,524,538,548,554..WT201011

sub47207-37181

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36091iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-16013iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

47234BTUBE, RESERVOIR, NO.1

main47234-37130iXZU50#,524,538,548,554..WT200610-201011

main47234-37140iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610-201106

main47234-37220iXZU50#,524,538,548,554..WT201011-201106

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37120iXZU50#,524,538,548,554..WT200610-201011

main47235-37130iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610-201106

main47235-37210iXZU50#,524,538,548,554..WT201011-201106

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-36020iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610

47239CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR

main47239-37010iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610

main90029-48001iXZU50#,524,538,548,554..WT200610

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-36010iXZU504..ST200610

47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)

main90905-01054iXZU504..ST200610

47282ASEAT, OUTLET CHECK VALVE, NO.1

main47282-36010iXZU504..ST200610

main47282-36020iXZU504..ST200610

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

55109ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55109-37010iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610-200712

sub55109-37011

main55109-37011iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200801-201106

main55109-37030iXZU50#,524,538,548,554..WT200610-200712

main55109-37031iXZU50#,524,538,548,554..WT200801-201011

main55109-37060iXZU50#,524,538,548,554..WT201011-201106

89637DSENSOR, OIL PRESSURE

main89637-51010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

9017908204

main90179-08204

9056116009

main90561-16009

91511B0614

main91511-B0614

91621J0814

main91621-J0814

9613341500

main96133-41500

23 parts on this diagram · 2 diagrams in section
