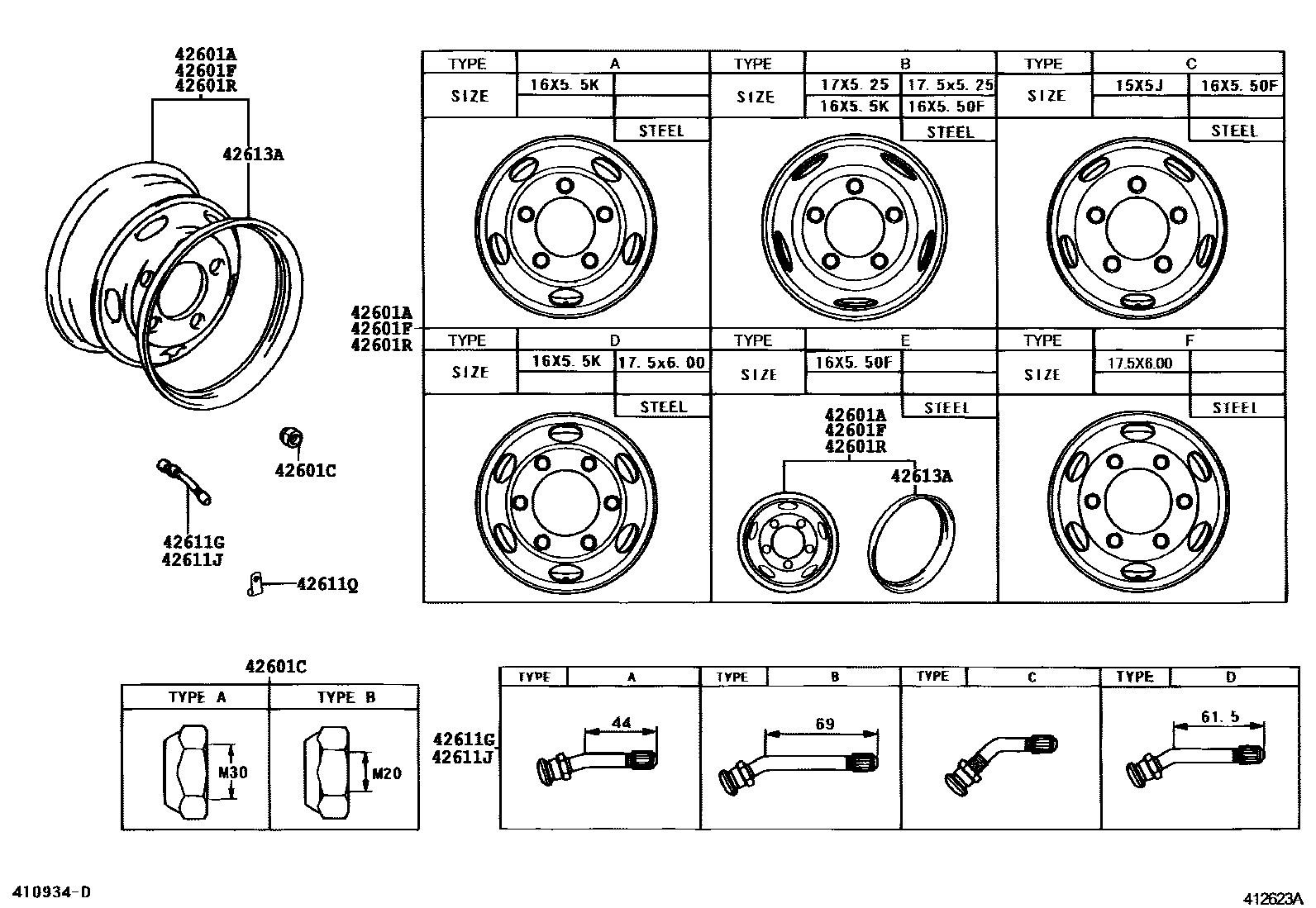

DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
main42601-37240iXZU324..20T..DCRTJ;XZU508..T5..DCRTH..CBU;XZU508..T5..DCRUD..IV3;XZU30#,378,388,508,524..(DM3,DM7,T3,T5)..(5F,6FC)..20T..(DCRTJ,DCRTK,DCRUE)¥12,100200610
main42601-37240iXZU324..20T..DCRTJ;XZU508..T5..DCRTH..CBU;XZU508..T5..DCRUD..IV3;XZU30#,378,388,508,524..(DM3,DM7,T3,T5)..(5F,6FC)..20T..(DCRTJ,DCRTK,DCRUE)¥12,100200610
main42601-37240iXZU308,338,348,508..T2;XZU344..T3..20T..DCRUE;XZU304..T4..30T..DCRUE..IV3;XZU30#,314,324,334,348..(DM3,DM5,DM7,T3,T5)..DCRUE..(CBU,IV3)¥12,100200610
main42601-37250iTRU340,XZU538;XZU50#..T4..IV3;XZU548..6FC..CBU;XZU548..T4..DCRUE;XZU368,568..20T..CBU¥12,100200610
main42601-37250iXZU508..03S;XZU304..DCRUE..IV6;XZU344..T3..30T..DCRUE;XZU338,34#..T4..20T..DCRUE;XZU308..SCB..5F..DCRUE..(IV3,IV6);XZU304..(DM6,T4)..20T..DCRUE..IV3¥12,100200610
main42601-37250iXZU508..03S;XZU304..DCRUE..IV6;XZU344..T3..30T..DCRUE;XZU338,34#..T4..20T..DCRUE;XZU308..SCB..5F..DCRUE..(IV3,IV6);XZU304..(DM6,T4)..20T..DCRUE..IV3¥12,100200610
main42601-37250iXZU508..03S;XZU304..DCRUE..IV6;XZU344..T3..30T..DCRUE;XZU338,34#..T4..20T..DCRUE;XZU308..SCB..5F..DCRUE..(IV3,IV6);XZU304..(DM6,T4)..20T..DCRUE..IV3¥12,100200610
main42601-37260iXZU338,348..DCRUE;XZU344..T4..DCRTJ..CBU;XZU334,354,388,554..DM5,T4;XZU538..(DCRUD,DCRUE)..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU344,548..T4..(DCRTK,DCRUE);BZU300,TRU3¥12,800200610
main42601-37300iXZU338,348..T2;XZU308,508..T2,T4;XZU338,348,538..5F..(DCRTH,DCRUD)..IV3;BZU300,TRU300,340,500,XZU304,354,504,554..(DM5,T4)..20T¥10,500200610
main42601-37370iXZU504..WT..IV3;BZU300,XZU304..T4..5F..20T..IV3;XZU508..T4..5F..(DCRTH,DCRUD)..IV3¥11,400200610
main42601-37400iXZU348..DCRTH..IV3;BZU340,XZU344,368,388..T4..20T..(DCRTJ,DCRUE,LPG)..IV3¥13,900200610
main42610-37091iXZU334..T3..30T;BZU300..30T..IV3;XZU304..T5..30T..IV3;XZU304..30T..DCRUE..1NO;XZU344..T3..MTM..(20T,30T);XZU304..T4..30T..DCRTJ..IV3;BZU340,XZU304..(DM6,T3)..(5F,6F¥13,100200610
42601CNUT, HUB (FOR AXLE)
main43522-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T¥1,050200610-201106
42601FWHEEL, DISC (FOR FRONT)
main42601-37240iXZU324..20T..DCRTJ;XZU508..T5..(DCRTH,DCRUD)..CBU;XZU30#,378,388,508,524..(DM3,DM7,T3,T5)..(5F,6FC)..20T..(DCRTJ,DCRTK,DCRUE)¥12,100200610
main42601-37240iXZU324..20T..DCRTJ;XZU508..T5..(DCRTH,DCRUD)..CBU;XZU30#,378,388,508,524..(DM3,DM7,T3,T5)..(5F,6FC)..20T..(DCRTJ,DCRTK,DCRUE)¥12,100200610
main42601-37240iXZU324..20T..DCRTJ;XZU508..T5..(DCRTH,DCRUD)..CBU;XZU30#,378,388,508,524..(DM3,DM7,T3,T5)..(5F,6FC)..20T..(DCRTJ,DCRTK,DCRUE)¥12,100200610
main42601-37250iTRU340,XZU538;XZU50#..T4..IV3;XZU548..6FC..CBU;XZU548..T4..DCRUE;XZU368,568..20T..CBU¥12,100200610
main42601-37250iTRU340,XZU538;XZU50#..T4..IV3;XZU548..6FC..CBU;XZU548..T4..DCRUE;XZU368,568..20T..CBU¥12,100200610
main42601-37250iXZU508..03S;XZU304..DCRUE..IV6;XZU338,34#..T4..20T..DCRUE;XZU344..T3..30T..DCRUE..CBU;XZU308..SCB..5F..DCRUE..(IV3,IV6);XZU304..(DM6,T4)..20T..DCRUE..IV3¥12,100200610
main42601-37250iXZU508..03S;XZU304..DCRUE..IV6;XZU338,34#..T4..20T..DCRUE;XZU344..T3..30T..DCRUE..CBU;XZU308..SCB..5F..DCRUE..(IV3,IV6);XZU304..(DM6,T4)..20T..DCRUE..IV3¥12,100200610
main42601-37260iXZU338,348..DCRUE;XZU344..T4..DCRTJ..CBU;XZU334,354,388,554..DM5,T4;XZU538..(DCRUD,DCRUE)..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU344,548..T4..(DCRTK,DCRUE);BZU300,TRU3¥12,800200610
main42601-37300iXZU308,508..03S,06S,T4;XZU338,348,538..5F..(DCRTH,DCRUD)..IV3;BZU300,TRU300,340,500,XZU304,354,504,554..(DM5,T2,T4)..20T¥10,500200610
main42601-37370iXZU504..WT..IV3;BZU300,XZU304..T4..5F..20T..IV3;XZU508..T4..5F..(DCRTH,DCRUD)..IV3¥11,400200610
main42601-37400iXZU348..DCRTH..IV3;BZU340,XZU344,368,388..T4..20T..(DCRTJ,DCRUE,LPG)..IV3¥13,900200610
main42610-37091iXZU334..T3..30T;BZU300..30T..IV3;XZU304..T5..30T..IV3;XZU304..30T..DCRUE..1NO;XZU344..T3..MTM..(20T,30T);XZU304..T4..30T..DCRTJ..IV3;BZU340,XZU304..(DM6,T3)..(5F,6F¥13,100200610
42601RWHEEL, DISC (FOR REAR)
main42601-37240iBZU300..T3..CBU;BZU300..30T..IV3;XZU304..T5..5F..30T;XZU304..20T..DCRTJ..IV6;XZU304..T4..30T..DCRTJ..IV3;XZU508..T5..(DCRTH,DCRUD)..IV3;XZU304..(5F,6FC)..(CBU,IV3,I¥12,100200610
main42601-37240iXZU344..T3..20T..DCRUE;XZU304..T4..30T..DCRUE..IV3;XZU30#,314,324,334,348..(DM3,DM5,DM7,T3,T5)..DCRUE..(CBU,IV3)¥12,100200912
main42601-37240iBZU300..T3..CBU;BZU300..30T..IV3;XZU304..T5..5F..30T;XZU304..20T..DCRTJ..IV6;XZU304..T4..30T..DCRTJ..IV3;XZU508..T5..(DCRTH,DCRUD)..IV3;XZU304..(5F,6FC)..(CBU,IV3,I¥12,100200610
main42601-37250iXZU368..30T;XZU548..T4..5F..DCRTJ..CBU;BZU340,XZU338,34#,378,388..T4..(5F,6FC)..20T;XZU368,548,568..(DM5,T4)..20T..(DCRTJ,DCRTK)..IV3¥12,100200610
main42601-37250iXZU368..30T;XZU548..T4..5F..DCRTJ..CBU;BZU340,XZU338,34#,378,388..T4..(5F,6FC)..20T;XZU368,548,568..(DM5,T4)..20T..(DCRTJ,DCRTK)..IV3¥12,100200610
main42601-37250iXZU368..30T;XZU548..T4..5F..DCRTJ..CBU;BZU340,XZU338,34#,378,388..T4..(5F,6FC)..20T;XZU368,548,568..(DM5,T4)..20T..(DCRTJ,DCRTK)..IV3¥12,100200610
main42601-37250iXZU304..DCRUE..IV6;XZU338,34#..T4..20T..DCRUE;XZU344..T3..30T..DCRUE..CBU;XZU308..SCB..5F..DCRUE..(IV3,IV6);XZU304..(DM6,T4)..20T..DCRUE..IV3¥12,100200912
main42601-37260iXZU338,348..DCRUE;XZU344..T4..DCRTJ..CBU;XZU334,354,388,554..DM5,T4;XZU538..(DCRUD,DCRUE)..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU344,548..T4..(DCRTK,DCRUE);BZU300,TRU3¥12,800200610
main42601-37300iXZU338,348..T2;XZU338,348,538..5F..(DCRTH,DCRUD)..IV3;BZU300,TRU300,340,500,XZU30#,354,50#,554..(03S,06S,DM5,T2,T4)..20T¥10,500200610
main42601-37370iXZU504..WT..IV3;BZU300,XZU304..T4..5F..20T..IV3;XZU508..T4..5F..(DCRTH,DCRUD)..IV3¥11,400200610
main42610-37091iXZU334..T3..30T;BZU300..30T..IV3;XZU304..T5..30T..IV3;XZU304..30T..DCRUE..1NO;XZU344..T3..MTM..(20T,30T);XZU304..T4..30T..DCRTJ..IV3;BZU340,XZU304..(DM6,T3)..(5F,6F¥13,100200610
42611GVALVE (FOR TUBELESS TIRE)
main90942-05034iXZU348..DCRUE..CBU;BZU300,XZU304..T4..30T;XZU348..(DCRTH,DCRUE)..IV3;XZU538..(DCRUD,DCRUE)..IV3;XZU368..T4..20T..DCRTJ..IV3;XZU334,344,354,388,554..DM5,T4;TRU300,XZ¥760200610
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611QCLIP (FOR TUBE)
main90468-10014iXZU334..T3..30T;BZU300..30T..IV3;XZU304..T5..30T..IV3;XZU304..30T..DCRUE..1NO;XZU344..T3..MTM..(20T,30T);XZU304..T4..30T..DCRTJ..IV3;BZU340,XZU304..(DM6,T3)..(5F,6F¥120200610
42613ARING, DISC WHEEL SIDE
main42613-37030iXZU334..T3..30T;BZU300..30T..IV3;XZU304..T5..30T..IV3;XZU304..30T..DCRUE..1NO;XZU344..T3..MTM..(20T,30T);XZU304..T4..30T..DCRTJ..IV3;BZU340,XZU304..(DM6,T3)..(5F,6F¥1,660200610
8 parts on this diagram · 5 diagrams in section
