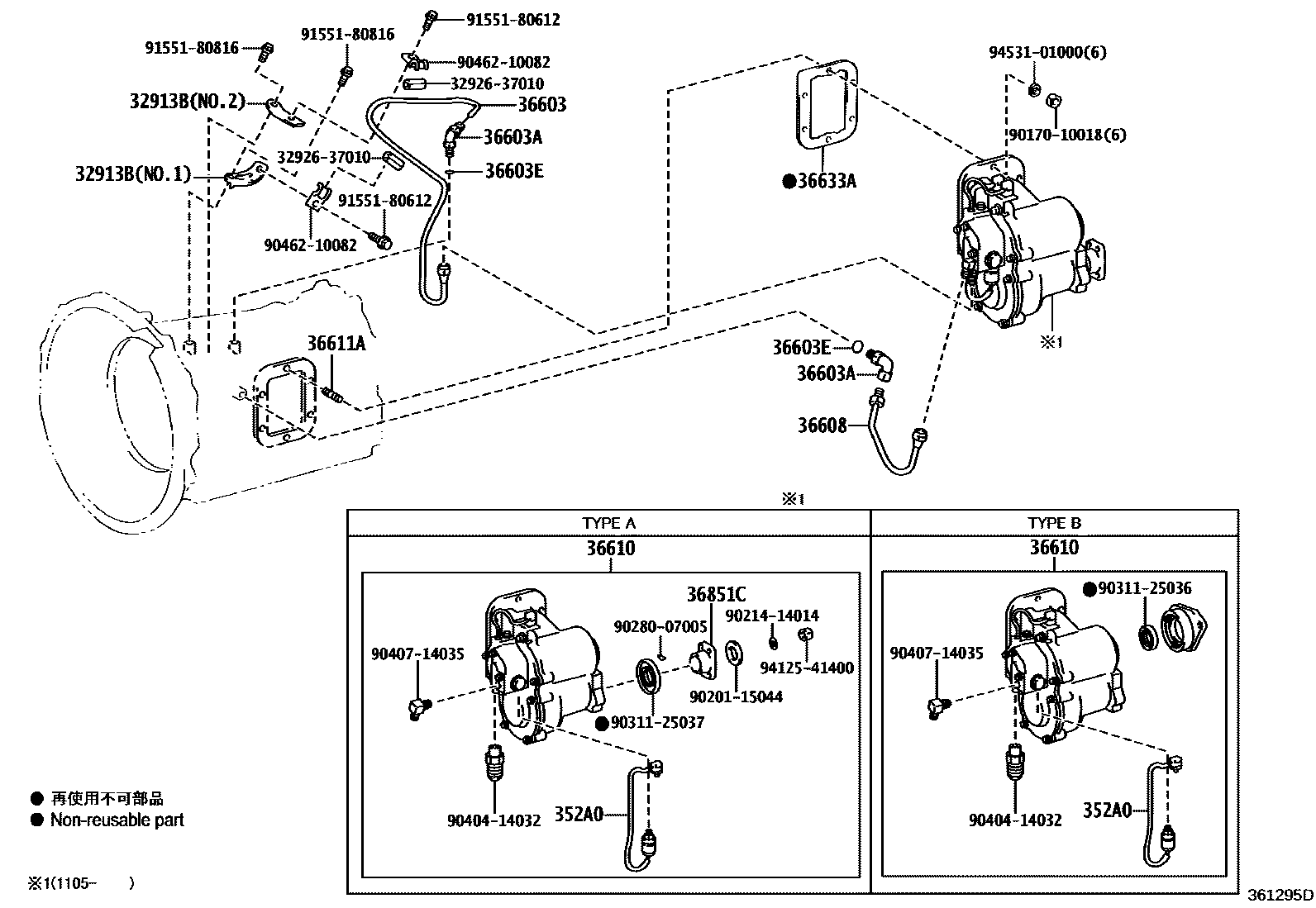

POWER TAKE-OFF CASE & GEAR

0001 1 0002 1������������� 10KG 0004 1�������� 25KG 0005 1����������� 25KG 0007 1�������� (��������) 21.5KG 0009 1��������������� 10KG 0010 1������ 20KG 0011 1����������� 20KG 0015 1�������� 25KG 0016 1�������� 25KG 0017 1�������� 21.5KG,25KG 0018 1�������� (��������) 0019 1�������� 15KG 0020 1�������� 25KG 0021 1 0022 1

32913BBRACKET, TRANSMISSION OIL COOLER, NO.2

main32913-37070iXZU30#,33#,34#,354,508,538,548,554..(DCB,SCB)..6FC..DCRTJ200610-201106

main32913-37080iXZU30#,33#,34#,354,508,538,548,554..(DCB,SCB)..6FC..DCRTJ200610-201106

352A0SWITCH ASSY, TRANSMISSION OIL PRESSURE

main352A0-37010iXZU354,554..6FC201105-201106

36603TUBE SUB-ASSY, POWER TAKE-OFF LUBRICATION

main36603-37020iXZU30#,33#,34#,354,508,538,548,554..(DCB,SCB)..6FC..DCRTJ200610-201106

36603AELBOW (FOR POWER TAKE-OFF LUBRICATION TUBE)

main90407-14003iXZU30#,33#,34#,354,508,538,548,554..(DCB,SCB)..6FC..DCRTJ200610-201106

36603ERING, O (FOR POWER TAKE-OFF LUBRICATION TUBE)

main90301-10189iXZU30#,33#,34#,354,508,538,548,554..(DCB,SCB)..6FC..DCRTJ200610-201106

36608TUBE SUB-ASSY, POWER TAKE OFF LINE PRESSURE

main36608-37030iXZU30#,33#,34#,354,508,538,548,554..(DCB,SCB)..6FC..DCRTJ200610-201106

36610POWER TAKE-OFF ASSY

main36610-37151iTRU300..DM5200705-201106

main36610-37191iBZU300,340200705-201106

main36610-37241iXZU314,324,354,368,524,554,568..(DM5,DM7)..5F200610-201106

main36610-37251iXZU368,378,388,568..(T3,T4)..(CBU,IV3)200610-201106

sub36610-37252

main36610-37261iXZU368..T4..DCRTK..IV3200610-201106

sub36610-37262

main36610-37261iXZU378..DCRTK..IV3200908-201106

sub36610-37262

main36610-37280iXZU30#..5F..DCRUE..(CBU,IV3)200912-201007

sub36610-37281

main36610-37280iXZU334,344,504,548..SCB..5F;XZU508,538..SCB..5F..(DCRTJ,DCRUE);XZU30#,338,348..(DM6,T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3)200610-201007

sub36610-37281

main36610-37281iXZU304,334,344,504,548..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)201008-201106

sub36610-37282

main36610-37290iXZU30#,33#,34#..(DM6,T3,T4,T5)..6F..(CBU,IV3)201003-201106

sub36610-37291

main36610-37320iXZU354..1NO200610-201106

sub36610-37321

main36610-37330iXZU304..T4..5F..30T..IV3200801-201007

sub36610-37331

main36610-37330iXZU344..35T..IV3;XZU30#..(T3,T4)..5F..DCRTJ..IV6;XZU304,334,354..5F..(20T,40T)..(DCRTJ,DCRTK)..1NO200610-201007

sub36610-37331

main36610-37331iXZU308,354..IV6;XZU304..5F..DCRTJ..1NO;XZU334,344..(35T,40T)..IV3201008-201106

sub36610-37332

main36610-37341iXZU308..T5..5F..DCRTJ..IV3200908-201003

sub36610-37342

main36610-37341iXZU334..T3..5F..30T..IV3200610-201106

sub36610-37342

main36610-37350iXZU304..DCRUE..IV6;XZU304..T5..30T..DCRUE;XZU304..(DM6,T4)..6F..IV3201003-201106

sub36610-37351

main36610-37380iXZU30#,33#,34#,508,538,548..(DCB,SCB)..6FC..DCRTJ200610-201105

sub36610-37450

main36610-37390iXZU354,554..6FC200610-201105

sub36610-37460

main36610-37400iXZU304,314,324..(DM3,DM5,DM7)..6F201003-201106

main36610-37450iXZU30#,33#,34#,508,538,548..(DCB,SCB)..6FC..DCRTJ201105-201106

sub36610-37451

main36610-37460iXZU354,554..6FC201105-201106

sub36610-37461

36611CASE, POWER TAKE-OFF

main36611-37290iXZU304..IV7200610-200804

sub36611-37291

main36611-37291iXZU304..IV7200804

sub36611-E0060

mainSU00200753iXZU368,378,388,568..(T3,T4)..(CBU,IV3)200610

subSU002-01096

mainSU00200758iXZU30#,33#,34#..(DM6,T3,T4,T5)..6F..(CBU,IV3)201003

subSU002-01101

mainSU00200763iXZU314,324,354,368,524,554,568..(DM5,DM7)..5F200610

mainSU00200776iXZU378..DCRTK..IV3200610

subSU002-01100

mainSU00200779iXZU304..DCRUE..IV6;XZU304..T5..30T..DCRUE;XZU304..(DM6,T4)..6F..IV3201003

subSU002-01102

mainSU00201037iXZU304,314,324..(DM3,DM5,DM7)..6F201003

36611ABOLT, STUD (FOR POWER TAKE-OFF CASE)

main90116-10213iXZU30#,33#,34#,354,508,538,548,554..(DCB,SCB)..6FC..DCRTJ200610-201106

36633AGASKET, POWER TAKE-OFF COVER

main36633-37050iXZU30#,33#,34#,354,508,538,548,554..(DCB,SCB)..6FC..DCRTJ200610-201106

36851RETAINER, POWER TAKE-OFF JOINT

main36851-37010iBZU300,340;TRU300..DM5200705

main36851-37020iXZU334..T3..5F..30T..IV3200610

main36851-37030iXZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)200610

mainSU00200798iXZU368,378,388,568..(T3,T4)..(CBU,IV3);XZU30#,33#,34#..(DM6,T3,T4,T5)..6F..(CBU,IV3)200610

subSU002-00898

36851CFLANGE, POWER TAKE-OFF OUTPUT SHAFT

main36851-37040iXZU30#,33#,34#,508,538,548..(DCB,SCB)..6FC..DCRTJ201105-201106

3292637010CUSHION, OIL COOLER TUBE(ATM)

main32926-37010

9017010018

main90170-10018

9020115044

main90201-15044

9021414014

main90214-14014

9028007005

main90280-07005

9031125036

main90311-25036

9031125037

main90311-25037

9040414032

main90404-14032

9040714035

main90407-14035

9046210082

main90462-10082

9155180612

main91551-80612

9155180816

main91551-80816

9412541400

main94125-41400

9453101000

main94531-01000

26 parts on this diagram · 16 diagrams in section
