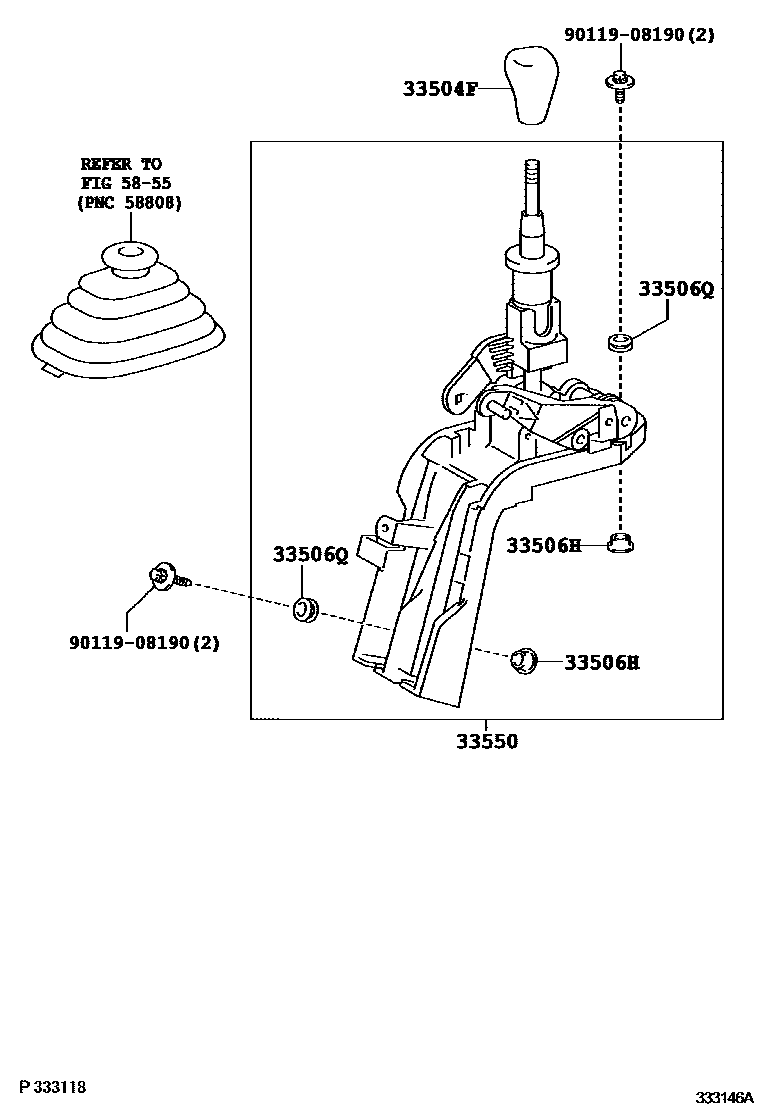

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36051-B1iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..5F200610-201106

DK.CHARCOAL,TRIM1#

sub33504-36051

main33504-37060-B0iXZU30#,314,324,33#,34#..6F201003-201106

DK.CHARCOAL,TRIM1#

33506HBUSH (FOR SHIFT LEVER RETAINER)

main33546-37010iXZU378,388..DCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..MTM200610-201106

main90386-12056iXZU368,378,388,568..SCB200610-201106

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main33577-37060iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610-201106

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-37230-B0iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

MD.CHARCOAL,TRIM1#

main33550-37250-B0iXZU378,388..DCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..5F200610-201106

DK.CHARCOAL,TRIM1#

main33550-37270-B0iXZU30#,314,324,33#,34#..6F201003-201106

DK.CHARCOAL,TRIM1#

5855

9011908190

main90119-08190

6 parts on this diagram · 13 diagrams in section
