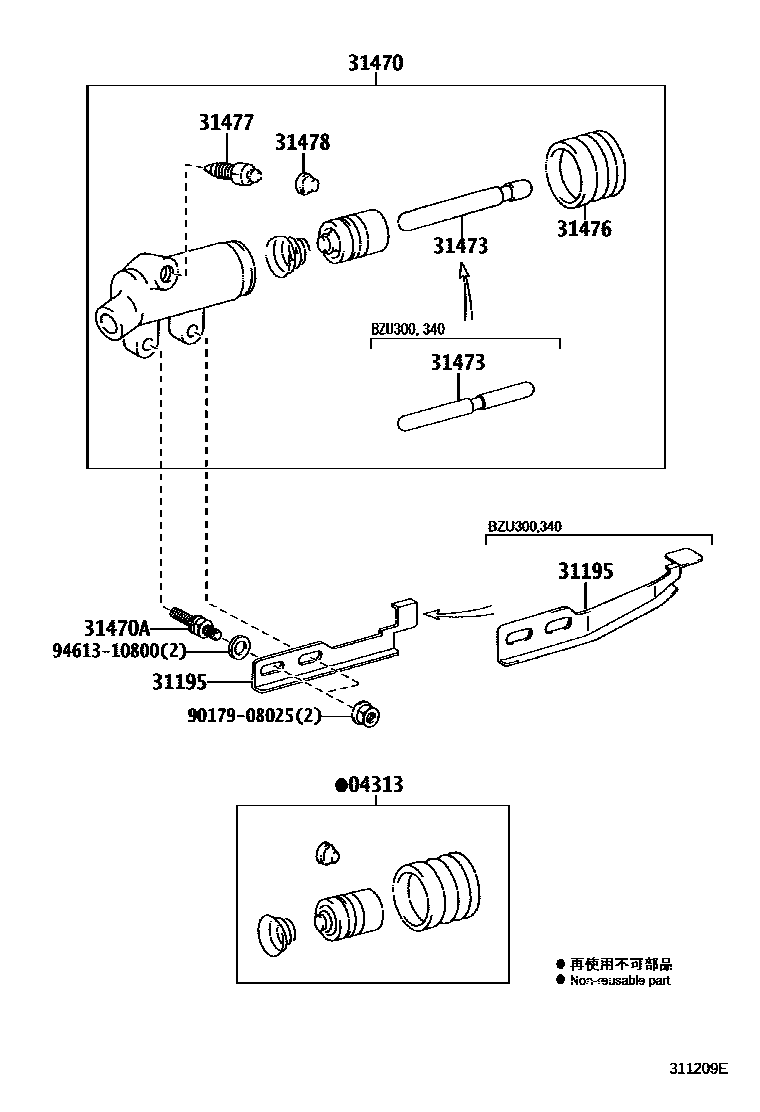

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37030iBZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

main04313-53010iTRU300,340,500200705

31195PLATE, CLUTCH DISC WEAR INDICATOR

main31195-37060iTRU300,340,500200705

main31195-37070iBZU300,340200705

main31195-37110iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36311iTRU300,340,500200705-201106

main31470-37050iBZU300,340200705-201106

main31470-37080iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610-201106

sub31470-37081

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610-201106

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-35050iTRU300,340,500200705

main31473-37030iBZU300,340200705

main31473-37050iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

9017908025

main90179-08025

9461310800

main94613-10800

10 parts on this diagram · 2 diagrams in section
