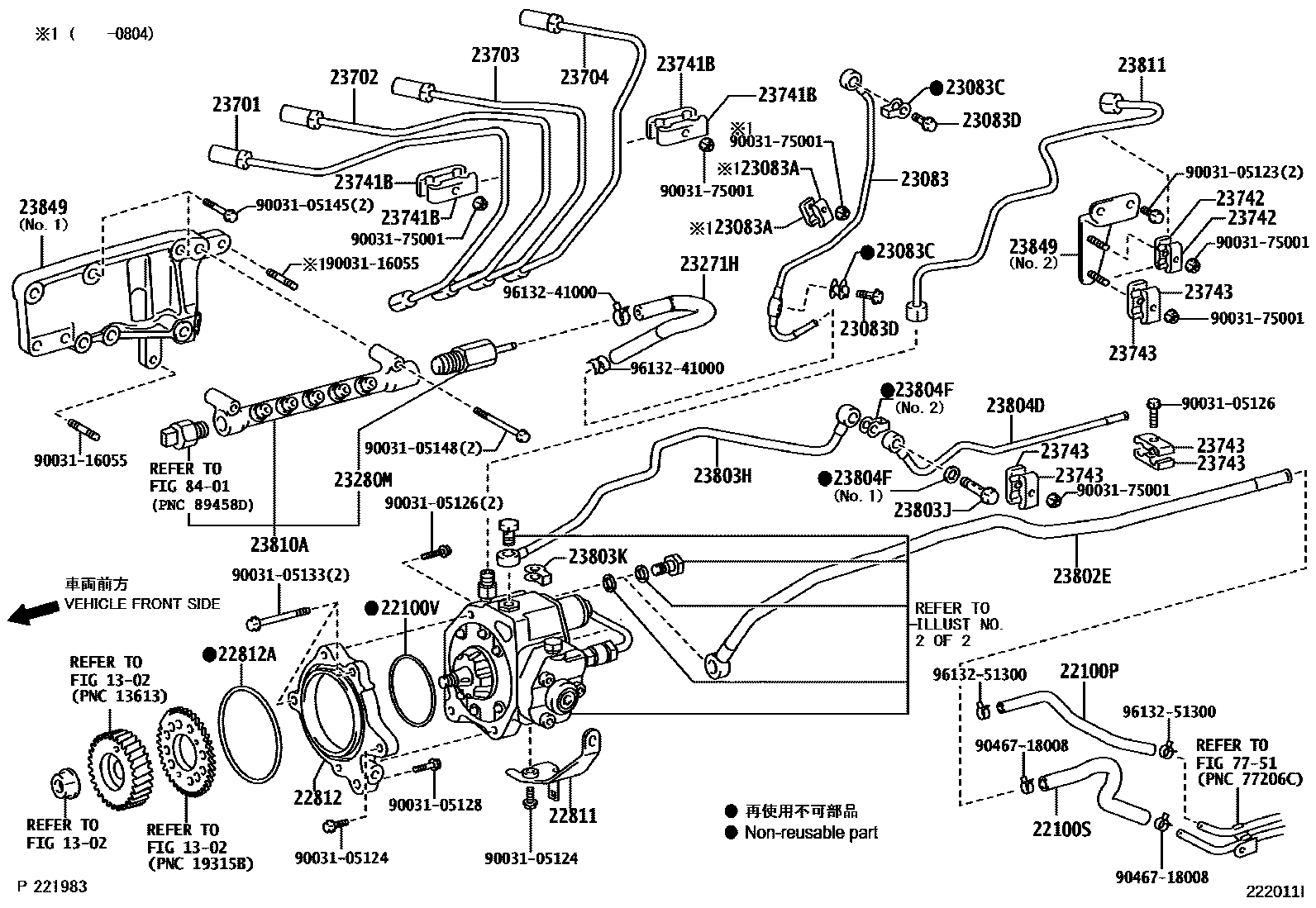

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1

1302

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-78230iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK200610-200708

sub22100-78231

main22100-78231iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK200708-200709

sub22100-78232

main22100-78232iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE200709-200803

sub22100-78233

main22100-78233iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE200803-200805

sub22100-78234

main22100-78234iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE200805-200905

sub22100-78235

main22100-78235iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE200905-200909

sub22100-78236

main22100-78236iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE200909-200912

sub22100-78237

main22100-78237iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE200912-201106

sub22100-E0067

main22100-78260iN04C..XZU30#,348..DCRTM200705-200708

sub22100-78261

main22100-78261iN04C..XZU30#,348..DCRTM200708-200709

sub22100-78262

main22100-78262iN04C..XZU30#,348..DCRTM200709-200803

sub22100-78263

main22100-78263iN04C..XZU30#,348..DCRTM200803-200805

sub22100-78264

main22100-78264iN04C..XZU30#,348..DCRTM200805-200905

sub22100-78265

main22100-78265iN04C..XZU30#,348..DCRTM200905-200909

sub22100-78266

main22100-78266iN04C..XZU30#,348..DCRTM200909-200912

sub22100-78267

main22100-78267iN04C..XZU30#,348..DCRTM200912-201106

22100PHOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)

main23273-78340iN04C..XZU368,568;N04C..XZU344..35T;N04C..XZU304..30T..4NO;N04C..XZU304..SCB..(DM3,DM6,T3);N04C..XZU334,354,378,388..(CBU,IV3,IV6)..1NO200610

main23273-78350iN04C..XZU304..(T4,T5)..20T;N04C..XZU308,338,34#,50#,538,548..20T,30T200610

main23273-78400iN04C..XZU304,334,378..IV4200610

main23273-78420iN04C..XZU314,324,354,524,554..4NO200610

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23271-78350iN04C..XZU314,324,354,524,554..4NO200610

main23271-78360iN04C..XZU304..(T4,T5)..20T;N04C..XZU308,338,34#,50#,538,548..20T,30T200610

main23271-78390iN04C..XZU304,334..IV4200610

main23271-78460iN04C..XZU368,568;N04C..XZU344..35T;N04C..XZU304..30T..4NO;N04C..XZU304..SCB..(DM3,DM6,T3);N04C..XZU334,354,378,388..(CBU,IV3,IV6)..1NO200610

main95332-12026iN04C..XZU378..IV4200610

sub95337-12026

22100VRING, O(FOR INJECTION PUMP)

main90033-01075iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

22811STAY, INJECTION PUMP, NO.1

main82702-37350iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

sub82702-E0P50

22812RETAINER, INJECTION PUMP

main22811-78110iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

subS2251-22060

22812ARING, O

main90033-01076iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

23083PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3

main23816-78010iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201011

sub23816-E0011

main23816-E0011iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568201011

sub23816-E0012

23083ACLAMP, NOZZLE LEAKAGE

main90034-68024iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200804

23083CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90032-09020iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

23083DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90034-01009iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200805

sub90034-01019

main90034-01019iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200805

sub21811-E0060

23271HHOSE, FUEL, NO.1

main23271-78430iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

subSZ920-31083

23280MLIMITTER ASSY, FUEL PRESSURE

main23280-E0010iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200910

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-78131iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201101

sub23701-E0012

main23701-E0012iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568201101

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-78131iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201101

sub23702-E0012

main23702-E0012iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568201101

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-78121iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201101

sub23703-E0012

main23703-E0012iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568201101

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-78121iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201101

sub23704-E0012

main23704-E0012iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568201101

23741BCLAMP, INJECTION PIPE

main23742-66020iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

23742CLAMP, INJECTION PIPE, NO.2

main23742-66020iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

23743CLAMP, INJECTION PIPE, NO.3

main90034-68033iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

subS7990-44090

23802EPIPE SUB-ASSY, FUEL

main23811-78191iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6200610

sub23811-E0041

main23811-78211iN04C..XZU304,334,378..IV4,IV7200610

sub23811-E0061

23803HPIPE SUB-ASSY, FUEL RETURN

main23816-78020iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

sub23816-E0020

23803JBOLT, UNION(FOR FUEL RETURN PIPE)

main90401-10017iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

subSZ401-10009

23803KGASKET(FOR FUEL RETURN PIPE)

main90032-09021iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

23804DPIPE SUB-ASSY, FUEL, NO.4

main23816-78030iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6200610

sub23816-E0110

main23816-78050iN04C..XZU304,334,378..IV4,IV7200610

sub23816-E0130

23804FGASKET(FOR FUEL PIPE NO.4)

main90032-09021iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main90202-10011iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

23810ARAIL ASSY, COMMON

main23810-78040iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200910

sub23810-78041

main23810-78041iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200910

sub23810-E0011

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23801-78040iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201101

sub23801-E0021

main23801-E0021iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568201101

23849SUPPORT, FUEL

main23849-78150iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

sub23849-E0010

main23849-78160iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

sub23849-E0020

7751

8401

9003105123

main90031-05123

9003105124

main90031-05124

9003105126

main90031-05126

9003105128

main90031-05128

9003105133

main90031-05133

9003105145

main90031-05145

9003105148

main90031-05148

9003116055

main90031-16055

9003175001

main90031-75001

9046718008

main90467-18008

9613241000

main96132-41000

9613251300

main96132-51300

44 parts on this diagram · 3 diagrams in section
