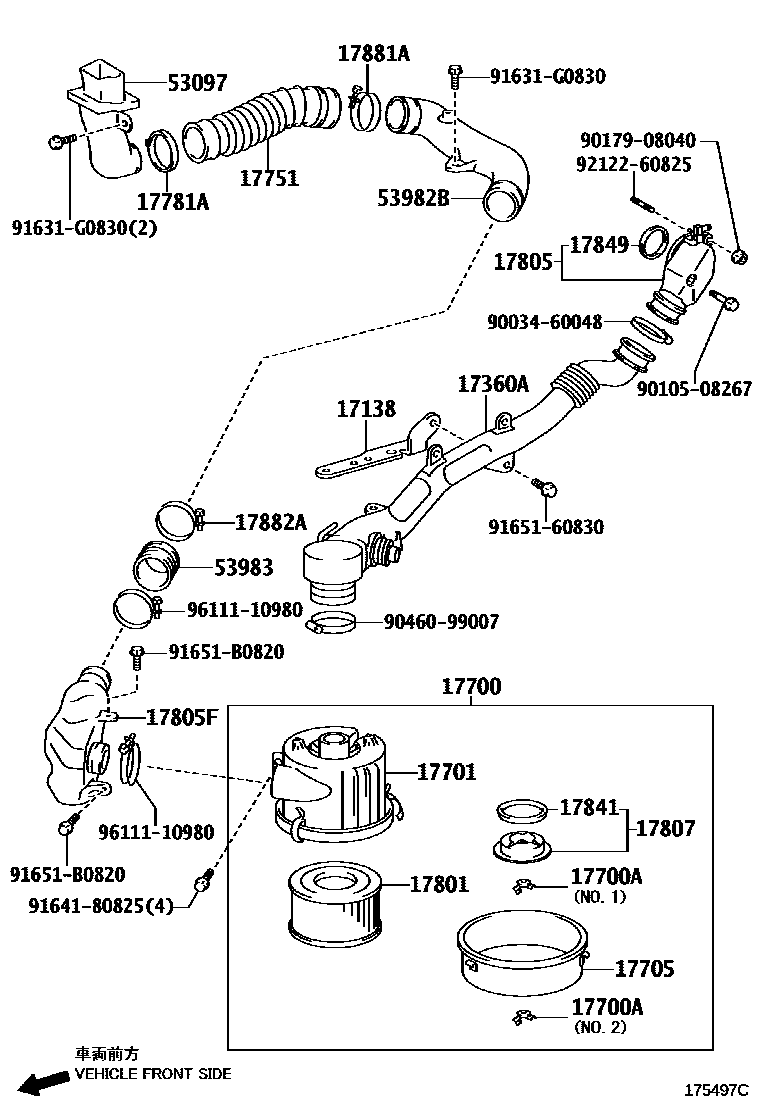

AIR CLEANER

0001 1 0002 1 0003 1

17138STAY, INTAKE PIPE OR HOSE

main17138-58030i1BZFPE..BZU300,340200705

main17138-78010i2TRFE..TRU300,340,500200705

main17138-78020iN04C..XZU304,334,344,354,504..DM3,DM6,T3,T4,T5200610

main17138-78040iN04C..XZU368,378,388,568200610

main17138-78100iN04C..XZU314,324,354,524,554..4NO200610

main17138-78170iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main17138-78180iN04C..XZU308,338,348,508,538,548200610

main17138-78210i2TRFE..TRU300,340,500200705

17360ATUBE ASSY, AIR

main17360-58021i1BZFPE..BZU300,340200705

17700CLEANER ASSY, AIR

main17700-78170i1BZFPE..BZU300,340200705

sub17700-78171

main17700-78190iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main17700-78350i2TRFE..TRU300,340,500200705

sub17700-78351

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i2TRFE..TRU300,340,500200705

main90175-08008i2TRFE..TRU300,340,500200705

17701CASE SUB-ASSY, AIR CLEANER

main17701-78140i1BZFPE..BZU300,340200705

sub17701-78141

main17701-78150iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main17701-78300i2TRFE..TRU300,340,500200705

17705CAP SUB-ASSY, AIR CLEANER

main17705-78030i2TRFE..TRU300,340,500200705

main17705-78040iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

17751INLET, AIR CLEANER, NO.1

main53981-37080iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

17781ACLAMP, HOSE

main17781-78050iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56050i2TRFE..TRU300,340,500200705

main17801-78040iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-48060i1BZFPE..BZU300,340200705

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-78021iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56020i2TRFE..TRU300,340,500200705

17841GASKET, FILTER ELEMENT

main17841-44030i2TRFE..TRU300,340,500200705

17849GASKET, INTAKE AIR CONNECTOR

main17849-70030i1BZFPE..BZU300,340200705

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880i2TRFE..TRU300,340,500200705

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10980i2TRFE..TRU300,340,500200705

53097INLET SUB-ASSY

main53097-37300iTRU300,340,500200705

53982BINLET, AIR CLEANER PIPE, NO.2

main53982-37070iXZU378,388..SCB;XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568200610

main53982-37090iXZU378,388..DCB200610

53983INLET, AIR CLEANER PIPE, NO.3

main53983-37020iTRU300,340,500200705

9003460048

main90034-60048

9010508267

main90105-08267

9017908040

main90179-08040

9046099007

main90460-99007

91631G0830

main91631-G0830

9164180825

main91641-80825

9165160830

main91651-60830

91651B0820

main91651-B0820

9212260825

main92122-60825

9611110980

main96111-10980

29 parts on this diagram · 3 diagrams in section
