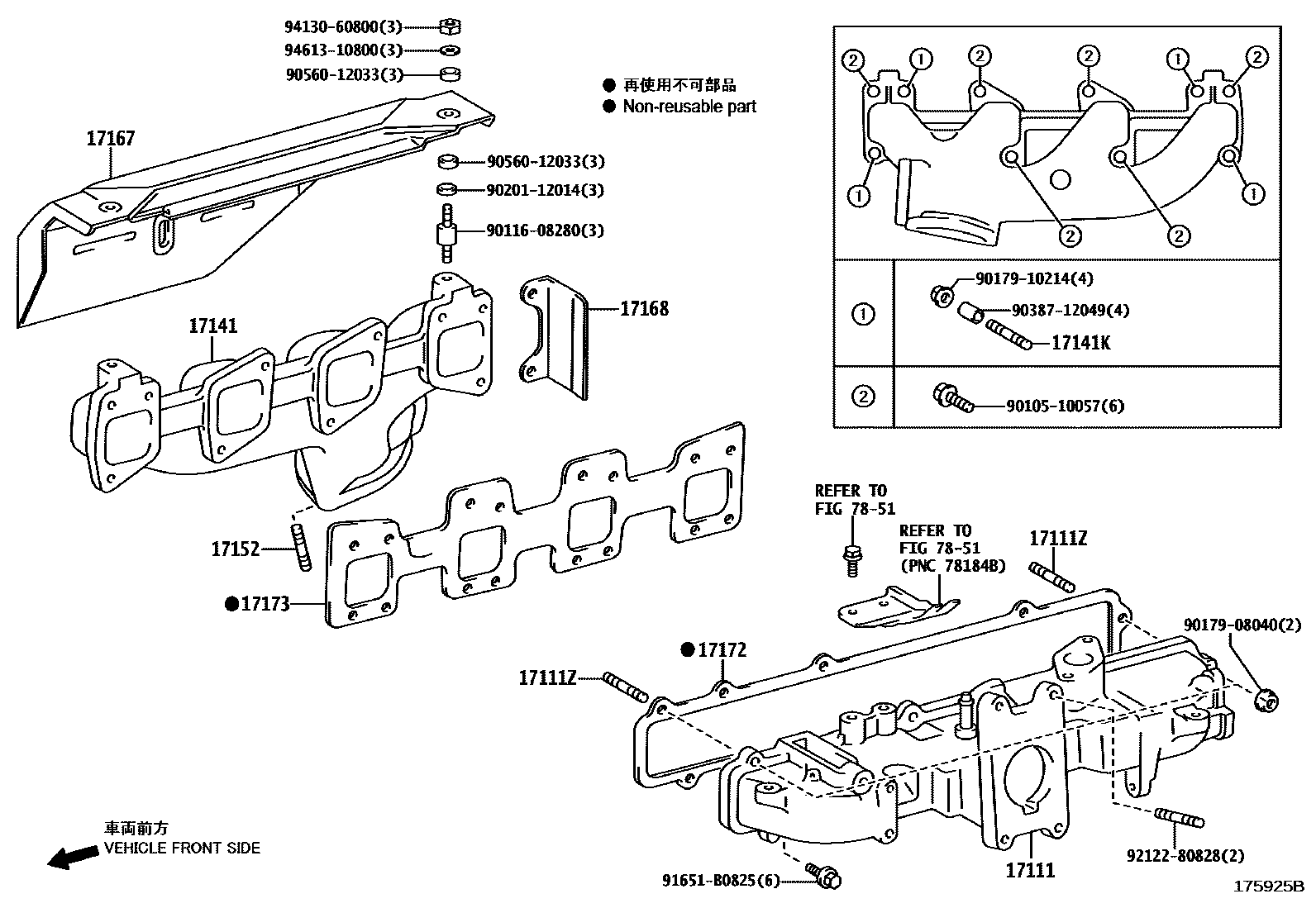

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17111MANIFOLD, INTAKE

main17101-48011i1BZFPE..BZU300,340200705

main17111-78050iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

sub17111-E0210

main17120-0C020i2TRFE..TRU300,340,500200705

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026i2TRFE..TRU300,340,500200705

main92132-60820i1BZFPE..BZU300,340200705

17141MANIFOLD, EXHAUST

main17141-58031i1BZFPE..BZU300,340200705

main17141-75101i2TRFE..TRU300,340,500200705

main17141-78081iN04C..XZU368,378,388,568200610-201106

main17141-78090iN04C..XZU30#,348..DCRTM200705-201005

sub17141-E0370

main17141-78100iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE200610-201106

subS1714-16411

main17141-E0370iN04C..XZU30#,348..DCRTM201005-201106

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90116-10198i1BZFPE..BZU300,340200705

main90126-08052i2TRFE..TRU300,340,500200705

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90031-16091iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main90126-10006i1BZFPE..BZU300,340200705

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-58040i1BZFPE..BZU300,340200705

main17167-75170i2TRFE..TRU300,340,500200705

sub17167-75171

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-58050i1BZFPE..BZU300,340200705

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17171-58010i1BZFPE..BZU300,340200705

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-58030i1BZFPE..BZU300,340200705

main17173-75030i2TRFE..TRU300,340,500200705

main17173-78040iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

subS1710-41880

7851

9010510057

main90105-10057

9011608280

main90116-08280

9017908040

main90179-08040

9017910214

main90179-10214

9020112014

main90201-12014

9038712049

main90387-12049

9056012033

main90560-12033

91651B0825

main91651-B0825

9212280828

main92122-80828

9413060800

main94130-60800

9461310800

main94613-10800

21 parts on this diagram · 6 diagrams in section
