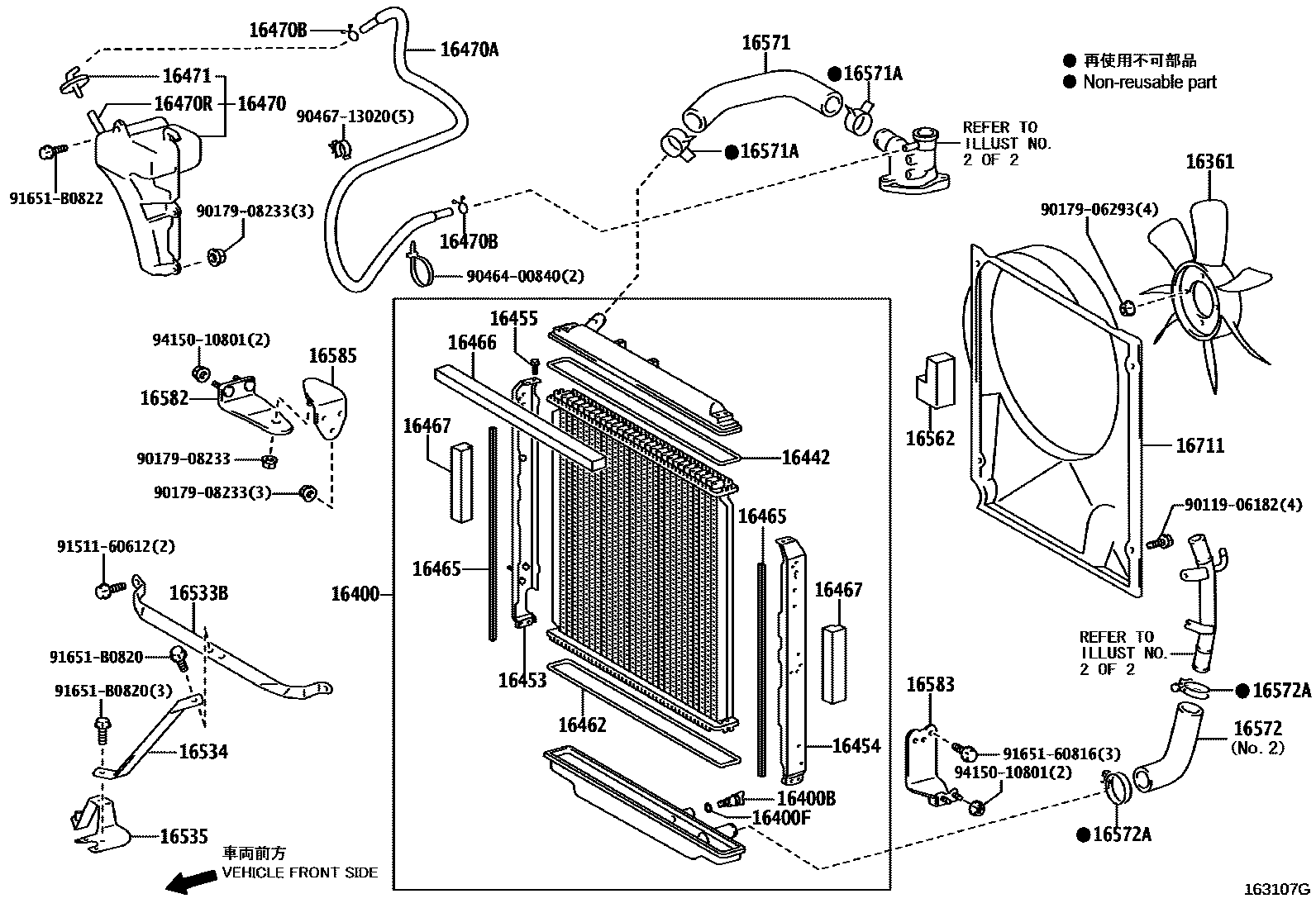

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

16361FAN

main16361-41070i2TRFE..TRU300,340,500200705-201009

sub16361-41071

main16361-41071i2TRFE..TRU300,340,500201010

main16361-56070i1BZFPE..BZU300,340200705

main16361-78100iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main16361-78120iN04C..XZU30#,33#,34#,368,378,388,50#,538,548,568..SCB..(T2,T3,T4,T5)..IV3200708

16400RADIATOR ASSY

main16400-78550iN04C..XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200610-200907

sub16400-78551

sub16575-78041

sub90467-13073

sub90467-15022

main16400-78551iN04C..XZU30#,314,334,34#,354..SCB..(DCRTK,DCRTM)200907

sub16400-78552

main16400-78630i1BZFPE..BZU300,340200705

main16400-78640i2TRFE..TRU300,340,500200705

sub16400-75590

main16400-78650iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..5F..(DCRTH,DCRTJ,DCRUD,DCRUE)200610-200907

sub16400-78651

sub16575-78041

sub90467-13073

sub90467-15022

main16400-78651iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..MTM..(DCRTH,DCRTJ,DCRUD,DCRUE)200907

sub16400-78652

main16400-78660iN04C..XZU30#,33#,34#,354,50#,538,548,554..6FC..(DCRTH,DCRTJ)200610-200907

sub16400-78661

sub16575-78041

sub90467-13073

sub90467-15022

main16400-78661iN04C..XZU30#,33#,34#,354,50#,538,548,554..6FC..(DCRTH,DCRTJ)200907

sub16400-78662

main16400-78670iN04C..XZU304,334..5F..IV4200610-200907

sub16400-78671

sub16575-78041

sub90467-13073

sub90467-15022

main16400-78671iN04C..XZU304,334..5F..IV4200907

sub16400-78672

main16400-78680iN04C..XZU304,334..6FC..IV4200610-200907

sub16400-78681

sub16575-78041

sub90467-13073

sub90467-15022

main16400-78681iN04C..XZU304,334..6FC..IV4200907

sub16400-78682

main16400-78690iN04C..XZU368,378,388,568..DCRTJ200610-200907

sub16400-78691

sub16575-78122

sub90467-13073

sub90467-15022

main16400-78691iN04C..XZU368,378,388,568..DCRTJ200907

sub16400-78692

main16400-78700iN04C..XZU368,378,388..SCB..DCRTK200610-200907

sub16400-78701

sub16575-78122

sub90467-13073

sub90467-15022

main16400-78701iN04C..XZU368,378,388..SCB..DCRTK200907

sub16400-78702

main16400-78710iN04C..XZU378..IV4200610-200907

sub16400-78711

sub16575-78122

sub90467-13073

sub90467-15022

main16400-78711iN04C..XZU378..IV4200907

sub16400-78712

16400BPLUG, RADIATOR DRAIN COCK

main16417-15210iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

16442RING, O(FOR RADIATOR UPPER TANK)

main16442-78080iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

16453PLATE, RADIATOR SIDE

main16453-78550iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main16453-78630i1BZFPE..BZU300,340200705

main16453-78640i2TRFE..TRU300,340,500200705-201106

16454PLATE, RADIATOR SIDE

main16454-78550i1BZFPE..BZU300,340200610

main16454-78640i2TRFE..TRU300,340,500200705-201106

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main16455-61160i1BZFPE..BZU300,340200705-201106

main16455-67020iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

16462RING, O(FOR RADIATOR LOWER TANK)

main16442-78080i1BZFPE..BZU300,340200610-201106

16465PACKING, RADIATOR

main16465-78080i2TRFE..TRU300,340,500200610-201106

16466SEAL, RADIATOR

main16466-78160i2TRFE..TRU300,340,500200705-201106

16467SIDE SEAL

main16467-78520i2TRFE..TRU300,340,500200705-201106

16470TANK ASSY, RADIATOR RESERVE

main16470-78010i1BZFPE..BZU300,340200610

main16470-78020iN04C..XZU304,334,378..IV4200610

main16470-78030iN04C..XZU308,348,378,388,508..(DCB,VAN)..20T200610

main16470-78040iN04C..XZU304,334,378..IV4200610

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16567-78110iN04C..XZU308,348,378,388,508..(DCB,VAN)..20T200610

main16567-78200iN04C..XZU304,334..IV4200610

sub16567-78570

main16567-78260iN04C..XZU304,334..IV4200610

sub16567-78580

main16567-78400i1BZFPE..BZU300,340200705

sub16567-78570

main16567-78510iN04C..XZU368,378,388,568..SCB200610

sub16567-78570

main16567-78530iN04C..XZU378..IV4200610

sub16567-78580

main16567-78540iN04C..XZU378..IV4200610

sub16567-78570

main16567-78570iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB200610

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085iN04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB;N04C..XZU304,314,324,33#,344,354,368,50#,524,538,548,554,568..DCB,SCB200610

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078iN04C..XZU304,334,378..IV4200610

16471CAP SUB-ASSY, RESERVE TANK

main16405-78010i1BZFPE..BZU300,340200610

main16405-78020iN04C..XZU304,334,378..IV4200610

main16405-78030iN04C..XZU308,348,378,388,508..(DCB,VAN)..20T200610

main16405-78040iN04C..XZU304,334,378..IV4200610

16533BSUPPORT, RADIATOR, NO.1

main16533-78100i1BZFPE..BZU300,340200610

16534SUPPORT, RADIATOR, NO.2

main16534-78060iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

sub16534-78130

16535SUPPORT, RADIATOR, LOWER

main16535-78080i1BZFPE..BZU300,340200705-200807

sub16535-78081

main16535-78081i1BZFPE..BZU300,340200808

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-58010i1BZFPE..BZU300,340200705-201106

16571HOSE, RADIATOR, INLET

main16571-58161i1BZFPE..BZU300,340200705

main16571-78120iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554200610

sub16571-78351

main16571-78141iN04C..XZU368,378,388,568200610

main16571-78250i2TRFE..TRU300,340,500200705

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main16581-75020i2TRFE..TRU300,340,500200705

main16581-78140i1BZFPE..BZU300,340200610-200807

sub16581-78190

main16581-78190i1BZFPE..BZU300,340200807-201006

sub16581-78191

main16581-78191i1BZFPE..BZU300,340201007

16572HOSE, RADIATOR, OUTLET

main16572-56091i1BZFPE..BZU300,340200705

main16572-58171i1BZFPE..BZU300,340200705

main16572-78160iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..CBU,IV3,IV6,IV7200610

sub16572-78162

main16572-78190iN04C..XZU368,378,388,568..CBU,IV3200610

sub16572-78191

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main16581-78140iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7200610-200807

sub16581-78190

main16581-78190i1BZFPE..BZU300,340200807-201006

sub16581-78191

main16581-78191i1BZFPE..BZU300,340201007

16582BRACKET, RADIATOR, NO.1

main16582-78060i1BZFPE..BZU300,340200610

main16582-78080iN04C..XZU304..(T4,T5)..20T;N04C..XZU308,338,34#,50#,538,548..20T,30T200610

16583BRACKET, RADIATOR, NO.2

main16583-78061iN04C..XZU344..35T;N04C..XZU304..30T..4NO;N04C..XZU304..DM3,DM6,T3;N04C..XZU314,324,334,354,368,378,388,524,554,568200610

main16583-78080iN04C..XZU304..(T4,T5)..20T;N04C..XZU308,338,34#,50#,538,548..20T,30T200610

16585BRACKET, RADIATOR, NO.3

main16585-78060iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

16711SHROUD, FAN

main16711-58290i1BZFPE..BZU300,340200705

main16711-75181i2TRFE..TRU300,340,500200705

main16711-78100iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-201011

sub16711-78280

main16711-78110iN04C..XZU368,378,388,568200610-201011

sub16711-78290

main16711-78280iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554201012

main16711-78290iN04C..XZU368,378,388,568201012

sub16711-78340

9011906182

main90119-06182

9017906293

main90179-06293

9017908233

main90179-08233

9046400840

main90464-00840

9046713020

main90467-13020

9151160612

main91511-60612

9165160816

main91651-60816

91651B0820

main91651-B0820

91651B0822

main91651-B0822

9415010801

main94150-10801

39 parts on this diagram · 13 diagrams in section
