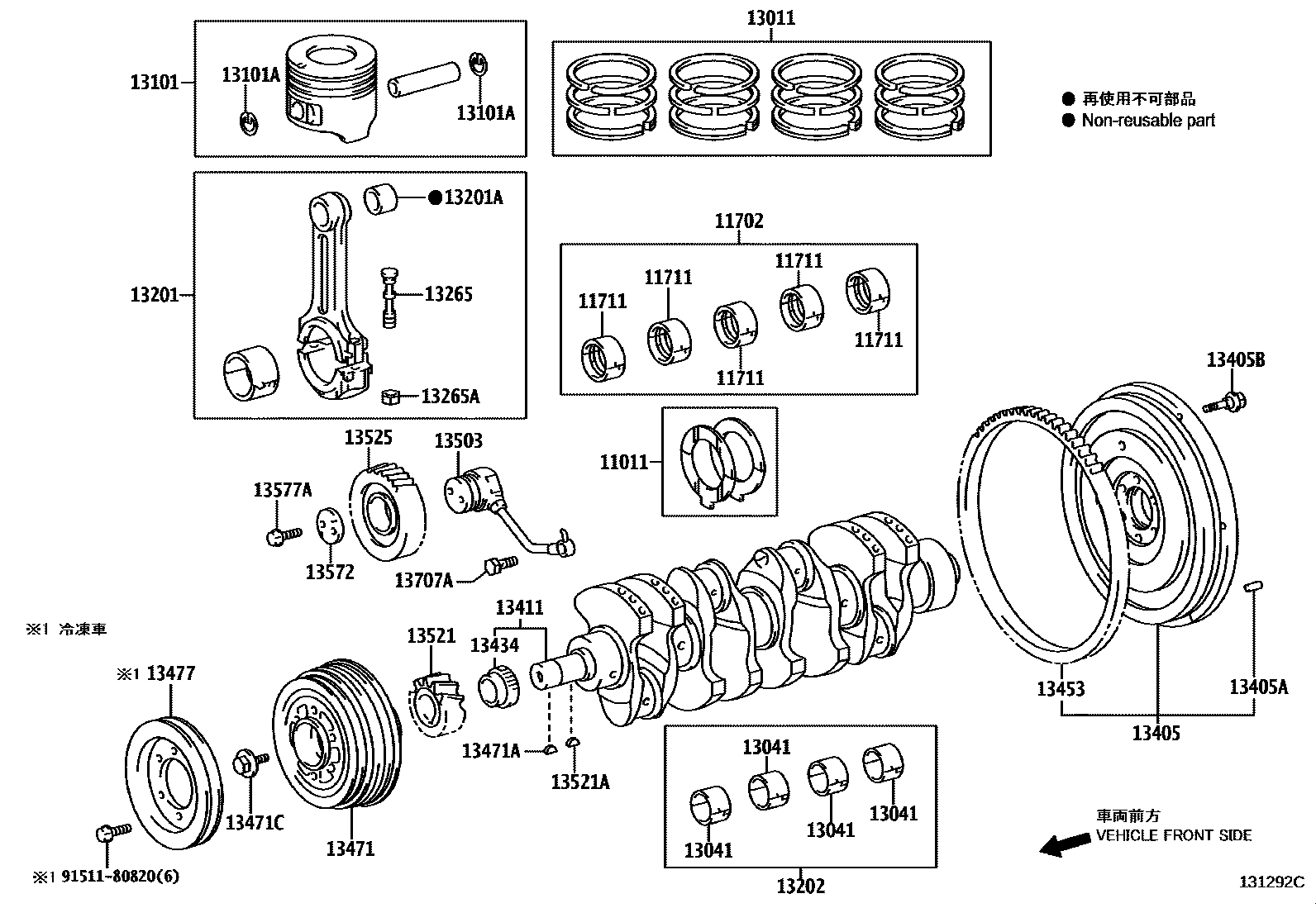

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-56020i1BZFPE..BZU300,340200705

sub11011-58020

main11011-75020i2TRFE..TRU300,340,500200705

main11011-78010iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

subS1101-11240

main11012-56020i1BZFPE..BZU300,340200705

sub11012-58020

main11013-56020i1BZFPE..BZU300,340200705

sub11013-58020

11702BEARING SET, CRANKSHAFT

main11701-78100iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

subS1170-12420

main11704-56032i1BZFPE..BZU300,340200705

sub11704-58010

main11704-75031i2TRFE..TRU300,340,500200705-201106

sub11704-75032

main11705-56032i1BZFPE..BZU300,340200705

sub11705-58010

main11707-56032i1BZFPE..BZU300,340200705

sub11707-58010

main11708-78010iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

subS1170-32070

main11708-78020iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

subS1170-42100

main11708-78030iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

subS1170-52020

main11708-78040iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

subS1170-62040

11711BEARING, CRANKSHAFT

main11701-56022-01i1BZFPE..BZU300,340200705

sub11701-58010

main11701-56022-02i1BZFPE..BZU300,340200705

sub11701-58010

main11701-75031-01i2TRFE..TRU300,340,500200705

MARK1

sub11701-75032

main11701-75031-02i2TRFE..TRU300,340,500200705

MARK2

sub11701-75032

main11701-75031-03i2TRFE..TRU300,340,500200705

MARK3

sub11701-75032

13011RING SET, PISTON

main13011-48040i1BZFPE..BZU300,340200705

main13011-75110i2TRFE..TRU300,340,500200705-201106

main13011-78230iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

subS1304-E0020

main13013-48040i1BZFPE..BZU300,340200705

main13013-75110i2TRFE..TRU300,340,500200705-201106

main13014-48040i1BZFPE..BZU300,340200705

main13015-48040i1BZFPE..BZU300,340200705

13041BEARING, CONNECTING ROD

main13041-58032-01i1BZFPE..BZU300,340200705

sub13041-58050

main13041-58032-02i1BZFPE..BZU300,340200705

sub13041-58050

main13041-75050-04i2TRFE..TRU300,340,500200705

MARK4

sub13041-75052

main13041-75050-05i2TRFE..TRU300,340,500200705

MARK5

sub13041-75052

main13041-75050-06i2TRFE..TRU300,340,500200705

MARK6

sub13041-75052

main13041-78060iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

subS1320-11960

13101PISTON SUB-ASSY, W/PIN

main13101-48021-01i1BZFPE..BZU300,340200705

main13101-48021-02i1BZFPE..BZU300,340200705

main13101-48021-03i1BZFPE..BZU300,340200705

main13101-75130i2TRFE..TRU300,340,500200705-201106

main13103-48021i1BZFPE..BZU300,340200705

main13103-75130i2TRFE..TRU300,340,500200705-201106

main13104-48021i1BZFPE..BZU300,340200705

main13105-48021i1BZFPE..BZU300,340200705-200801

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90035-21020iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main90520-22025i2TRFE..TRU300,340,500200705

main90521-37007i1BZFPE..BZU300,340200705

13201ROD SUB-ASSY, CONNECTING

main13201-49055i1BZFPE..BZU300,340200705

sub13201-49056

main13201-78030iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

sub13260-E0050

main13201-79576i2TRFE..TRU300,340,500200705-201106

sub13201-79577

13201ABUSH(FOR CONNECTING ROD SMALL END)

main13271-89102iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

subS1327-21400

main90999-73134i1BZFPE..BZU300,340200705

main90999-73144i2TRFE..TRU300,340,500200705-201106

13202BEARING SET, CONNECTING ROD

main13204-58032i1BZFPE..BZU300,340200705

sub13204-58050

main13204-75050i2TRFE..TRU300,340,500200705-201106

sub13204-75052

main13205-58032i1BZFPE..BZU300,340200705

sub13205-58050

main13207-58032i1BZFPE..BZU300,340200705

sub13207-58050

13265BOLT, CONNECTING ROD

main13265-28010i2TRFE..TRU300,340,500200705

sub13265-28020

main13265-58020i1BZFPE..BZU300,340200705

main13265-89103iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main13266-58010i1BZFPE..BZU300,340200705

13405FLYWHEEL SUB-ASSY

main13405-58070i1BZFPE..BZU300,340200705

main13405-75060i2TRFE..TRU300,340,500200705

main13450-78061iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..5F..(CBU,IV3,IV6,IV7)200610-200901

sub13450-78062

main13450-78062iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM..(CBU,IV3,IV6,IV7)200901-201008

sub13450-E0D51

main13450-78080iN04C..XZU30#,33#,34#,354,50#,538,548,554..6FC200610-200901

sub13450-78081

main13450-78081iN04C..XZU30#,33#,34#,354,50#,538,548,554..6FC200901-201106

sub13450-E0F00

main13450-78090iN04C..XZU304,334,378..5F..IV4200610-200901

sub13450-78091

main13450-78091iN04C..XZU304,334,378..5F..IV4200901-201008

sub13450-E0021

main13450-78120iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM..(CBU,IV3,IV6,IV7)201008-201106

sub13450-E0L50

main13450-78170iN04C..XZU304,334,378..5F..IV4201008-201106

sub13450-E0L60

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i2TRFE..TRU300,340,500200705

main90250-10008iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

main90250-10192i1BZFPE..BZU300,340200705

13405BBOLT, FLYWHEEL SETTING

main90031-05112iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM..(CBU,IV3,IV6)200610-201106

main90031-05118iN04C..XZU304,334,378..5F..(IV4,IV7)200610-201106

subS1345-51840

main90031-05119iN04C..XZU304,334..6FC..IV4200610-201106

subS1345-51850

main90031-09050iN04C..XZU30#,33#,34#,354,50#,538,548,554..6FC..(DCRTH,DCRTJ)200610-201106

main90910-02116i2TRFE..TRU300,340,500200705

main90913-01015i1BZFPE..BZU300,340200705

13411CRANKSHAFT

main13400-78080iN04C..XZU504..DCRTJ,DCRUD;N04C..XZU304..5F..30T..IV6;N04C..XZU338,348,508..(03S,06S,T2)..5F;N04C..XZU308,504..T5..(DCRTH,DCRTK,DCRUE);N04C..XZU304,324..(DM6,DM7,T4)200610-201009

sub13411-E0180

subS1352-11660

subSM171-01028

subSZ910-29013

main13400-78150iN04C..XZU30#,33#,34#,354,50#,538,548,554..6FC201009-201106

sub13411-E0180

subS1352-11660

subSM171-01028

subSZ910-29013

main13401-58051i1BZFPE..BZU300,340200705

main13401-75020i2TRFE..TRU300,340,500200705

sub13401-75021

main13411-78081iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM201008-201106

13434SPLINE, OIL PUMP DRIVE

main13519-56011i1BZFPE..BZU300,340200705

13453GEAR, FLYWHEEL RING

main13453-17010i1BZFPE..BZU300,340200705

main13453-20010i2TRFE..TRU300,340,500200705

main13453-78020iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200901-201106

sub13453-E0080

main13453-89102iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200901

sub13453-78020

13471PULLEY, CRANKSHAFT

main13408-75050i2TRFE..TRU300,340,500200705

main13470-48010i1BZFPE..BZU300,340200705

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i2TRFE..TRU300,340,500200705

main95161-30416i1BZFPE..BZU300,340200705

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16041i2TRFE..TRU300,340,500200705

main90901-19032i1BZFPE..BZU300,340200705

13477PULLEY, CRANKSHAFT, NO.2

main88358-37010i1BZFPE..BZU300,340..(T3,T4)..IV3200705

13503SHAFT SUB-ASSY, IDLE GEAR

main13504-58010i1BZFPE..BZU300,340200705

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-56030i1BZFPE..BZU300,340200705

main13521-75020i2TRFE..TRU300,340,500200705

sub13521-75021

main13521-78090iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

subS1352-11660

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90032-81009iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM201008-201106

main90281-06001iN04C..XZU504..DCRTJ,DCRUD;N04C..XZU304..5F..30T..IV6;N04C..XZU338,348,508..(03S,06S,T2)..5F;N04C..XZU308,504..T5..(DCRTH,DCRTK,DCRUE);N04C..XZU304,324..(DM6,DM7,T4)200610-201009

main95161-30519i1BZFPE..BZU300,340200705

13525GEAR, IDLE, NO.1

main13520-48010i1BZFPE..BZU300,340200705

13572PLATE, IDLE GEAR THRUST

main13572-56020i1BZFPE..BZU300,340200705

13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)

main90105-10194i1BZFPE..BZU300,340200705

13707AUNION(FOR OIL PIPE, NO.1)

main90401-10026i1BZFPE..BZU300,340200705

9151180820

main91511-80820
