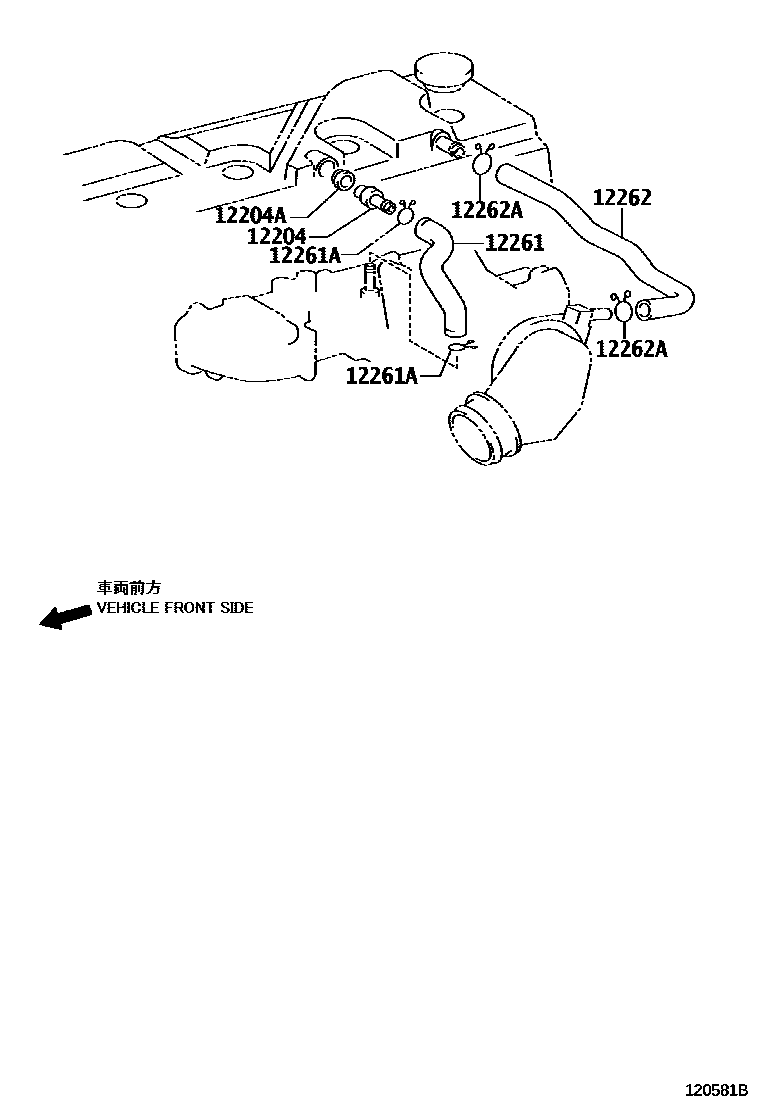

VENTILATION HOSE

0001 1 0002 1 0003 1

12204VALVE SUB-ASSY, VENTILATION

main12204-0C010i2TRFE..TRU300,340,500200705

main12204-15022i1BZFPE..BZU300,340200705

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i1BZFPE..BZU300,340200705

12261HOSE, VENTILATION

main12261-48020i1BZFPE..BZU300,340200705

main12261-75100i2TRFE..TRU300,340,500200705

main12261-78270iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554200610

sub12261-E0030

main12261-78280iN04C..XZU368,378,388,568200610

sub12261-E0040

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90034-67018iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

subSZ466-28001

main90467-14001i2TRFE..TRU300,340,500200705

main90467-28007iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

12262HOSE, VENTILATION, NO.2

main12262-48010i1BZFPE..BZU300,340200705

main12262-78010i2TRFE..TRU300,340,500200705

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-17126i1BZFPE..BZU300,340200705

main90467-21006i2TRFE..TRU300,340,500200705

main96134-42300i2TRFE..TRU300,340,500200705

6 parts on this diagram · 3 diagrams in section
